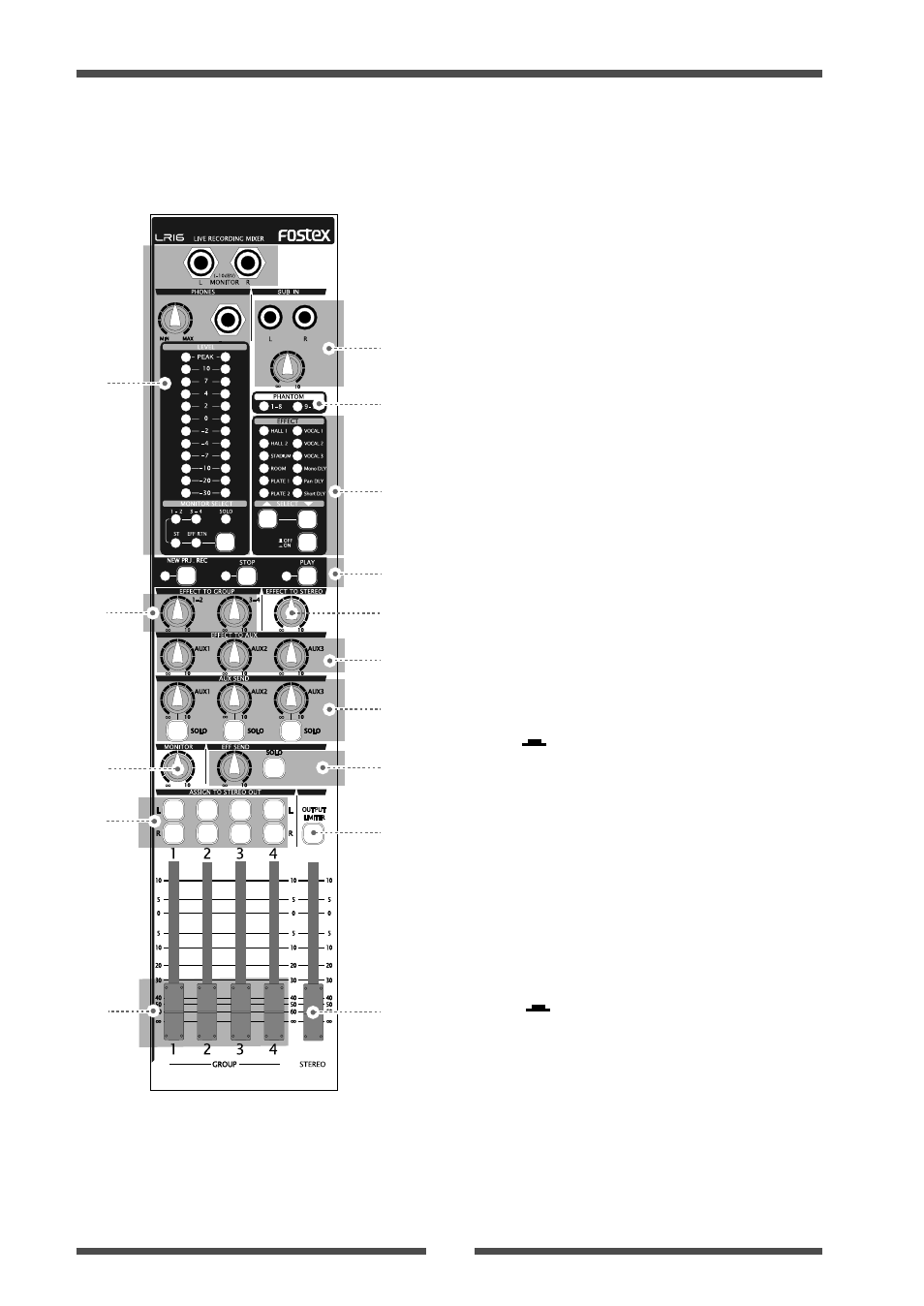

Model LR16 [Names and functions]

(22) [EFFECT TO GROUP] controls

Each control adjusts the output level from the
internal effects to the corresponding group buss pairs
(1-2 or 3-4).

(23) [EFFECT TO STEREO] control

Adjusts the output level from the internal effects to
the stereo busses.

(24) [EFFECT TO AUX (1, 2, 3)] controls

Each control adjusts the output level from the
internal effects to the corresponding AUX buss (1, 2
or 3).

(25) [AUX SEND] controls / [SOLO] switches

Each [AUX SEND] control adjusts the output level of
the corresponding AUX SEND (1, 2 or 3) output.
Each [SOLO] switch allows you to monitor the soloed
signal of the corresponding AUX SEND (1, 2 or 3)
output. When the switch is down, the solo function is
engaged. Each press of the switch toggles between
on and off.

(26) [MONITOR] control

Adjusts the output level of the [MONITOR (L/R)] and
[PHONES] jacks.
The output level of the [PHONES] jack is controlled
by the [PHONES] and [MONITOR] controls.

(27) [EFF SEND] control / [SOLO] switch

Adjusts the output level of the EFFECT SEND .
Each [SOLO] switch allows you to monitor the soloed
signal of the EFFECT SEND output. When the switch
is down (

), the solo function is engaged. Each press

of the switch toggles between on and off.

(28) [ASSIGN TO STEREO OUT] switches

Each switch allows you to send the post signal of the
corresponding GROUP fader to the [STEREO OUT
L/R] jacks. When the switch is down, the signal is
sent.

(29) [OUTPUT LIMITER] switch

Activates or deactivates the limiter function for all
the buss outputs (stereo L/R outputs, group outputs
1 through 4, Aux send outputs 1 through 3, effect
send output, and monitor outputs). When the switch
is down (

), the limiter function is active.

(30) [GROUP 1-4] faders

Each fader adjusts the output level of the
corresponding group output signal which is output
from the [GROUP OUT] jack.

(31) [STEREO] fader

Adjusts the output level of the stereo output signal
which is output from the [STEREO OUT (L/R)] and
[ST MIX OUT (L/R)] jacks.
