1594A/1595A Super-Thermometer
Rear Panel Features
20
4.3 Rear Panel Features

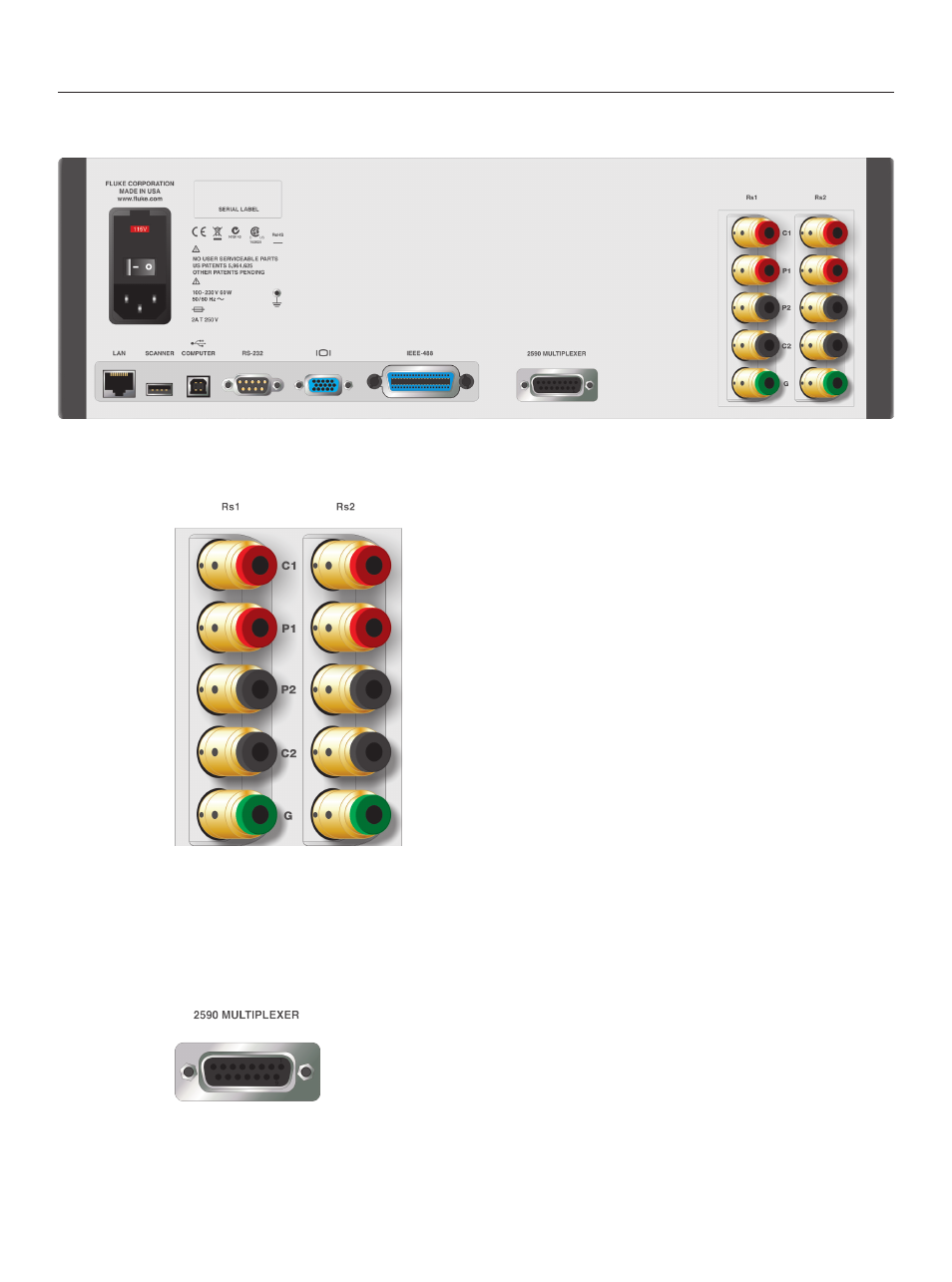

Figure 4 Rear view
4.3.3.1 External Resistor Inputs
Figure 5 External Resistor Inputs
The Rs1 and Rs2 external reference resistor connections are located on the rear panel. The Current (C1, C2),
Potential (P1, P2) and Guard (G) terminals are labeled to facilitate proper connection (see Figure 16 on page
58).
4.3.1 Scanner Connection
The 2590 Scanner connection is a 15-pin socket located on the back panel. It is used to control an optional
scanner. Refer to the scanner manual for connection and setup instructions.
