2 replacing the pad assy – FUJITSU IMAGE FI-5530C2 User Manual
Page 115
4.2 Replacing the Pad ASSY
fi-5530C2 Image Scanner Operator’s Guide
99
REP
L
A
C
ING CONS
UMA
B
LE
S
4
4.2

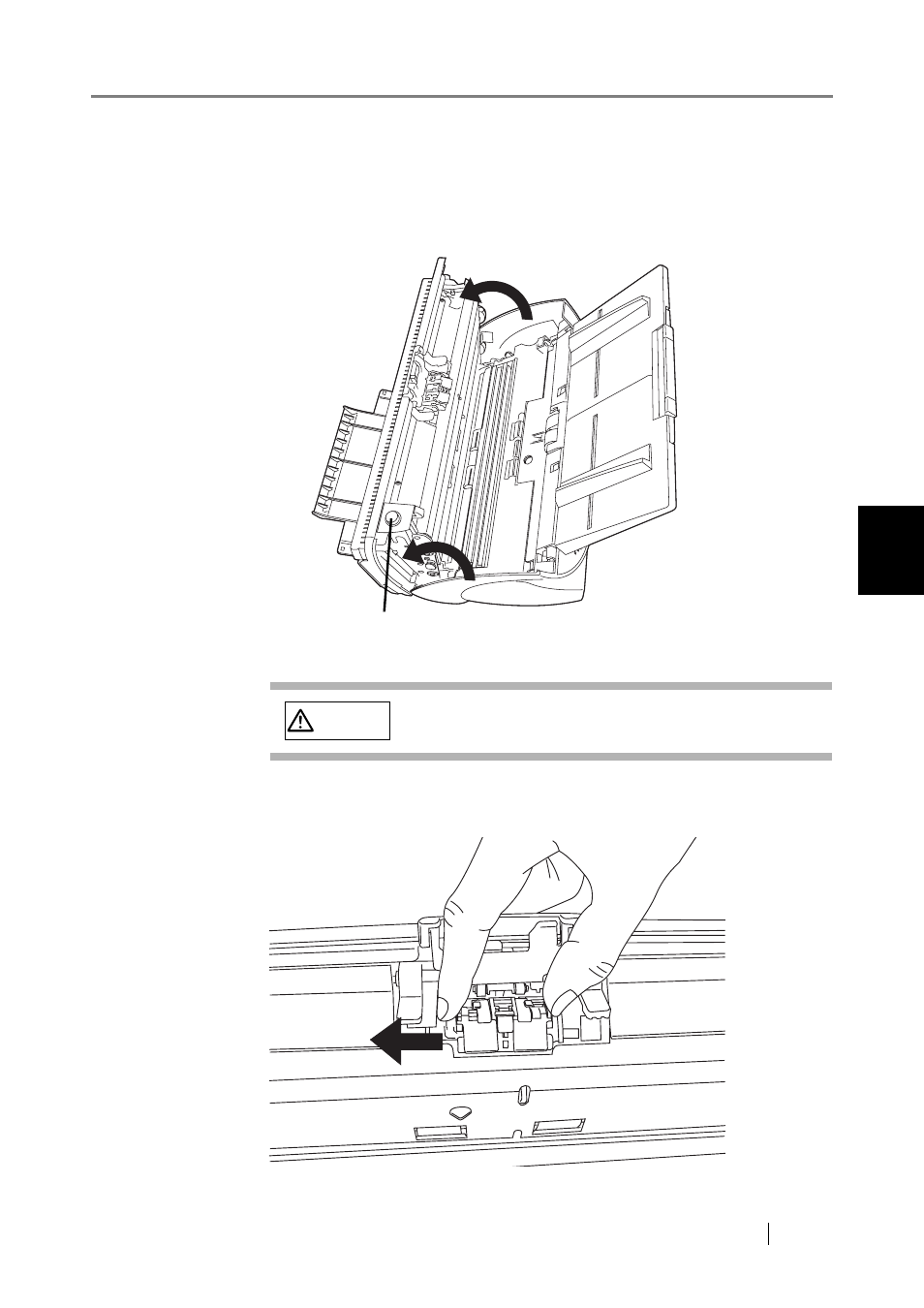

Replacing the Pad ASSY
1. Remove all documents from the ADF paper chute.
2. Open the ADF by pushing down the ADF button.
3. Remove the Pad ASSY.
Pinch the Pad ASSY and slide it to the arrow direction, and then remove it.
CAUTION
Be careful, the ADF cover may close suddenly and
pinch your fingers.
ADF button
