Cable Pinouts
The following tables provide cable pinout information for the console (RJ-45), Ethernet (RJ-45), T1(RJ-48C), and
modem (DB-9 to DB-9) or (DB-25 to DB-9) cables.
HDLC
Frame Relay
Multilink Frame Relay (MFR)
FRF.15 (End-to-End)
FRF.16 (UNNI/NNI)
Management Interfaces
Console: RJ-45
AUX: DB-9

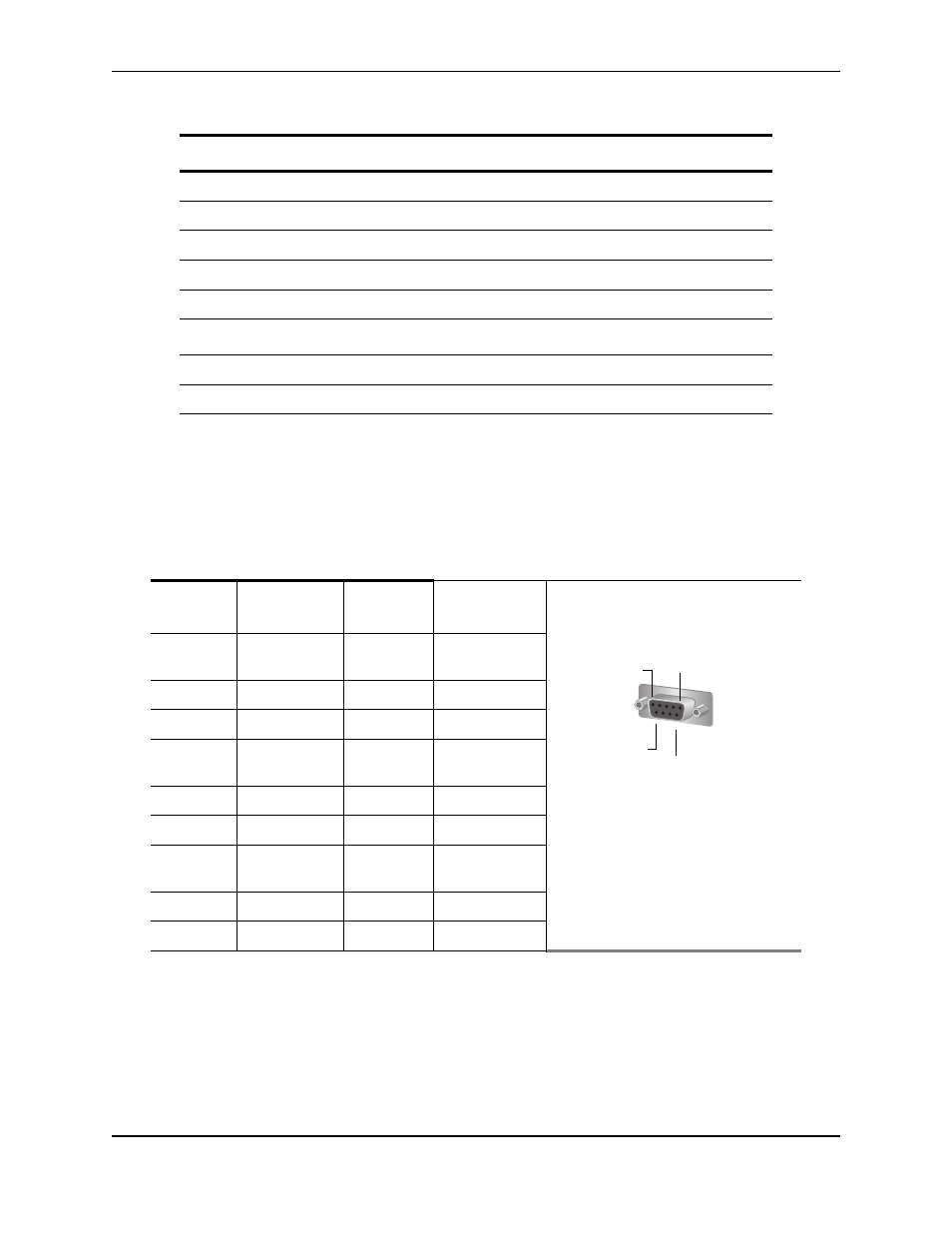

Table A.7: Pinouts: Foundry-to-Terminal Console Cable (DB-9)
Foundry
DCE Pin
Signal
Direction
Workstation
DTE Pin
1
data carrier
detect
<—
1
2
transmit data
—>
2
3
receive data
<—
3
4
data terminal
ready
—>
4
5
signal ground
<—>
5
6
data set ready
<—
6
7
request to
send
—>
7
8
clear to send
<—
8
9
not used
9
Table A.6: Miscellaneous
Service Levels and Connectivity
Pin 5
Pin 1
Pin 9
Pin 6
RS-232 DCE on DB-9 Female
