Foundry AR-Series AR1202 and AR1204 Installation Guide
2 - 4 © 2004 Foundry Networks, Inc. June 2004

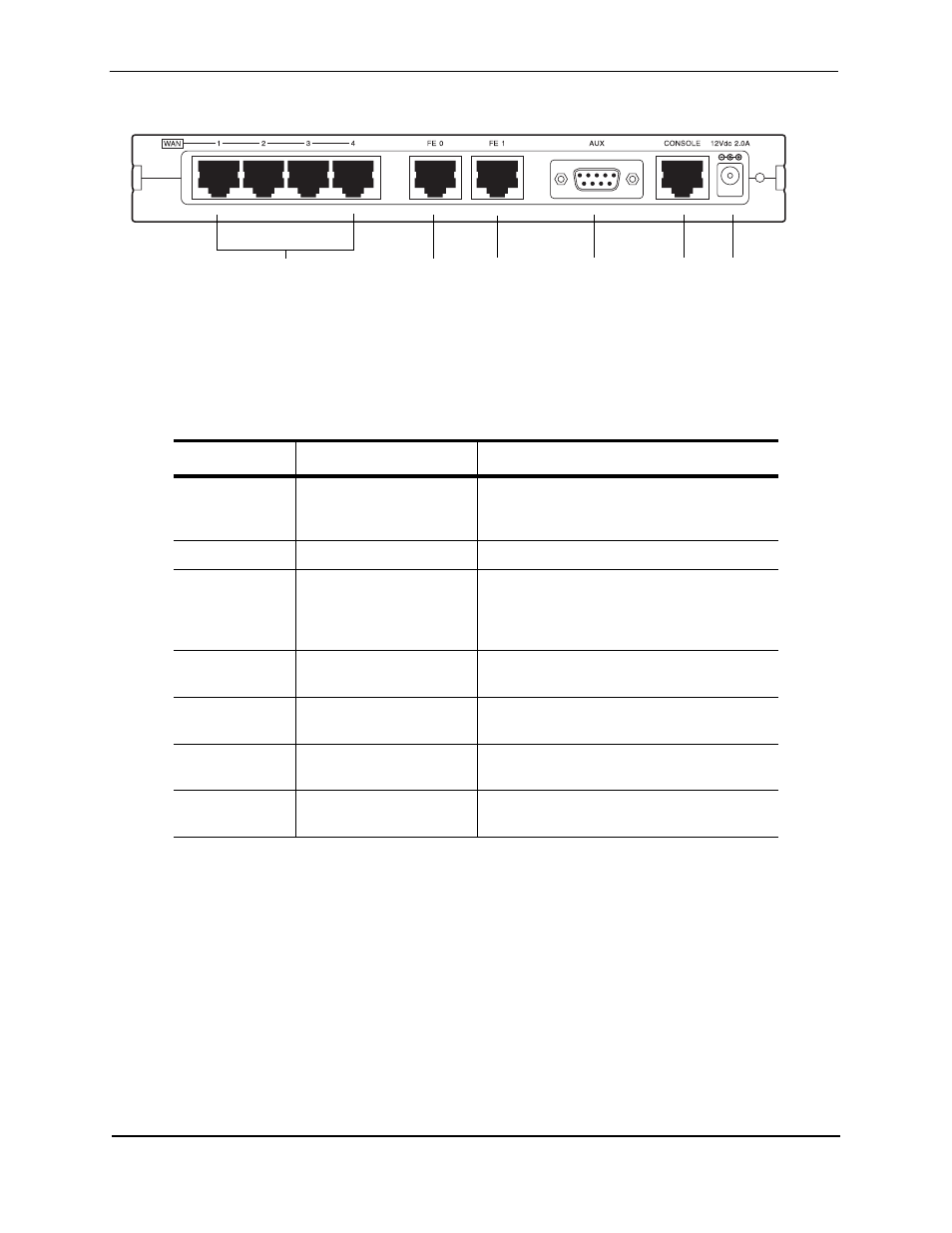

Figure 2.4 AR1204 Router Back Panel
LEDs
The AR1204 front-panel LEDs indicate real-time unit status. Table 2.3provides information about how to interpret
the LED states.
Table 2.3: LED Descriptions
Port Description Color
WAN STATUS
1-4 Indicates traffic activity on
this interface Green = normal activity
Red = alarm state
Yellow = test mode
ETHERNET 0/1
LINK/ACT Indicates traffic activity on
this interface Green = link is operational
Blinking Yellow = either receiving or sending
traffic
Red = packet collisions
HS Indicates traffic speed on
the interface Off = 10 Mbps
Green = 100 Mbps
DUP Indicates the type of
duplex mode Off = Half duplex
Green = Full duplex
Foundry Logo Back lighted when power
is on Blue
Power Indicates system power
status Green = power on
Off = power off
WAN Ports 1 - 4 Fast Ethernet
Port 0 Fast Ethernet
Port 1 AUX Port Console
Port 12 VDC
Input Jack
