2. Insert the RJ-48C connectors on the other ends of the cables in the WAN ports on the front panel of the
Foundry router.
Make sure that the cable connectors are locked and secure in the ports. See Table A.9 on page A-6 for pinout
information about this cable.

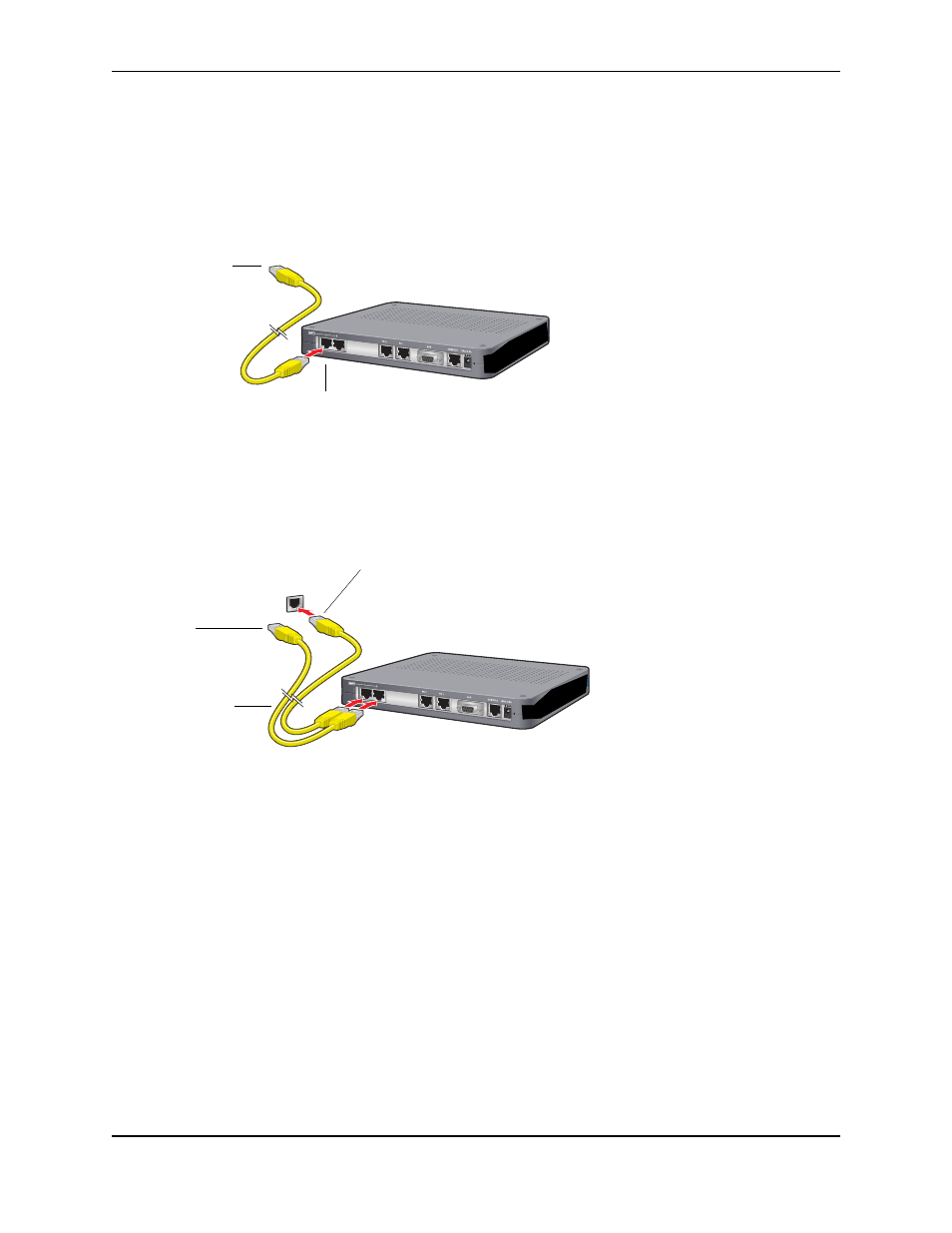

Figure 3.12 Connecting the WAN Cable
Connecting Drop and Insert Cables
WAN ports 1 and 2 can alternatively be used for drop and insert traffic. Port 1 is designated for voice; port 2 is
used for data traffic. Use two 26 AWG (minimum) category 5, twisted-pair cables with RJ-48C connectors to
establish this connectivity.
Figure 3.13 Connecting Drop and Insert Cables
To connect drop and insert cables, follow this procedure. Refer to Figure 3.13 on page 3-9.
1. Insert the RJ-48C connector of one end of one WAN cable in WAN port 1 on the router.
2. Connect the other end of this cable to the local PBX port.
3. Insert the connector on one end of the second cable to WAN port 2 on the router.
4. Connect the other end of this cable to the Service Provider’s demarcation point.
5. For information about configuring drop and insert, refer to the Command Reference Guide.
Operator Interface
Local Management
The AR1202 and AR1204 can be locally configured, operated, and managed using an operator console
connected to the Console port. A terminal (VT-100 or equivalent) or workstation with terminal emulation software
can be used for the operator console. Connect the console to the AR1202 and AR1204 router Console port using
an RJ-45 cable with switched ends. If your terminal equipment requires a special cable, see Table A.7 on page A-
5
f or connector pinout information.
To connect the Console cable:
Connect to Service
Provider’s Demarcation
Point
WAN Port 1
Connect to Service Provider’s
Demarcation Point
Connect to the Local PBX Port
RJ-48C WAN Cables
