Product Introduction
June 2004 © 2004 Foundry Networks, Inc. 2 - 3
AR1204
AR1204 Front Panel
The router front panel houses the system LEDs.
The following section identifies and describes the AR1204 router network ports and LEDs.

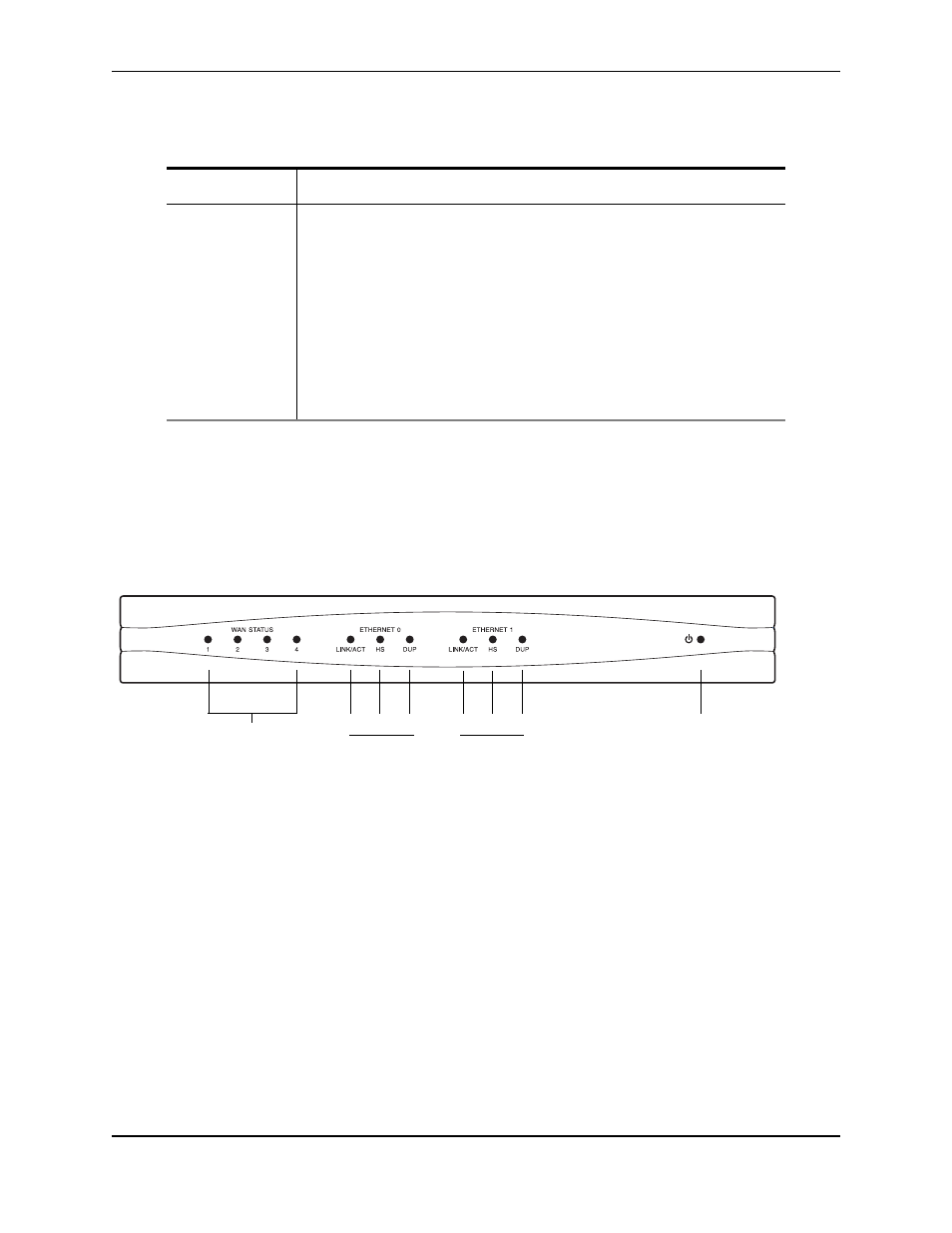

Figure 2.3 AR1204 Router Front Panel
AR1204 Back Panel
The AR1204 router back panel provides connections for four WAN ports, two 10/100 Base-T Ethernet ports, one
AUX port, one Console port, and a 12 VDC power input jack.
Table 2.2: AR1202 Back-Panel Ports
Connector Description
WAN 1 - WAN 2 WAN connection ports. These ports accept cables with RJ-48C connectors.
FE 0 / 1 Ethernet LAN connection ports. These ports accept cables with RJ-45 cable
connectors.
AUX Reverse telnet connection. This port accepts a cable with a male DB-9
connector.
Console Console management port. This port accepts a cable with an RJ-45 cable
connector.
DC power 12 VDC power connection. This port accepts the 2 mm. power connector on
the DC power supply cable that ships with the AR1202 router.
WAN Port
LEDs 1-4
Ethernet 0 LEDs Ethernet 1 LEDs
Power LED LINK/ACT HS DUP LINK/ACT HS DUP
