ServerView Remote Management Frontend 51
Working with the Remote Management Frontend Connection to server
The window for power management and text console redirection is then
displayed:

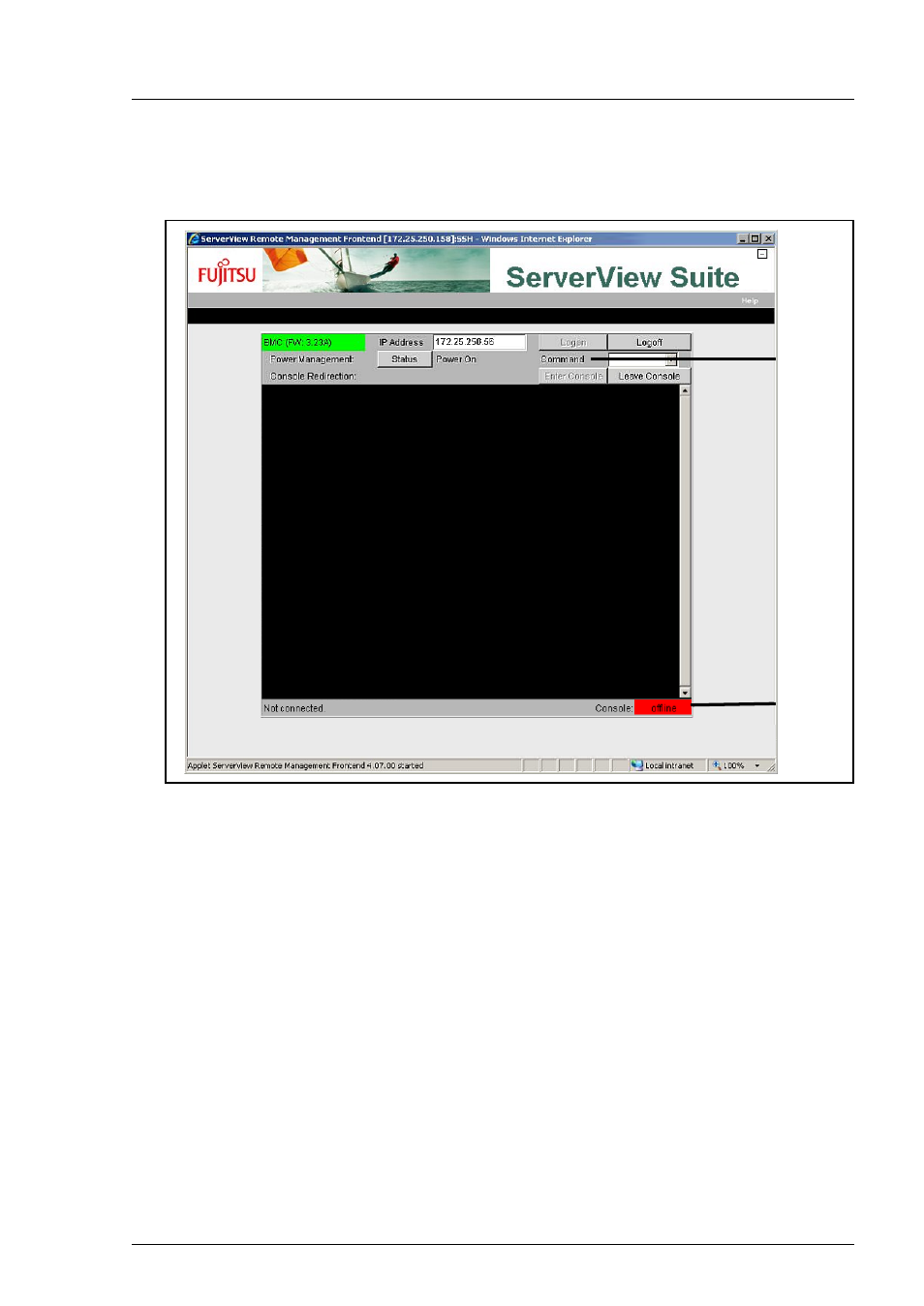

Figure 22: Window for power management and text console redirection
The connection to the iRMC/ iRMC S2 is established and the commands for
the power management of the managed server can be activated (1).
However, the server console is still offline (2).
Ê Click Enter Console to start the console redirection session.
I
If you access the managed server via a Kalypso BMC, you will be
asked (by the Kalypso BMC's Telnet server) to enter your user name
and password again in order to start the console redirection session.
You are then connected to the console and can execute the required
command, either by entering it directly in the console area or by clicking it in
the
Command drop-down list (IPMI commands only):
(1)
(2)
