ServerView Remote Management Frontend 49
Working with the Remote Management Frontend Connection to server
4.2.2 Establishing a connection to the
iRMC/ iRMC S2/BMC for power management and
console redirection
I
The example below illustrates the establishment of a connection to an
iRMC/ iRMC S2 which permits power management and console
redirection for the managed server. A connection to a BMC is established
in a very similar way.
Proceed as follows:
Ê In the Operation Manager Remote Management view, click the iRMC Power
Management button.

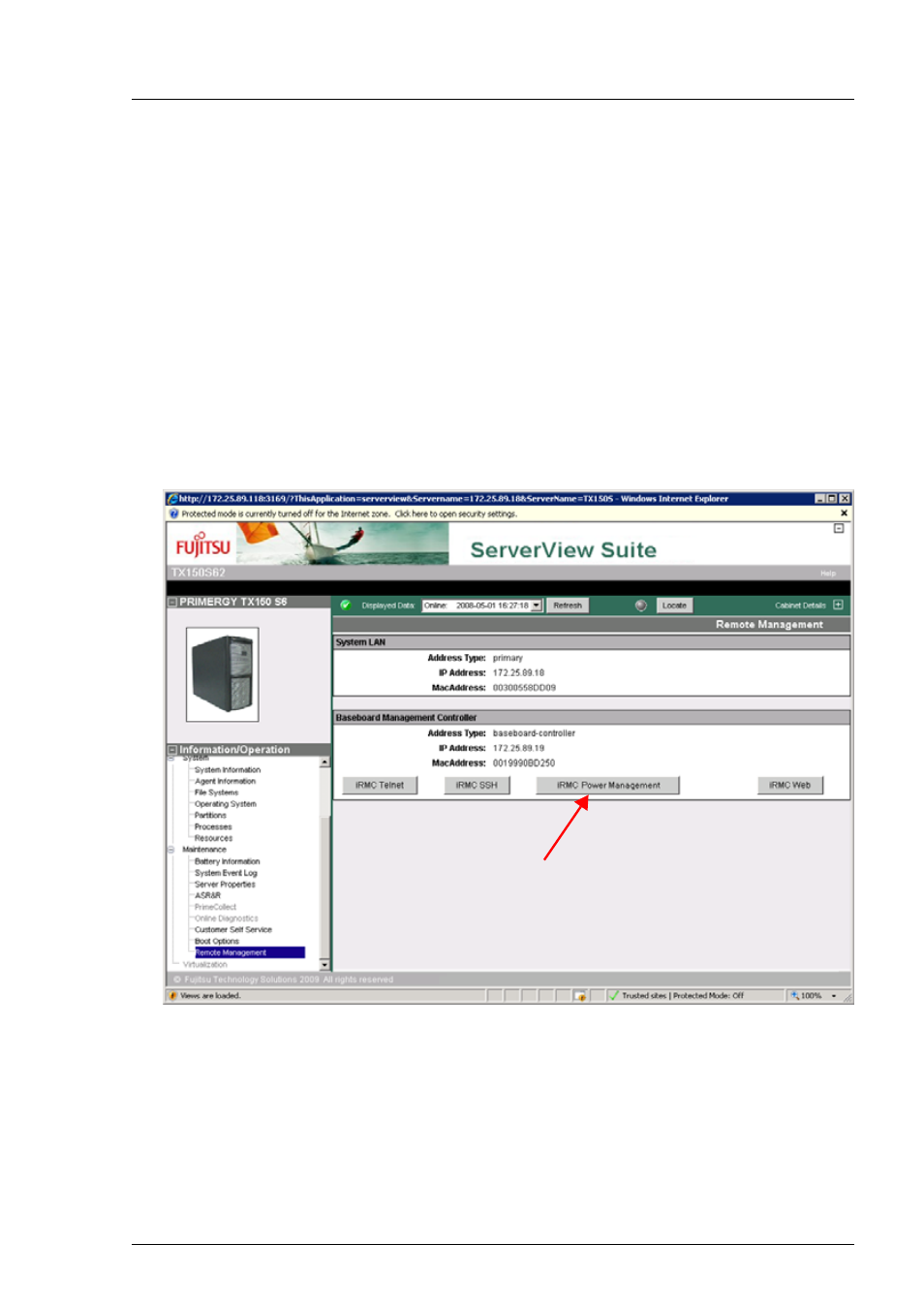

Figure 19: Operations Manager: Remote Management view -
Starting power management and console redirection
The Java applet for power management and console redirection is started
and the
Remote Management window is displayed ( figure 15 on page 45 ).
