20 ServerView Remote Management Frontend
... starting via the Operations Manager Remote Management Frontend
3.2.1 Starting the Remote Management Frontend via an
iRMC/ iRMC S2
Proceed as follows:
Ê In the ServerList window (see figure 2 on page 19 ), click the name of the
server which you want to manage with the Remote Management Frontend:
– If the server can be managed via the Operations Manager (status
icon for example
), then the ServerView [server-name] window opens
(see “Starting the Remote Management Frontend for manageable
servers” on page 21 ).
– If the server cannot be managed via the Operations Manager but can be
accessed via the secondary channel (BMC mode, status icon
), then
the Remote Management view is opened (see “Starting Remote
Management Frontend for servers in BMC mode” on page 24 .)
Example:

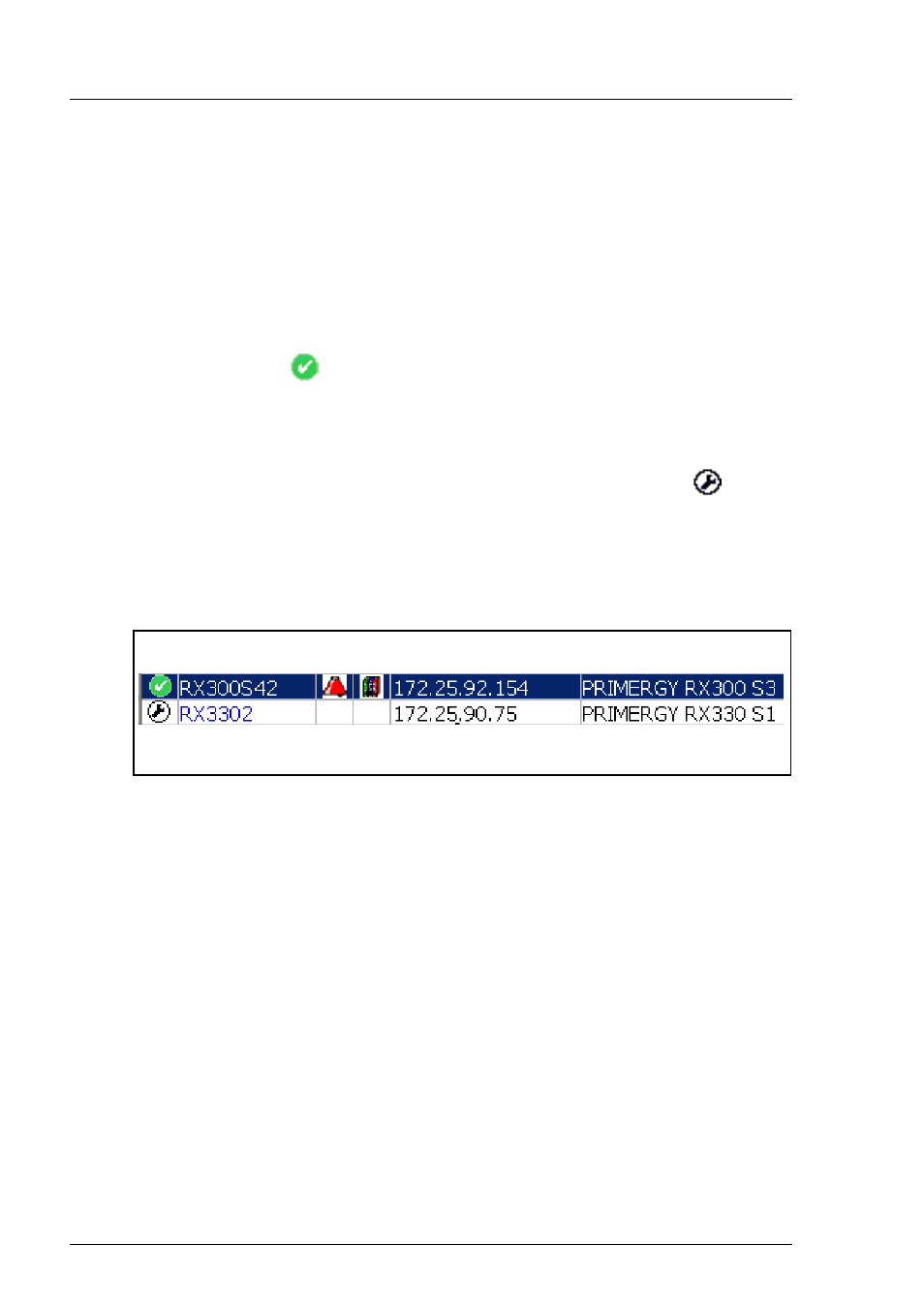

Figure 3: Operations Manager: “ServerList” window (server can be managed / cannot
be managed)
...
...
