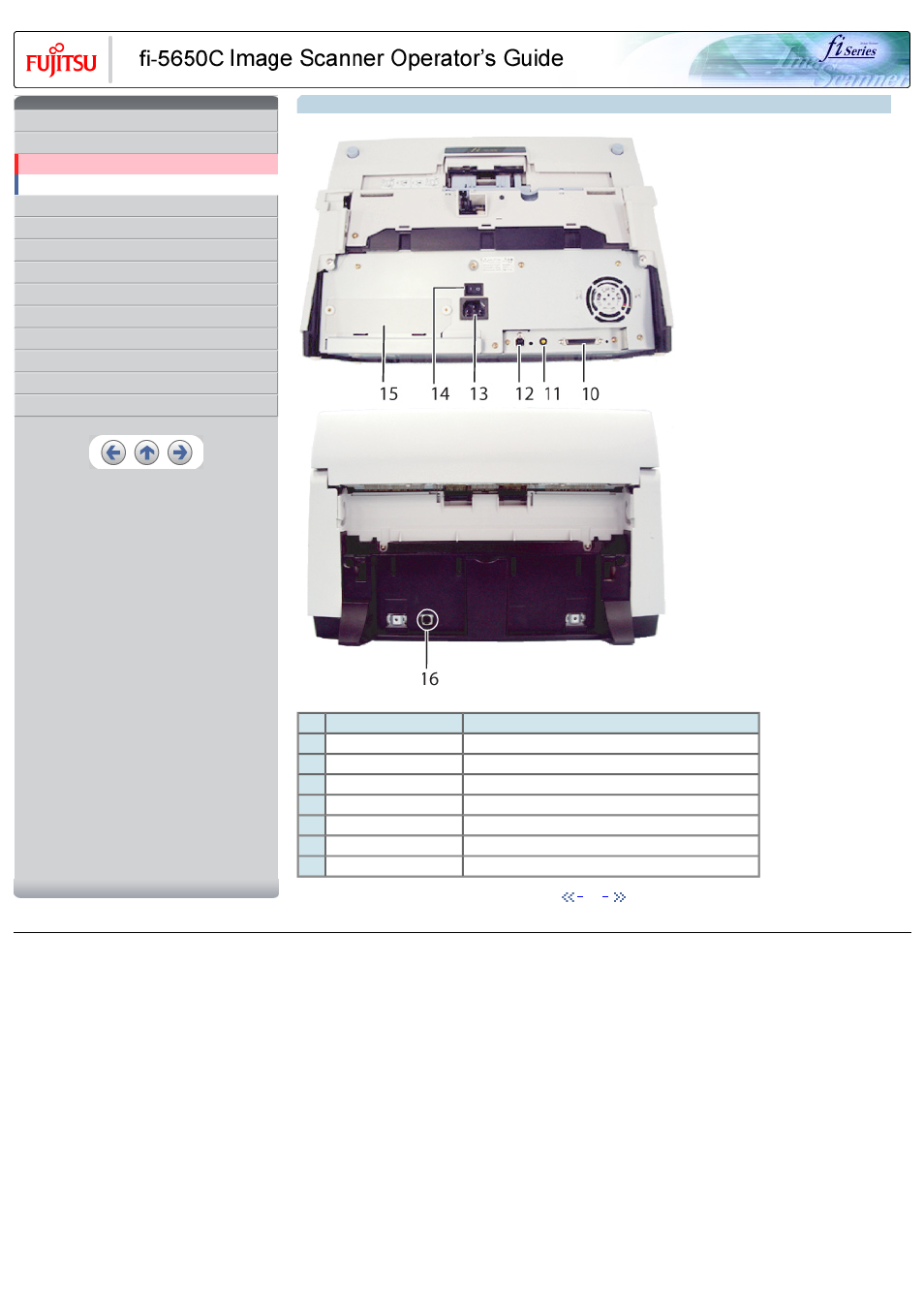

1.1 Names and functions of parts (Continued from the previous page)
No. Name Function
10 SCSI interface connector Used for connecting a SCSI interface cable from a PC.
11 SCSI ID switch Used for setting SCSI ID (The setting at the factory shipment is ID=5).
12 USB interface connector Used for connecting a USB interface cable from a PC.
13 Power inlet Used for connecting a power cable from the power outlet..
14 Power switch Used for turning ON/OFF the scanner.
15 Third Party Slot (Optional Slot) The slot for an option board.
16 EXT connector Connector port for optional units.
