Brake roller, Brake roller -8 – FUJITSU M4099D User Manual
Page 43
3-8
WARNING
Wait at least 3 minutes after turning off the power before
replacement.
ACHTUNG
Warten Sie mindestens 3 Minuten nach Ausschalten, bevor Sie
mit dem Austausch beginnen.
Set abrasion counter when replacing the brake roller. (See Appendix)

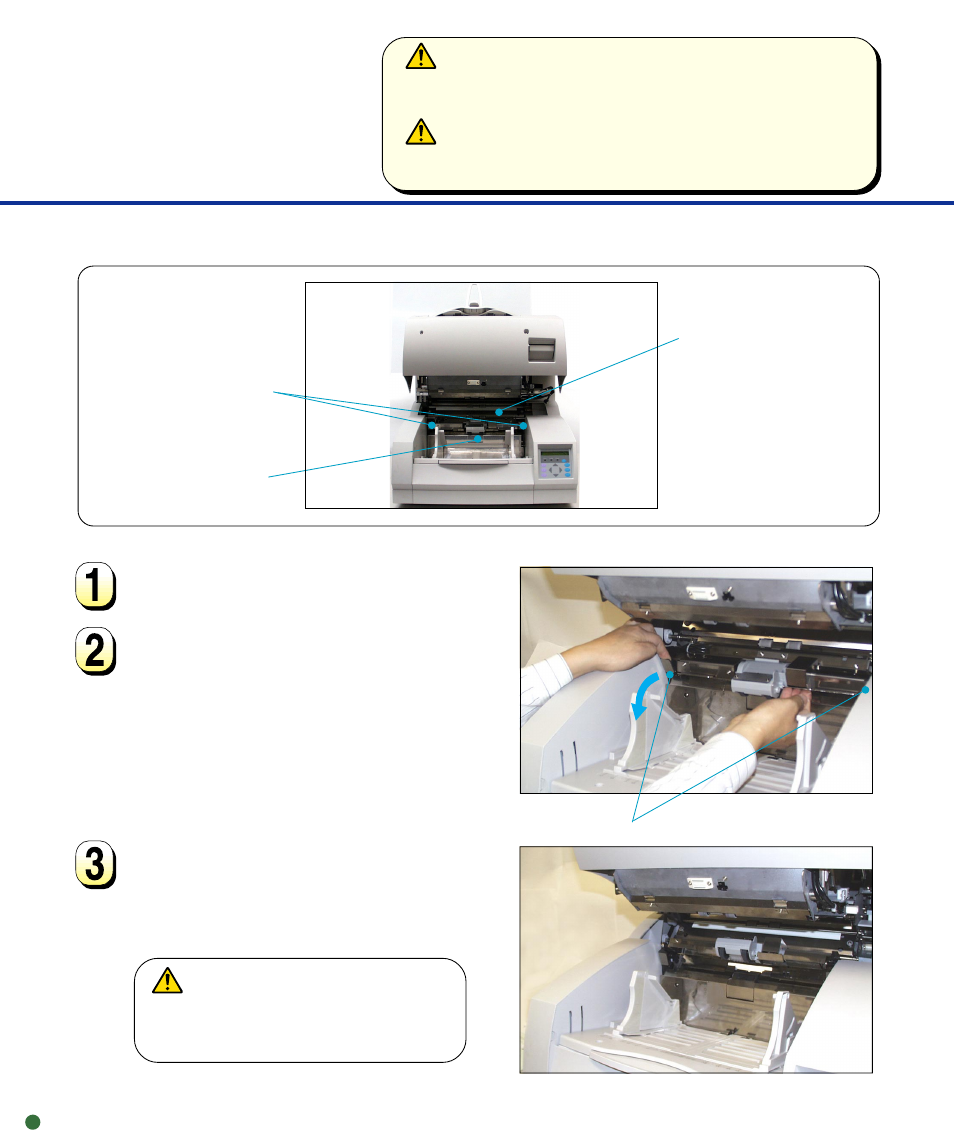

Brake Roller
ADF sheet guide
assembly
ADF release levers
Brake roller (inside)
Open the upper transport unit.
Release the ADF release lever
and rest the ADF sheet guide
assembly on the ADF release
lever.
While pulling the ADF release
lever toward you, hold up the ADF
sheet guide assembly.
CAUTION
Never close the upper transport unit in this
condition, otherwise some component parts
will be damaged.
ADF release levers
