4.4.3 Replacing the pick roller
The following explains how to replace the pick roller.
1) If a page is on the paper support, remove it.
2) While lifting the cover open lever section, pull the automatic paper feed toward you to open it.
3) Remove the pick roller.

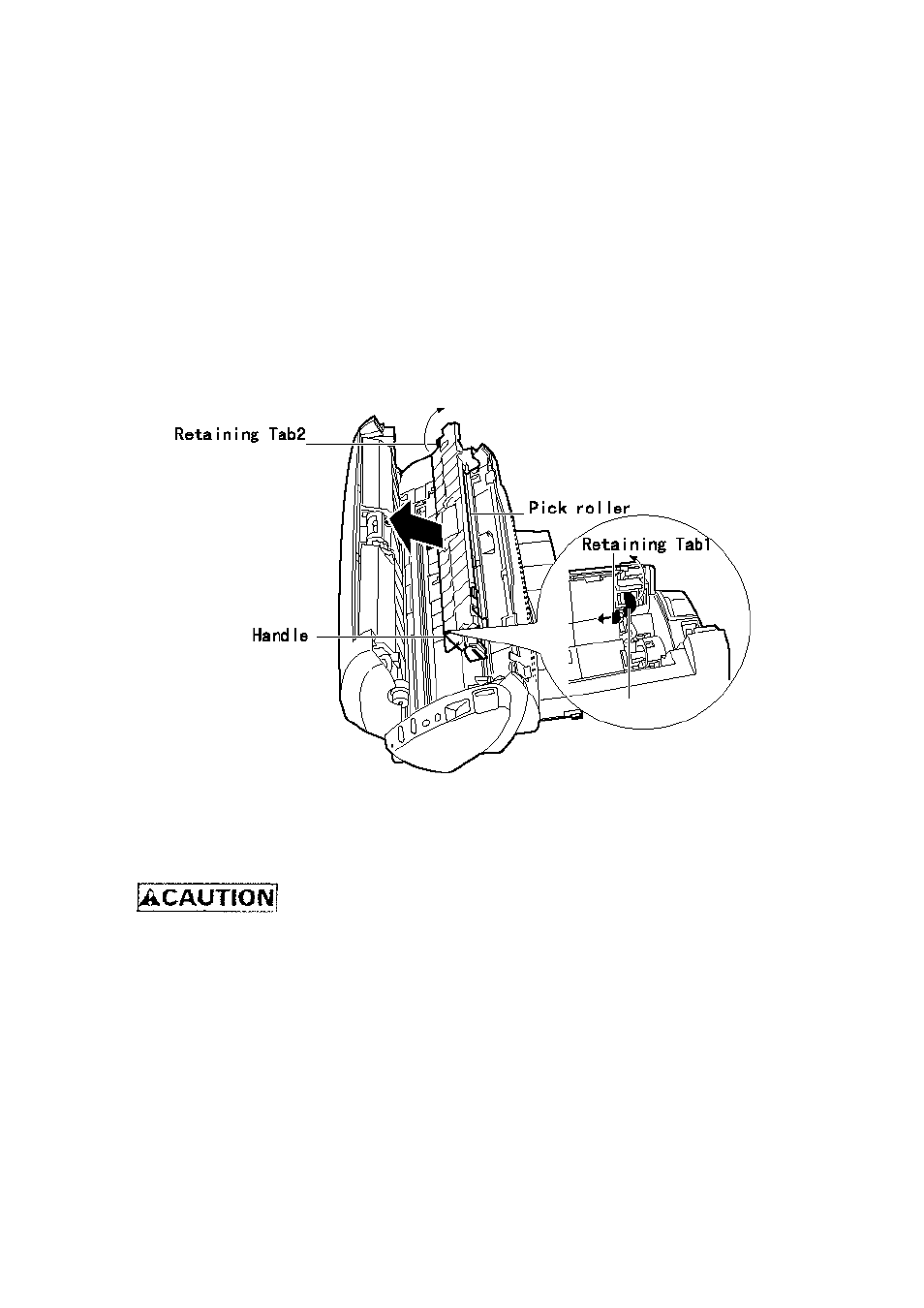

Push retaining tab 1 of the pick roller inward and hold the handle to lift it, rotating it in the direction of
the arrow. Push retaining tab 2 on the opposite side inward, and remove the pick roller by rotating it
in the direction of the arrow.
4) To mount a new pick roller, insert the new one so that the retaining tabs slide into the holes of the
scanner pick roller. Push the retaining tab 1, retaining tab 2, and the middle of the pick roller so it is
inserted fully.
- Check that the pick roller is completely mounted. If it is not mounted
completely, paper feed errors such as paper jams may occur.
