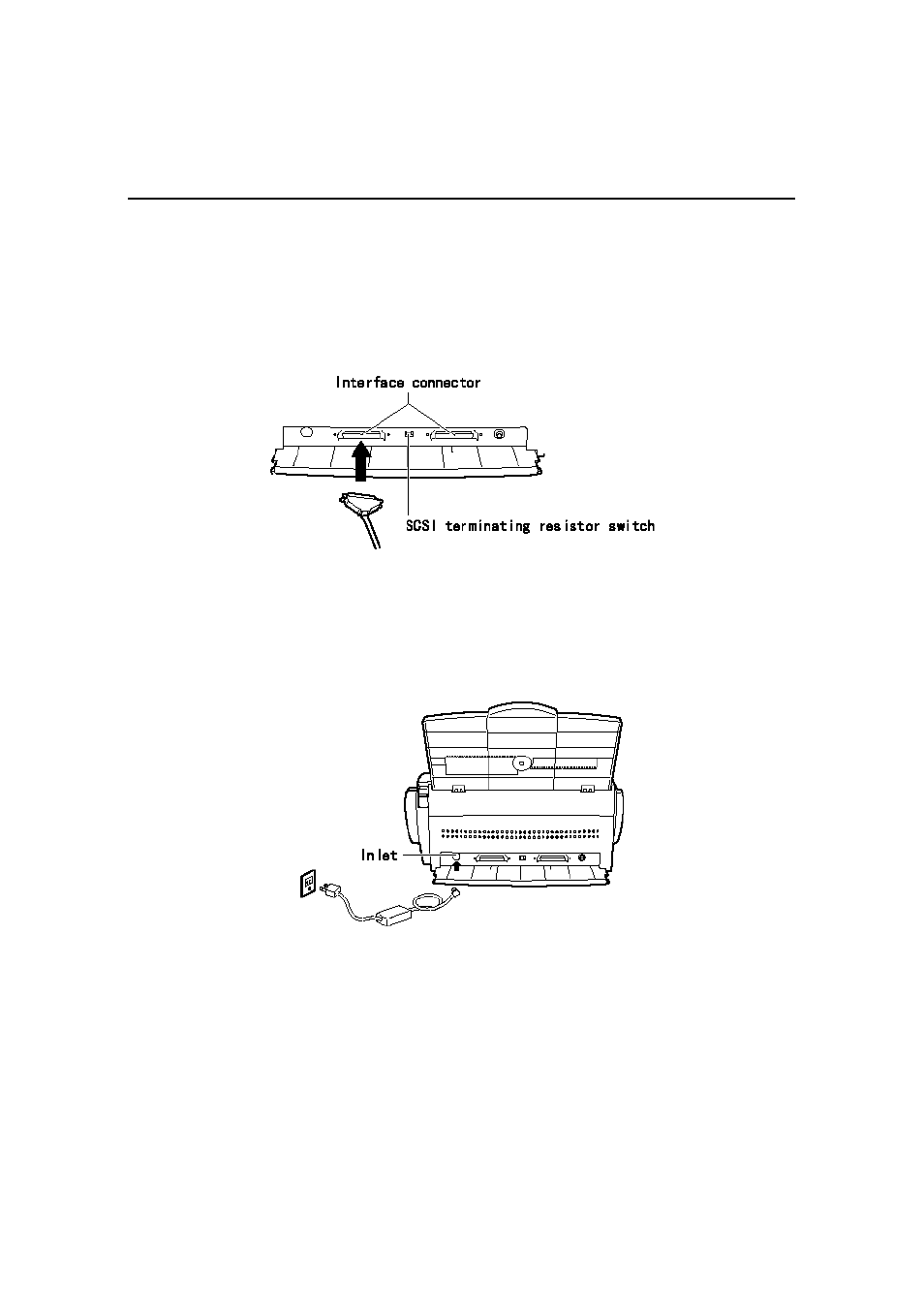

2.3.2 Connecting the SCSI cable

Insert the interface cable into the interface connector on the scanner until it clicks. Connect the other end

of the cable to the scanner or another SCSI peripheral device. If the scanner is the last device on the

SCSI bus, turn the SCSI terminating resistor switch to ON (ON is the factory setting).

2.3.3 Connecting the power cable

1) Connect the power cable to the power inlet on the scanner.

2) Insert the AC adapter into the outlet.
