4.4.2 Replacing the pad

The following explains how to replace the pad.

1) If a page is on the paper support, remove it.

2) While lifting the cover open lever, pull the automatic paper feed section toward you to open it.

3) Remove the pad.

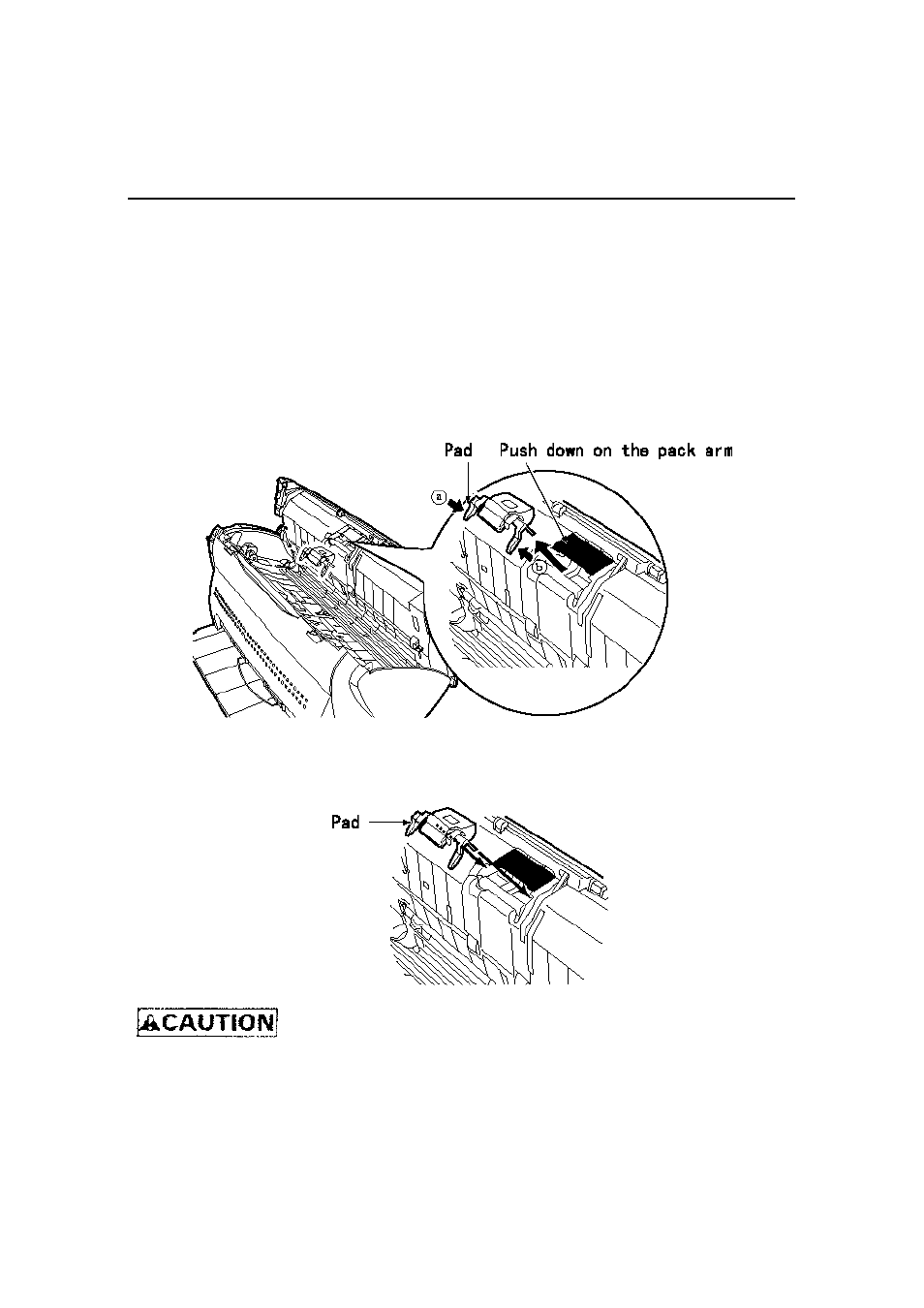

Push down on the pick arm with one hand, and pinch both ends of the pad (a, b) with the other hand to

pull it out in the direction of the arrow.

4) To mount a new pad, push up the pick arm with one hand, and mount the new one with the other

hand.

- Check that the pad is completely mounted. If it is not mounted completely, paper

feed errors such as paper jams may occur.
