GFK-1535A
Chapter 2 Installation
2-5
2

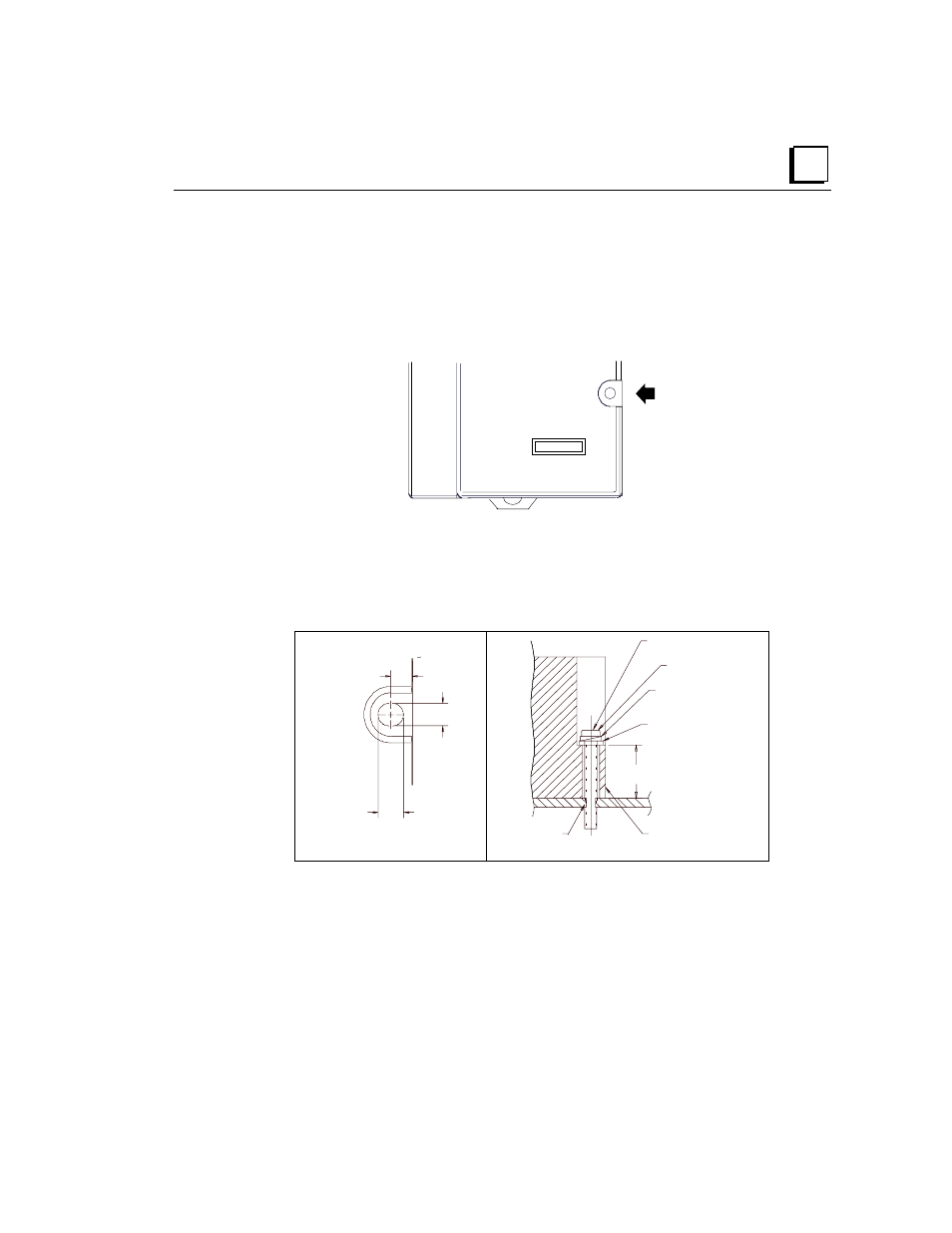

Panel-Mounting
For maximum resistance to mechanical vibration and shock, the DIN-rail-mounted
module must also be installed on a panel. Using the module as a template, mark the
location of the module’s panel-mount hole on the panel. Drill the hole in the panel.
Install the module using an M3.5 (#6) screw in the panel-mount hole.
Note 1.
Tolerances on all dimensions are +/-0.13mm (0.005in) non-cumulative.
Note 2.
1.1-1.4Nm (10-12 in/lbs) of torque should be applied to M3.5 (#6-32) steel
screw threaded into material containing internal threads and having a
minimum thickness of 2.4mm (0.093in).
SEE NOTE 2.
M3.5 (#6) SCREW
15.9mm
0.62in REF
SPLIT LOCK
W ASHER
FLAT WASHER
NIU
TAPPED
HOLE IN
PANEL
5.1mm
0.200in
4.3mm
0.170in
4.3mm
0.170in
