1-8 VersaMax™ System Genius® Network Interface Unit User's Manual – November 2000 GFK-1535A
1
I/O Modules

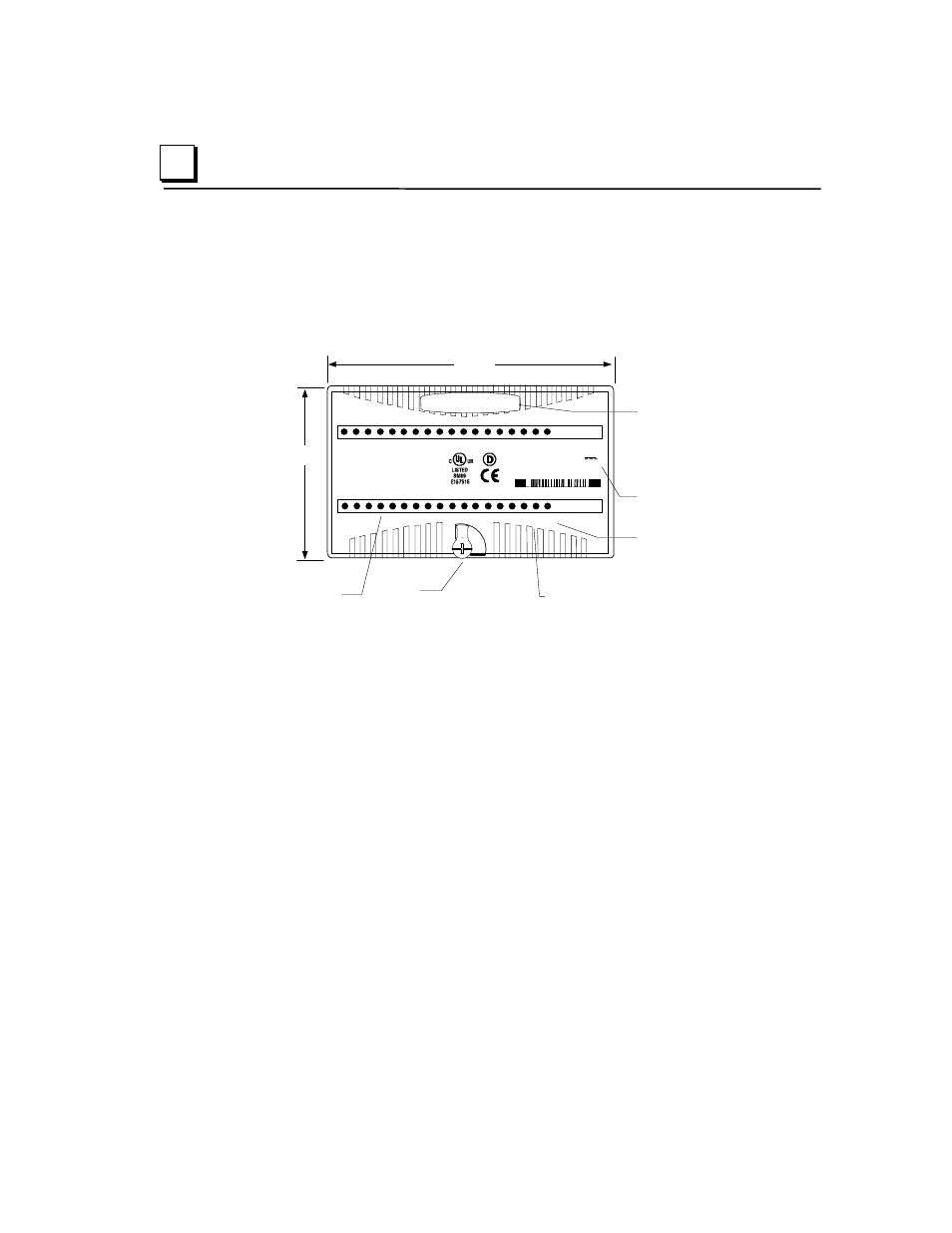

VersaMax IO and option modules are approximately 110mm (4.3in) by 66.8mm
(2.63in) in size. Modules can be mounted either horizontally or vertically on several
types of available I/O Carriers. Modules are 50mm (1.956 in) in depth, not
including the height of the carrier or the mating connectors.
66.8mm
(2.63in)
110mm
(4.33in)
Latch Individual Point LEDS
on Discrete Modules
Field Power LED
indicates presence of
power from external
OK LED indicates
presence of power from
VersaMax power supply
Color code:
Red: AC
Blue: DC
Gold: Mixed
Gray: Analog/other
Module
Description 1234567 831
FLD OK
IC200MDL750
OUTPUT 12/24VDC
POS GRP .5A 32PT
OK
FLD
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Q
17 18 19 20 21 22 23 24 25 26 2 28 29 30 31 32
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4A Ambient 60C
CLASS I ZONE 2 GROUP IIC
Ex nA IIC T4 OC
≤ To ≤ 60C
Ex nV T4 Demko No. 98Y. 125014
VersaMax I/O modules are described in the VersaMax Modules, Power Supplies,
and Carriers User’s Manual (GFK-1504).
