Power Supplies

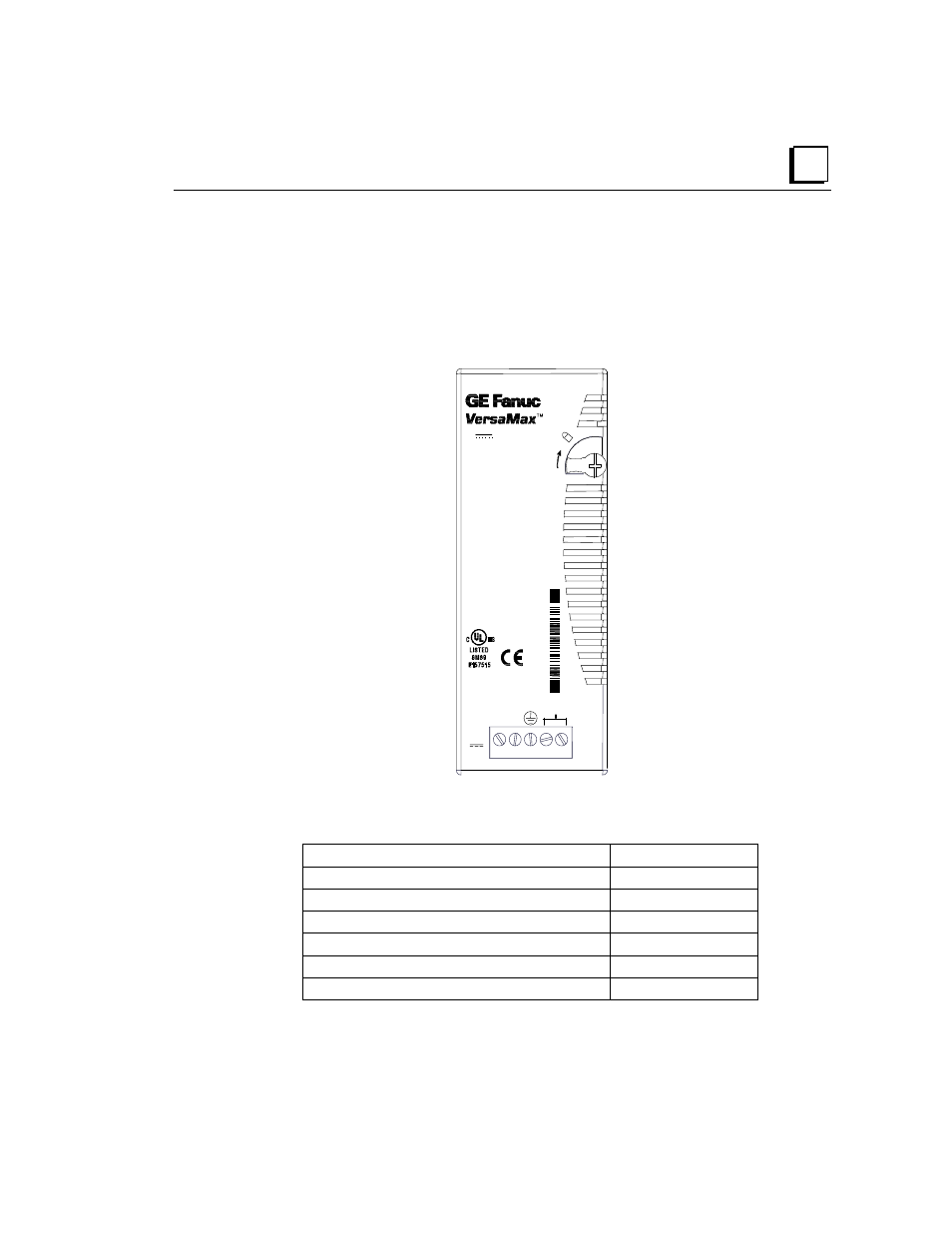

An AC or DC Power Supply module installs directly on the NIU. The Power Supply
provides +5V and +3.3V power to the modules in the station. Additional power
supplies can be installed on special booster carriers if needed for systems where the
number of modules creates the need for a booster. No booster supply is needed to
power conventional I/O modules.
IC200PWR001
VDC
+
INPUT
-
MADE IN USA
24 VDC, 11 W
POWER SUPPLY
WARNING:
EXPLOSION HAZARD
WHEN IN HAZARDOUS
LOCATIONS TURN OFF
POWER BEFORE
REPLACING OR WIRING
MODULES.
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2
GROUPS ABCD
Temp Code T4A
Ambient 60C
NOT
USED
Available Power Supplies and Carrier
The following VersaMax power supplies and carrier are available:
24VDC Power Supply IC200PWR001
24VDC Expanded 3.3V Power Supply IC200PWR002
120/240VAC Power Supply IC200PWR101
120/240VAC Expanded 3.3V Power Supply IC200PWR102
12VDC Power Supply IC200PWR201
12VDC Expanded 3.3V Power Supply IC200PWR202
Power Supply Booster Carrier IC200PWB001
Power supplies are described in the VersaMax Modules, Power Supplies, and
Carriers User’s Manual (GFK-1504).
