GFK-1535A Chapter 1 Introduction 1-13
1

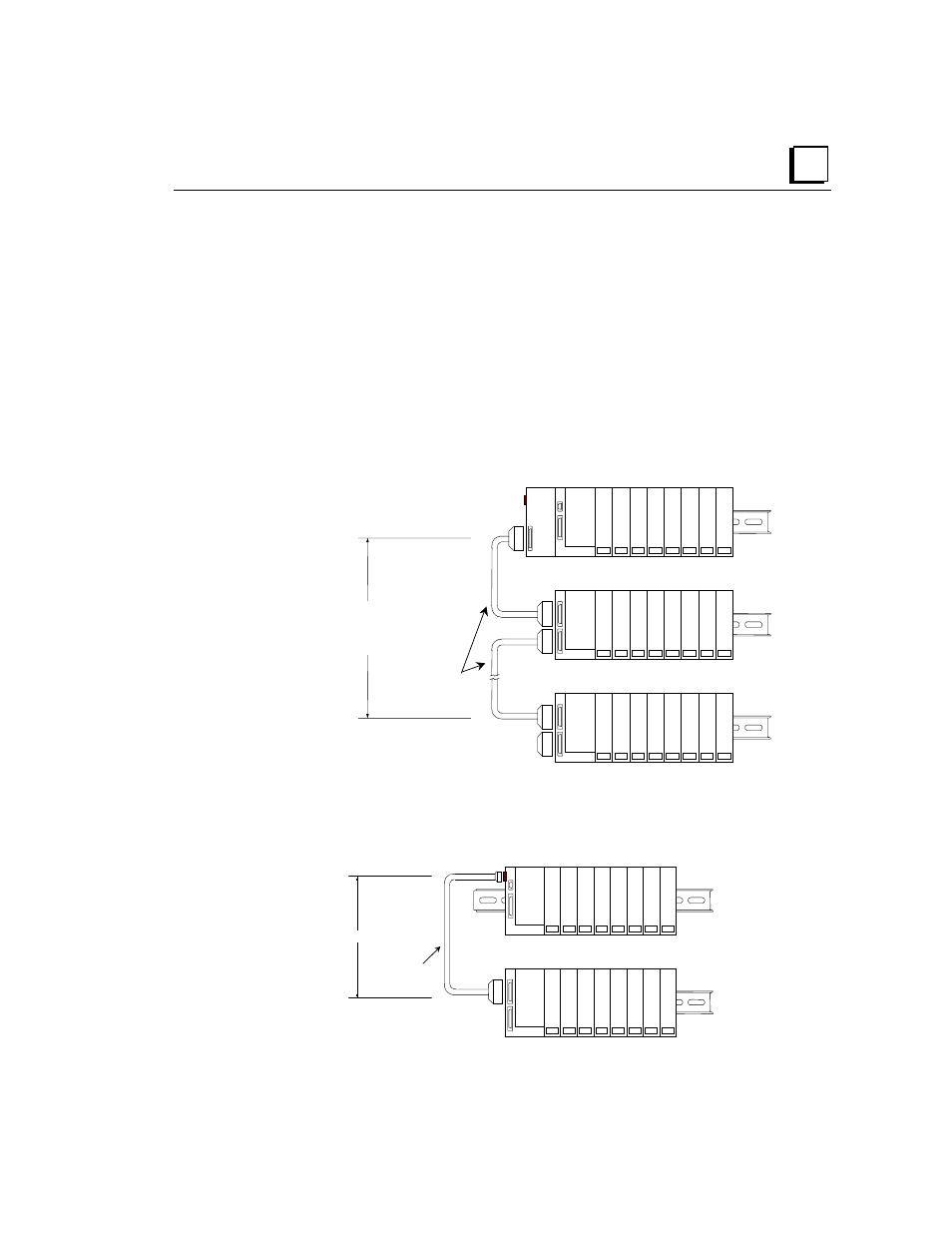

Expansion Modules
Expansion modules can be used to extend the I/O Station and add more modules.
There are two basic types of VersaMax I/O expansion systems, Multi-Rack and
Two-Rack Local:
S Multi-Rack: A VersaMax PLC or NIU I/O Station with an Expansion
Transmitter Module (IC200ETM001) and one to seven expansion “racks”, each
with an Expansion Receiver Module (IC200ERM001 or IC200ERM002). If all
the Expansion Receivers are the Isolated type (IC200ERM001), the maximum
overall cable length is 750 meters. If the expansion bus includes any non-
isolated Expansion Receivers (IC200ERM002), the maximum overall cable
length is 15 meters.
PS
CPU/NIU
PS
ERM
PS
ERM
ETM
VersaMax ExpansionRack 1
Terminator
Plug
15M with any
IC200ERM002 ERMs
750M with all
IC200ERM001 ERMs
VersaMax PLC or I/O Station Main Rack (0)
VersaMax ExpansionRack 7 IC200CBL601,
602, 615
S Two-Rack Local: A PLC or NIU I/O Station connected directly to one
expansion rack with non-isolated Expansion Receiver Module
(IC200ERM002). Maximum cable length is 1 meter.
PS
ERM
VersaMax Expansion Rack
1 M
VersaMax PLC or NIU I/O Station Main Rack
PS
CPU/NIU
IC200CBL600
