4 cable connections, 1 drive connectors – FUJITSU MCJ3230AP User Manual
Page 61
3.4 Cable Connections
C156-E205-01EN
3-13
3.4 Cable Connections
3.4.1 Drive connectors

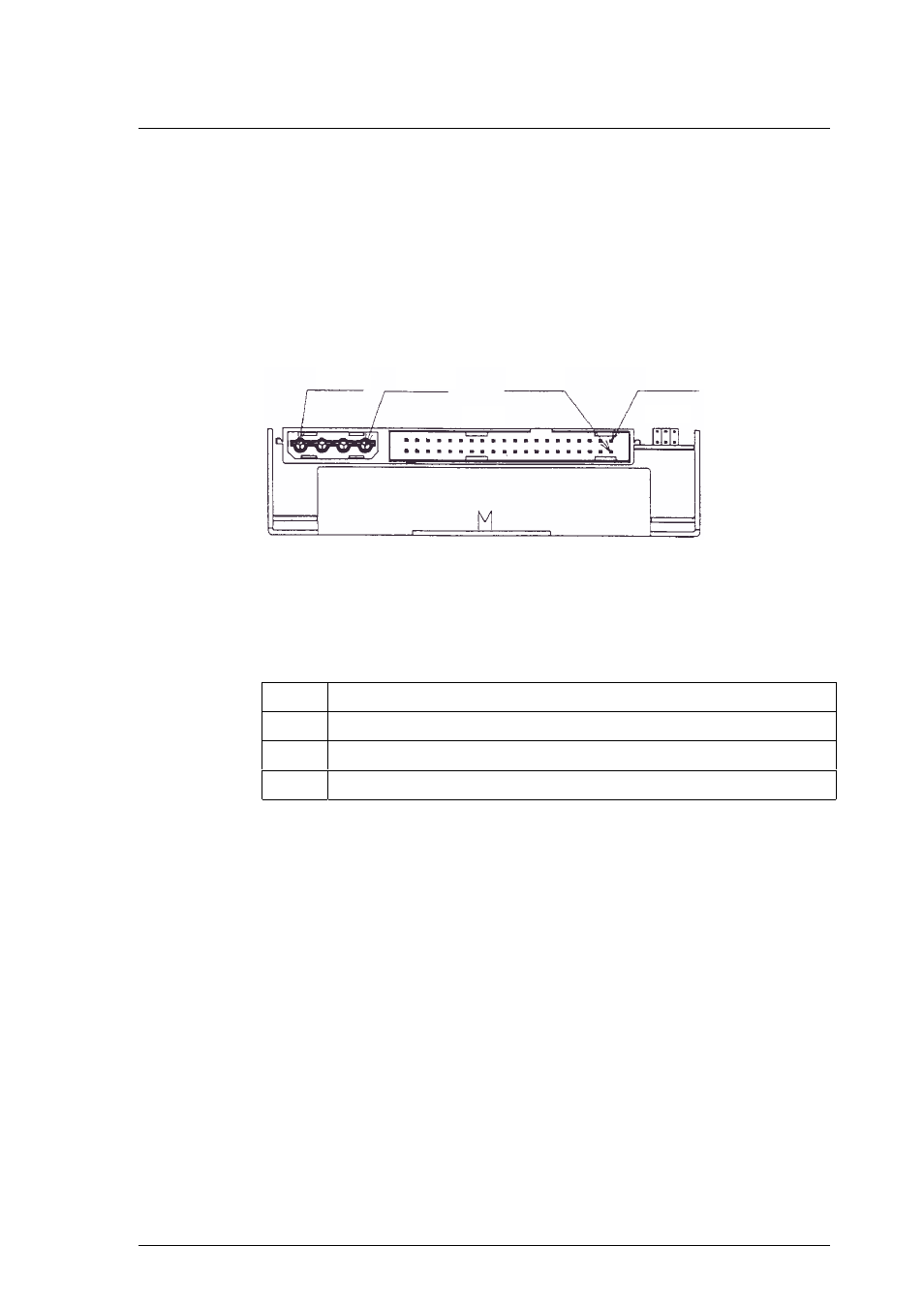

The optical disk drive (ODD) has connectors. Figure 3.9 shows the location of the
connectors.
"
AT interface connector (40-pin) and power supply connector (4-pin)
Figure 3.9 Connector and terminal locations
Power supply connector
1
+12 VDC or not connected
2
+12 VDC RETURN (GND) or not connected
3
+5 VDC RETURN (GND)
4
+5 VDC
4 pin
1 pin
2 pin
CN1
1 pin
CNH5
