3.2 Mounting Requirements
C156-E205-01EN 3-11
(2) Panel function processing
When installed in a cabinet, do not change the panel formal. The processing is
installation status and the disk insertion door can be closed from any locations.
(3) Service clearance

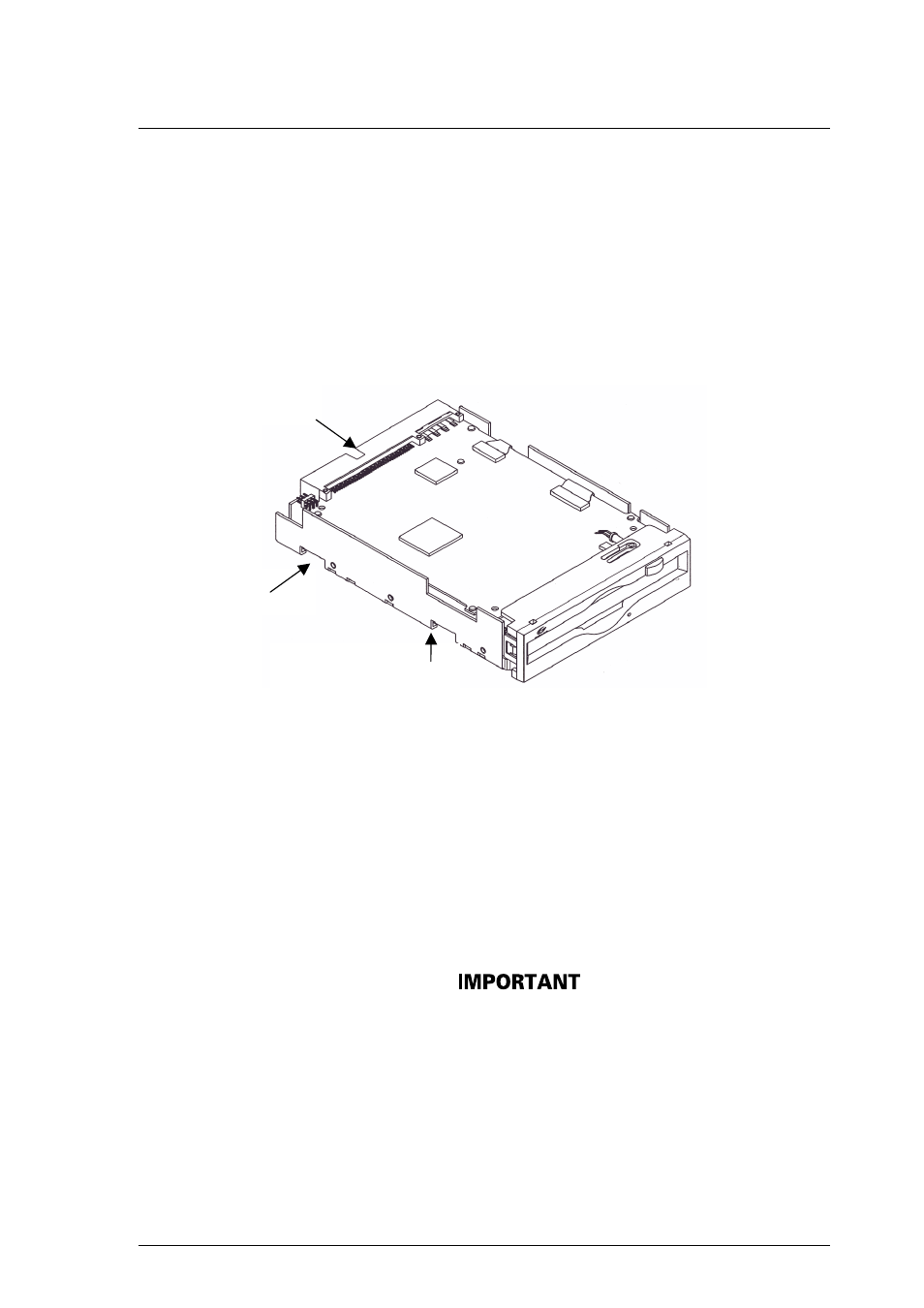

Figure 3.7 shows locations which must be accessed for installation and
maintenance. Be sure to leave sufficient service clearance.
Figure 3.7 Service clearance
(4) External magnetic fields
Mount the optical disk drive away from powerful magnetic materials (e.g., a
speaker) to avoid influence from magnetic fields.
(5) Leak magnetic field
The VCM drive magnetic circuit may leak the magnetic field (Maximum 25 mT at
distance of 4 mm from the drive).
Do not place a device sensitive to a magnetic field near the optical
disk drive.
(6) External light source
Mount the optical disk drive away from strong light sources (e.g., camera flash).
P side
" Cable connection
R side
" Mounting screw hole
Q side
" Mounting screw hole
