Installation Requirements
3-8
C156-E205-01EN
3.2.2 Installation direction

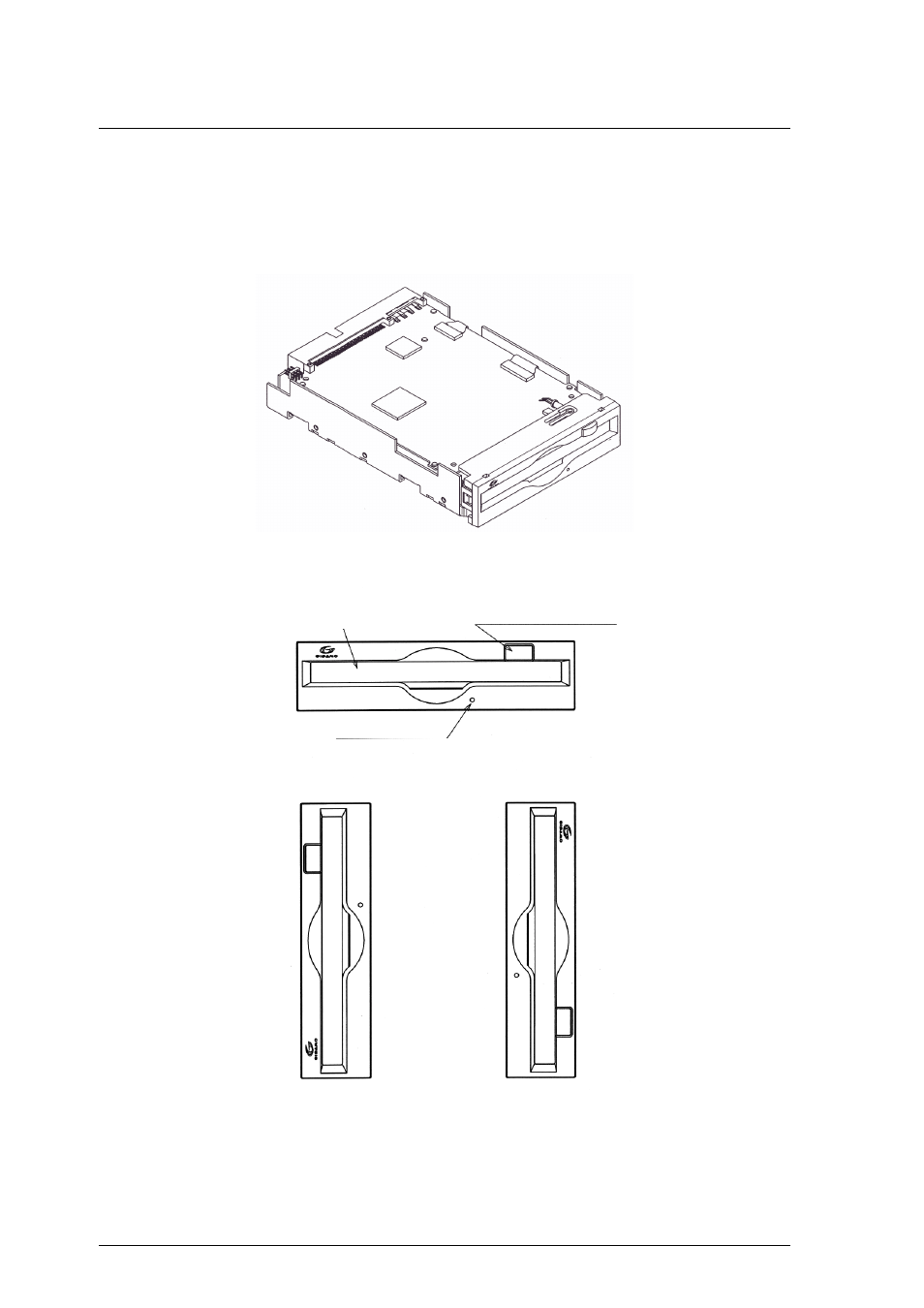

Figure 3.4 shows the permissible installation directions for this drive. The
mounting angle tolerance must be within -5 to 10 from the horizontal. (-) shows
that the insertion faces below.
Eject button / Busy LED
Disk insertion slot
Manual eject hole
Figure 3.4 Installation directions
"
Horizontal
" Vertical
(Two orientations)
