APPLICATION DATA (cont)

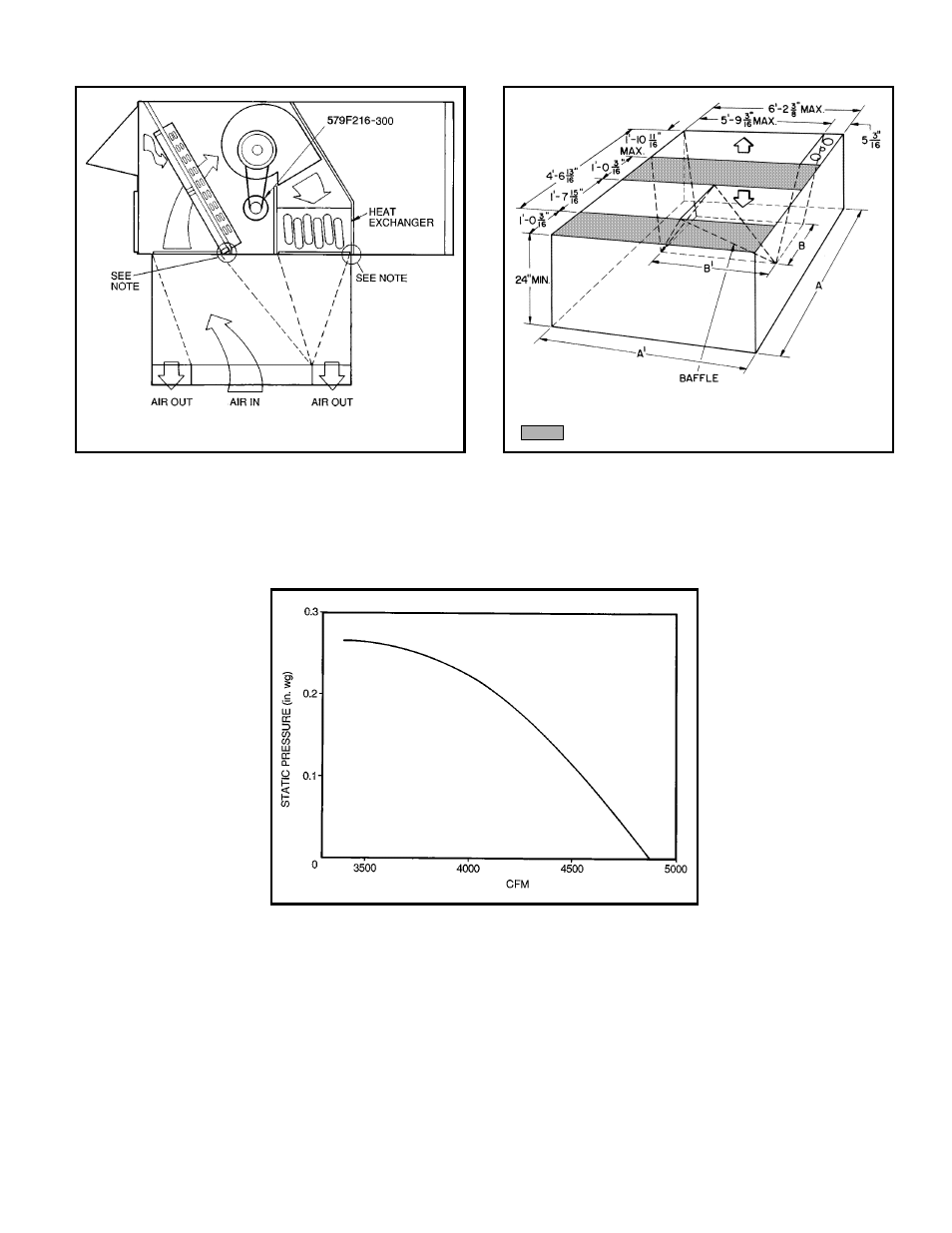

Concentric Duct Air Distribution

(579F180-300 Only)

NOTE: Do not drill in this area; damage to basepan may result in
water leak.

Fan Performance Using Accessory Power Exhaust

(579F180-300)

Concentric Duct Details

(579F180-300 Only)

NOTE: Dimensions A, A

and B, B

are obtained from field-

supplied ceiling diffuser.

Shaded area indicates block-off panels.
