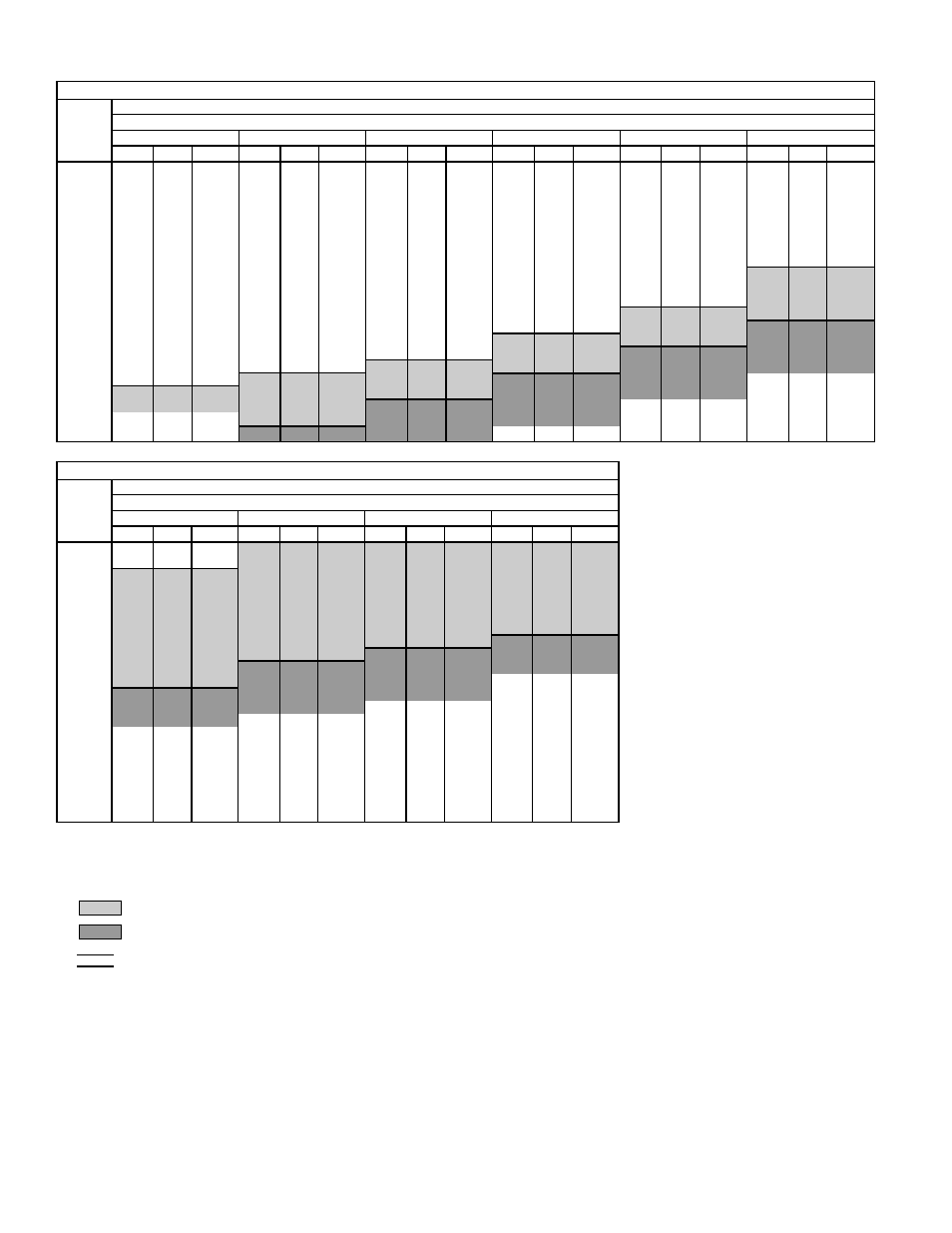

AIR DELIVERY — HORIZONTAL DISCHARGE UNITS (cont)
580D120 (10 TON)
Airflow
(Cfm)
Standard and Alternate Belt Drive Motors
External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0 1.2
Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts
3000 552 0.68 661 632 0.87 810 701 1.05 956 761 1.22 1097 816 1.36 1216 871 1.54 1370
3100 565 0.74 708 644 0.93 859 711 1.12 1014 772 1.31 1173 825 1.45 1292 879 1.63 1447
3200 578 0.81 763 656 1.00 916 723 1.20 1081 782 1.39 1241 835 1.55 1378 887 1.71 1517
3300 591 0.88 818 668 1.08 973 734 1.28 1148 793 1.47 1310 845 1.65 1465 895 1.80 1595
3400 605 0.96 883 680 1.16 1047 745 1.36 1216 803 1.56 1387 856 1.75 1552 904 1.91 1691
3500 619 1.04 948 691 1.23 1106 755 1.44 1284 813 1.65 1465 867 1.86 1648 914 2.03 1796
3600 633 1.13 1022 703 1.31 1173 766 1.52 1353 824 1.74 1543 877 1.97 1744 924 2.15 1901
3700 648 1.23 1106 714 1.39 1241 777 1.61 1430 835 1.85 1639 887 2.07 1831 935 2.28 2015
3800 662 1.33 1190 726 1.51 1310 789 1.72 1526 846 1.95 1726 897 2.18 1927 946 2.40 2169
3900 677 1.44 1284 738 1.61 1387 801 1.82 1613 857 2.06 1823 908 2.29 2023 956 2.53 2282
4000 692 1.55 1378 750 1.73 1473 813 1.94 1718 868 2.17 1919 918 2.40 2119 967 2.66 2397
4100 707 1.67 1482 762 1.84 1560 825 2.05 1814 878 2.28 2015 929 2.53 2282 977 2.78 2505
4200 722 1.80 1595 775 1.97 1656 837 2.16 1910 889 2.40 2119 941 2.66 2397 987 2.91 2624
4300 737 1.94 1718 787 2.09 1761 848 2.27 2006 900 2.52 2273 952 2.80 2523 999 3.04 2744
4400 752 2.08 1840 800 2.21 1875 860 2.39 2110 912 2.66 2397 962 2.93 2642 1008 3.19 2885
4500 768 2.24 1980 814 2.35 1989 871 2.51 2265 924 2.80 2523 973 3.07 2772 1019 3.34 3029
4600 783 2.40 2119 827 2.50 2121 883 2.64 2380 937 2.95 2661 983 3.21 2904 — — —
4700 799 2.56 2309 841 2.64 2291 894 2.77 2496 949 3.10 2800 994 3.36 3049 — — —
4800 814 2.74 2469 855 2.80 2424 906 2.91 2624 961 3.26 2952 — — — — — —
4900 — — — 868 2.90 2578 918 3.05 2754 972 3.40 3088 — — — — — —
5000 — — — 883 3.10 2735 931 3.21 2904 — — — — — — — — —
580D120 (10 TON) (cont)
Airflow
(Cfm)
Standard and Alternate Belt Drive Motors
External Static Pressure (in. wg)
1.4 1.6 1.8 2.0
Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts
3000 918 1.67 1482 967 1.89 1736 1010 2.09 1903 1063 2.46 2221
3100 928 1.78 1478 973 1.94 1778 1018 2.17 1971 1070 2.51 2265
3200 937 1.90 1745 981 2.04 1861 1026 2.26 2048 1075 2.57 2318
3300 946 2.00 1828 991 2.16 1963 1032 2.32 2099 1080 2.64 2380
3400 953 2.10 1912 1000 2.29 2074 1041 2.44 2203 1083 2.65 2389
3500 961 2.20 1997 1009 2.41 2177 1051 2.57 2318 1090 2.74 2469
3600 970 2.32 2099 1017 2.53 2282 1061 2.72 2451 1099 2.88 2596
3700 980 2.45 2212 1024 2.64 2380 1069 2.87 2587 1109 3.03 2735
3800 989 2.58 2326 1033 2.76 2487 1077 2.99 2698 1118 3.20 2895
3900 1000 2.73 2460 1042 2.91 2624 1085 3.12 2819 1127 3.36 3049
4000 1010 2.87 2587 1052 3.06 2763 1093 3.24 2933 — — —
4100 1021 3.02 2726 1062 3.22 2914 1102 3.41 3097 — — —
4200 1032 3.17 2866 1072 3.38 2971 — — — — — —
4300 1042 3.32 3010 — — — — — — — — —
4400 — — — — — — — — — — — —
4500 — — — — — — — — — — — —
4600 — — — — — — — — — — — —
4700 — — — — — — — — — — — —
4800 — — — — — — — — — — — —
4900 — — — — — — — — — — — —
5000 — — — — — — — — — — — —
LEGEND
Bhp — Brake Horsepower Input to Fan
Watts — Input Watts to Motor
NOTES:
1. Boldface indicates field-supplied drive required. (See Note 6.)
2. indicates alternate motor and/or drive required.
3. indicates field-supplied motor and drive required.
4. indicates maximum usable bhp/watts of standard motor and drive.
5. indicates maximum usable bhp/watts of alternate motor and/or drive.
6. Standard drive range is 685 to 935 rpm. Alternate drive range is 835 to
1085 rpm. All other rpms require a field-supplied drive.
7. Values include losses for filters, unit casing, and wet coils.
8. Maximum continuous bhp is 2.4 for the standard motor and 2.9 for the alter-
nate motor. Maximum continuous watts are 2120 for the standard motor and
2615 for the alternate motor. Extensive motor and electrical testing on these
units ensures that the full range of the motor can be utilized with confidence.
Using your fan motors up to the wattage ratings shown will not result in nui-
sance tripping or premature motor failure. Unit warranty will not be affected.
See Evaporator-Fan Motor Performance table on page 60 for additional
information.
9. Use of a field-supplied motor may affect wire sizing. Contact your local rep-
resentative to verify.
10. Interpolation is permissible. Do not extrapolate.
11. Minimum allowable cfm is 300 cfm/ton.
44
