III-15
Note:
When re-assembling the fan motor
into the holder, refer to the figure on
the right.

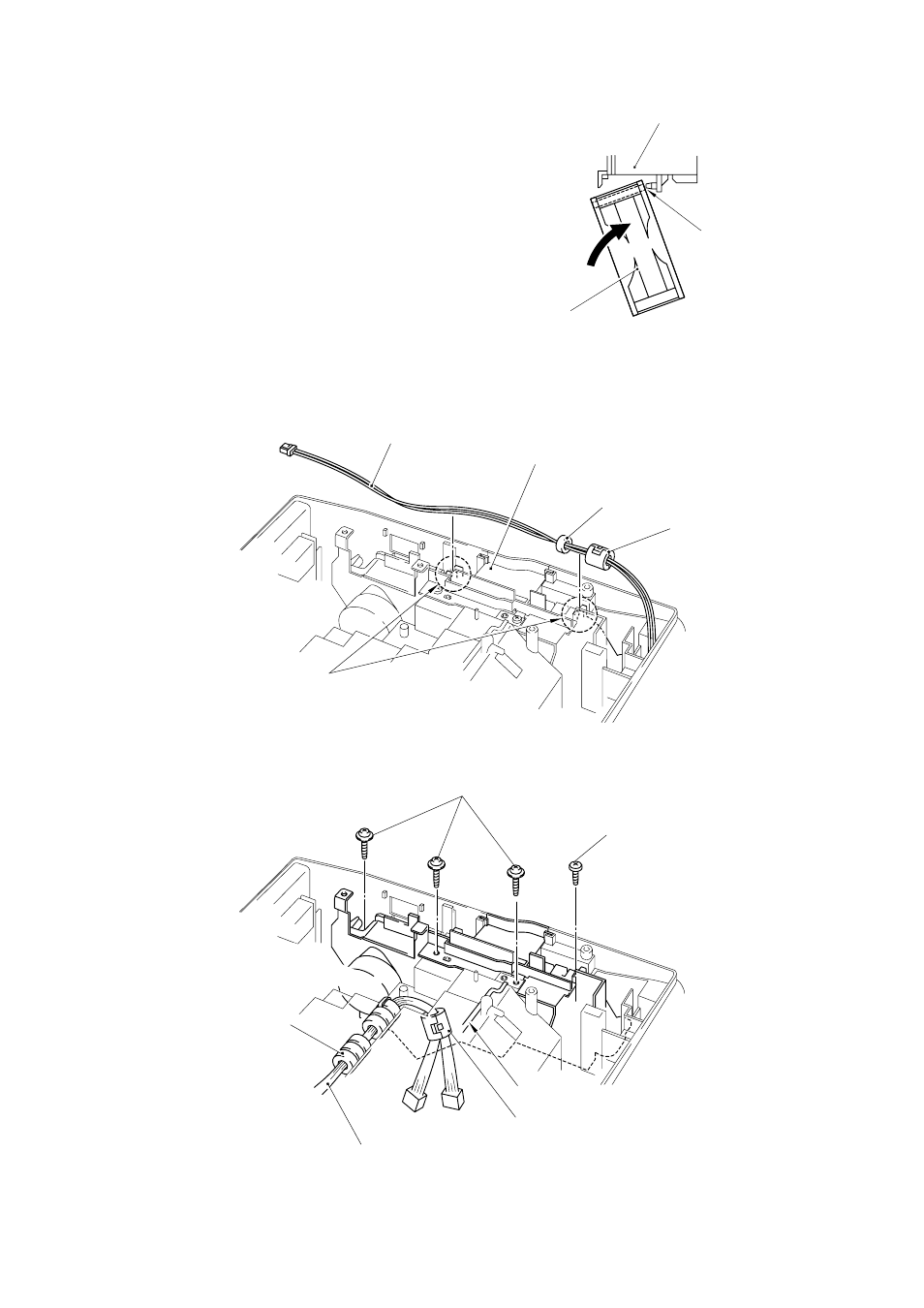

Fig. 3-25
3.15 Drive Unit
(1) Unhook the heater harness from the drive unit.
Fig. 3-26
(2) Remove the three M4x20 and one M4x12 screws securing the drive unit.
Fig. 3-27
Heater harness
Drive Unit
Hook
Taptite, cup M4x20
Fan Motor
Fan motor holder
Electrode DRB1
Taptite, cup M4x12
Ferrite Core
(HL-1050 only)
Ferrite Core
(HL-1050, 200V only)
Motor harness
Ferrite Core
(HL-1050, 100V only)
Ferrite Core
(HL-1050 only)
