INSTALLATION
- 5 -
3.3 Installation Procedures
3.3.1 Install the printer onto the lower tray unit
1) Place the lower tray unit on a solid, flat surface where the printer is to be installed
ensuring that the conditions in sections 3.1.1 and 3.1.2 are complied with.
2) Check that the set-up guides R/L are fixed onto the lower tray unit.

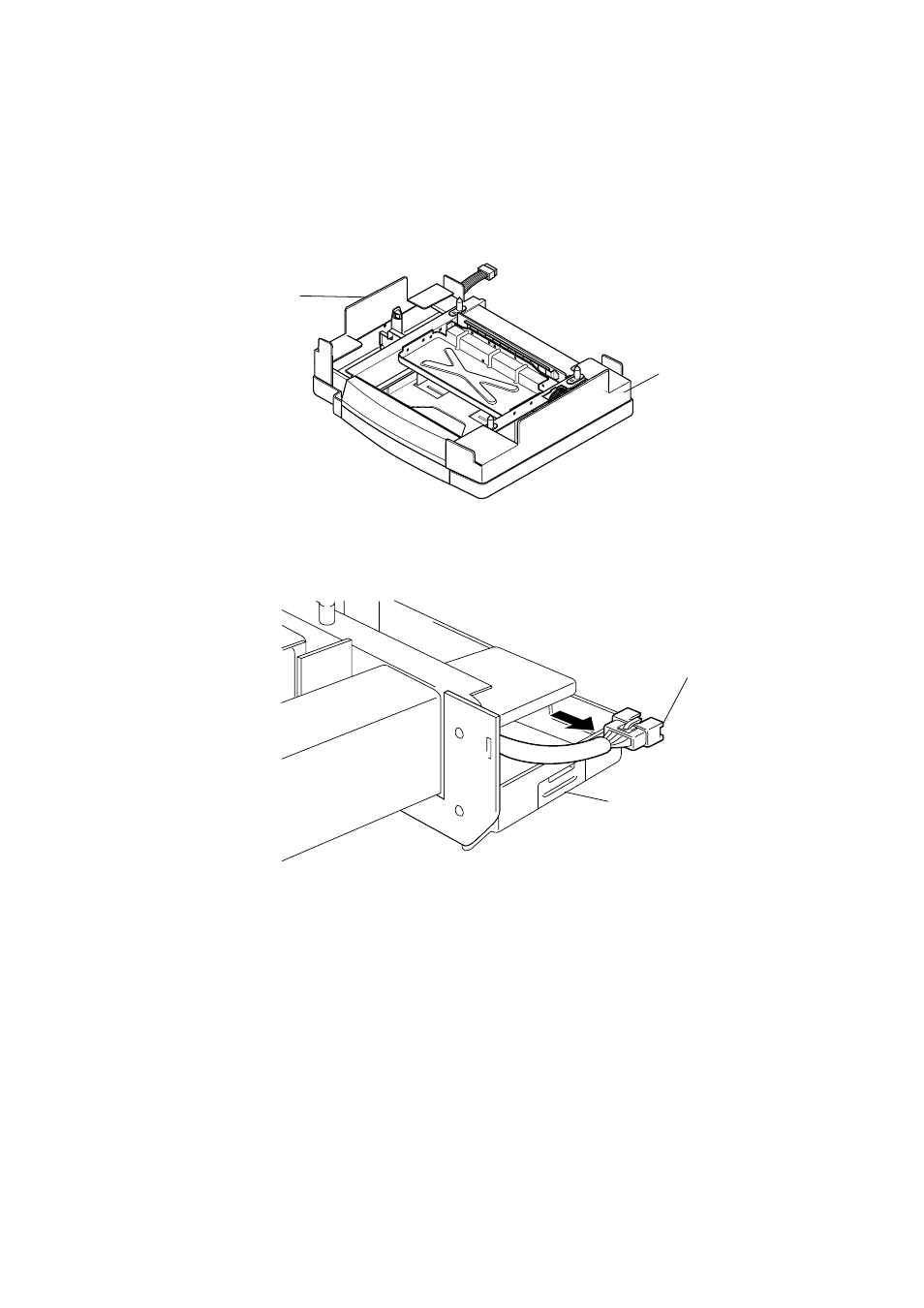

Fig. 4
3) Pull out the LT signal connector which is located at the rear left side of the unit, and
remove the LT connector cover from the lower tray unit.
Fig. 5
LT connector cover
Set-up Guide (R)
Set-up Guide (L)
LT Signal Connector
