PRODUCT OUTLINE
- 1 -
1. PRODUCT OUTLINE
1.1 Parts Names & Functions

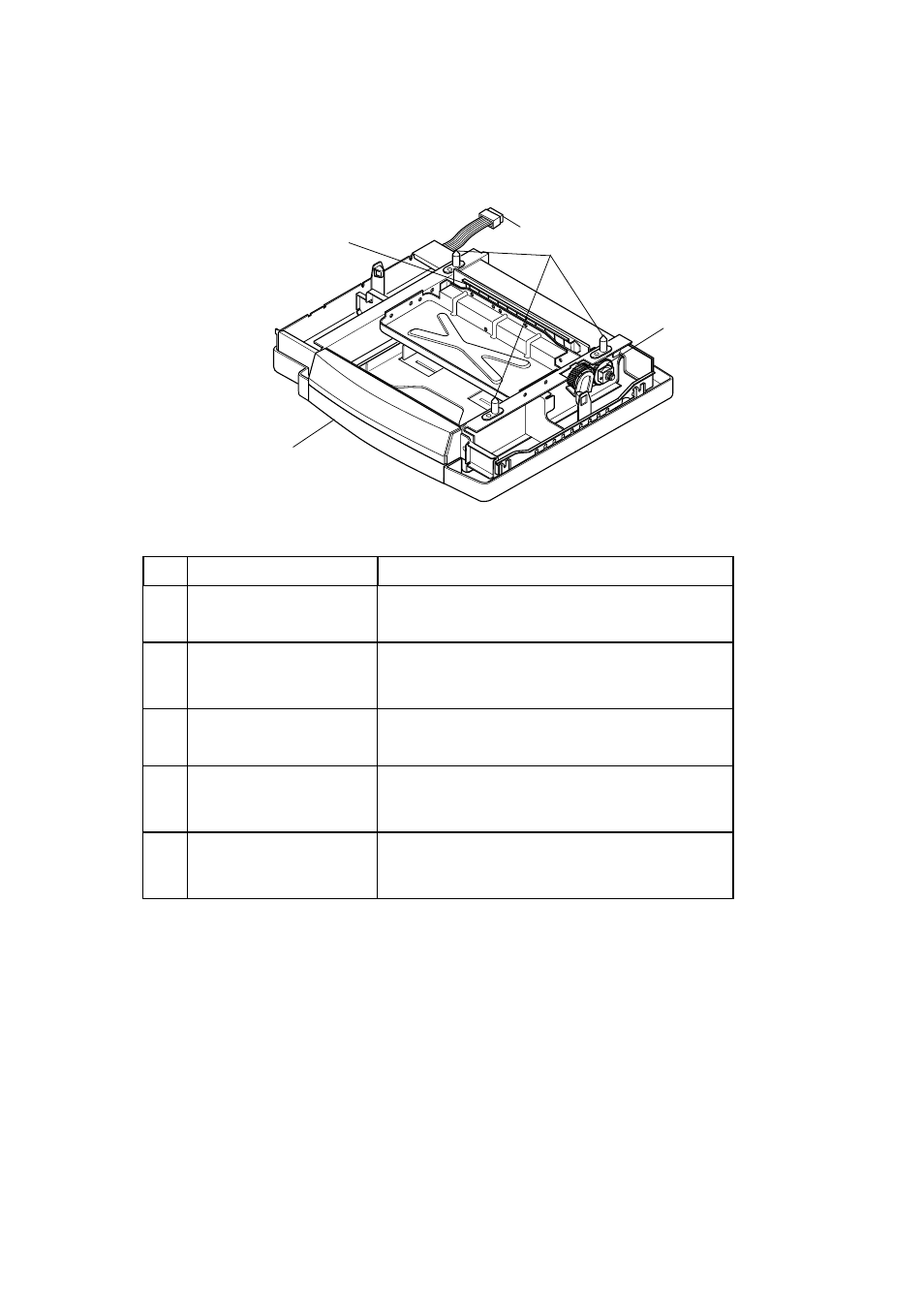

Fig. 1
No. Parts Name Outline of Function
1 Media Cassette To feed paper automatically
2 Paper Guide (LTU)
To guide paper from the media cassette to the
printer.
3 Paper Feeding Clutch To transport paper from the media cassette.
4 Guide Pins
Guide pin to correctly locate the printer onto the
lower tray unit.
5 LT Signal Connector
Connection to the printer to control the lower tray
unit.
5. LT Signal Connector
3. Paper Feeding Clutch
2. Paper Guide (LTU)
1. Media Cassette
4. Guide Pins
