4.2.2.3 Slave Control Panel

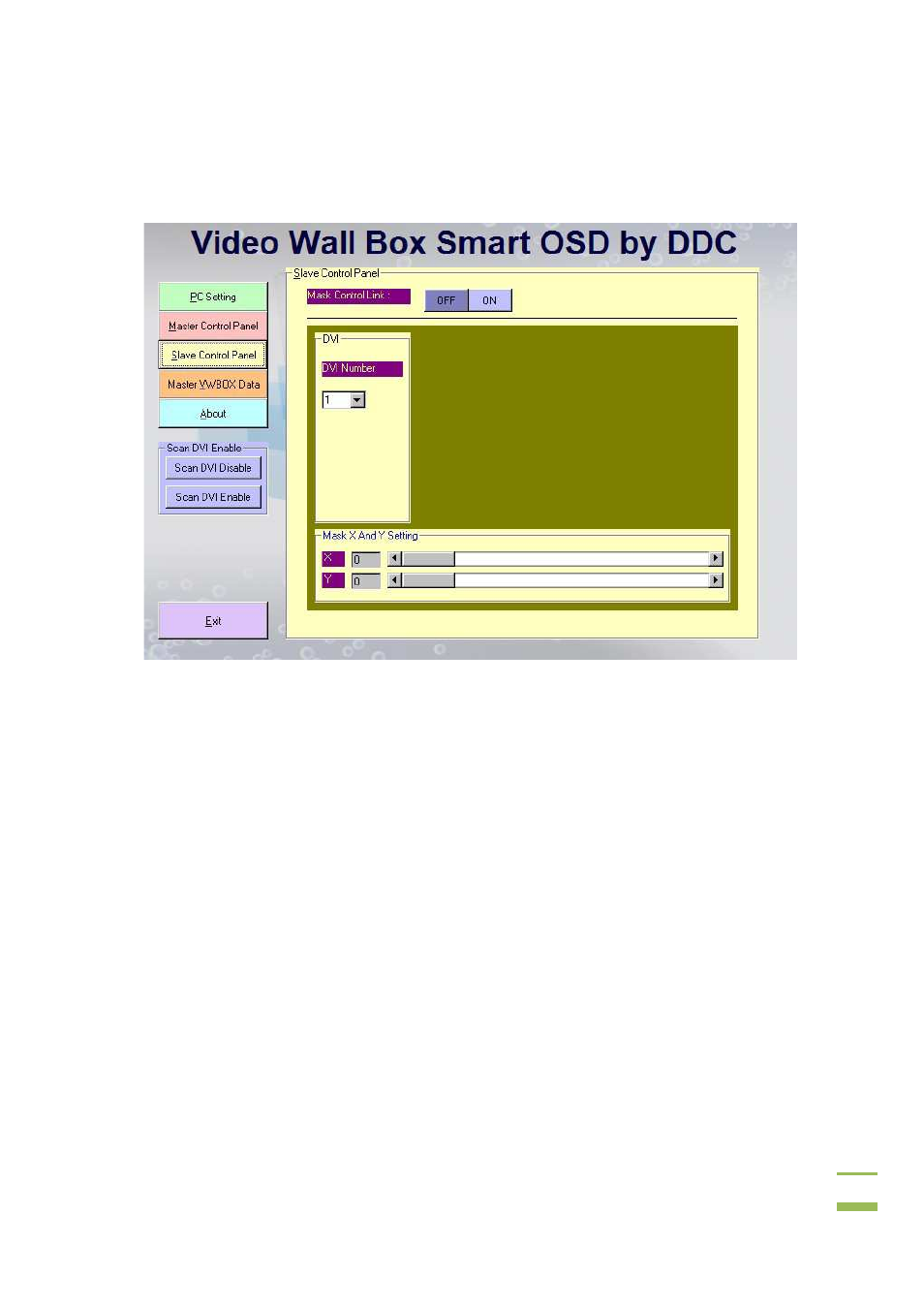

Figure 4-23: SmartOSD Slave Control Panel
Mask Control Link
Enable/disable the mask link between the master and slaves.
When the mask control link has been disabled, the slave controllers can be managed by
the following options.
DVI Number
DVI number selects the target slave controller to be managed.
Mask Control
The Mask Control options allow the images to be adjusted to compensate for the gaps
between monitors in the video array.
Off
The images are shown without any adjustments
