4.1.2.4 Settings

This menu shows the output resolution of the attached monitors.

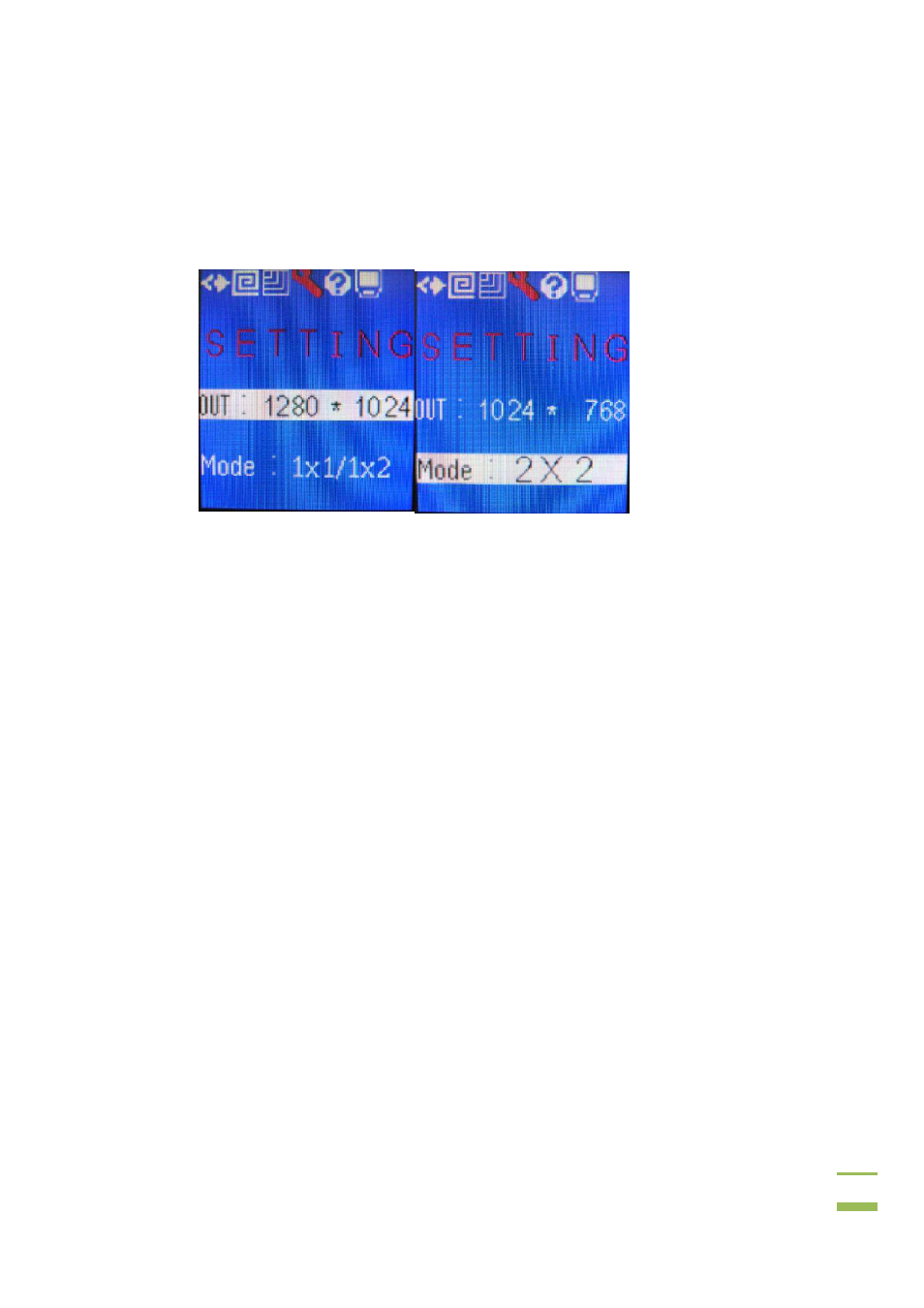

Figure 4-5: Settings

OUT

This setting is the output resolution to the attached monitor or slave controller.

MODE

This setting shows the video output mode of the video box.

1 x 1

Clone mode

2 x 1

Vertical replication mode

2 x 2

2 x 2 video array

4 x 1

4 x 1 video array

3 x 1

3 x 1 video array

1 x 4

1 x 4 video array

1 x 3

1 x 3 video array
