3.6 Resolution and Display Mode Charts
The display modes are automatically set according to the input resolution. The input and
output resolutions for iVW-UD322 are shown in the following subsections.

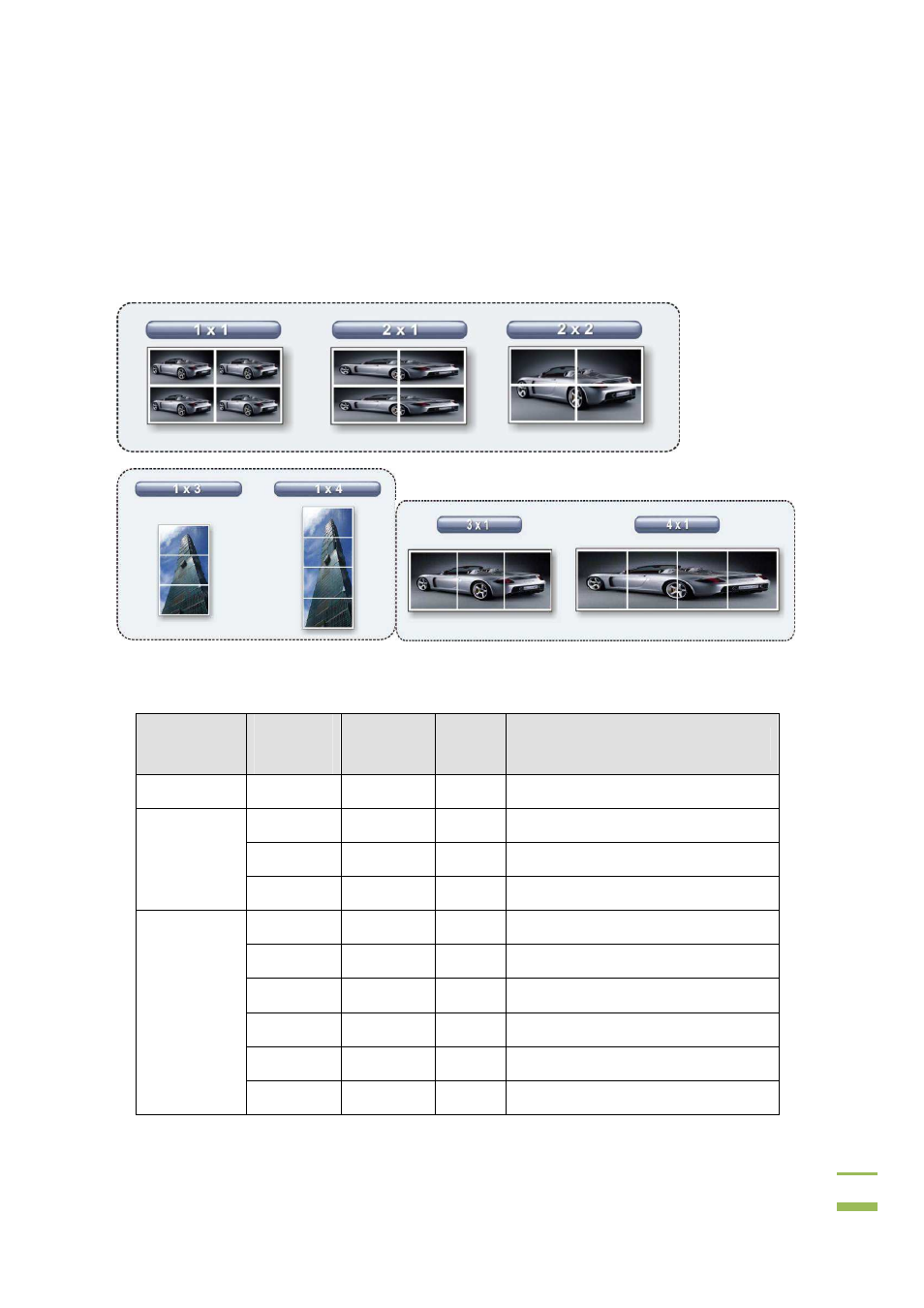

Figure 3-3: Display Modes
Mode
Input
Resolution
Output
Resolution
Vertical
Hz
Monitor Ratio / Notes
1x1 1024x768 1024x768 60 4:3
2x1
2560x1024 1280x1024 60 5:4
3840x1080 1920x1080 60 16:9
3840x1200 1920x1200 60 16:10
2x2
2048x1536 1024x768 60 4:3
2560x2048 1280x1024 60 5:4
2560x1440 1280x720 60 16:9
2560x1600 1280x800 60 16:10
2720x1536 1360x768 60 16:9
3840x2880 1920x1440 60 4:3
