4.1.2.3 Slave Mask Setting
The slave mask setting shows the mask setting on the slave video boxes.

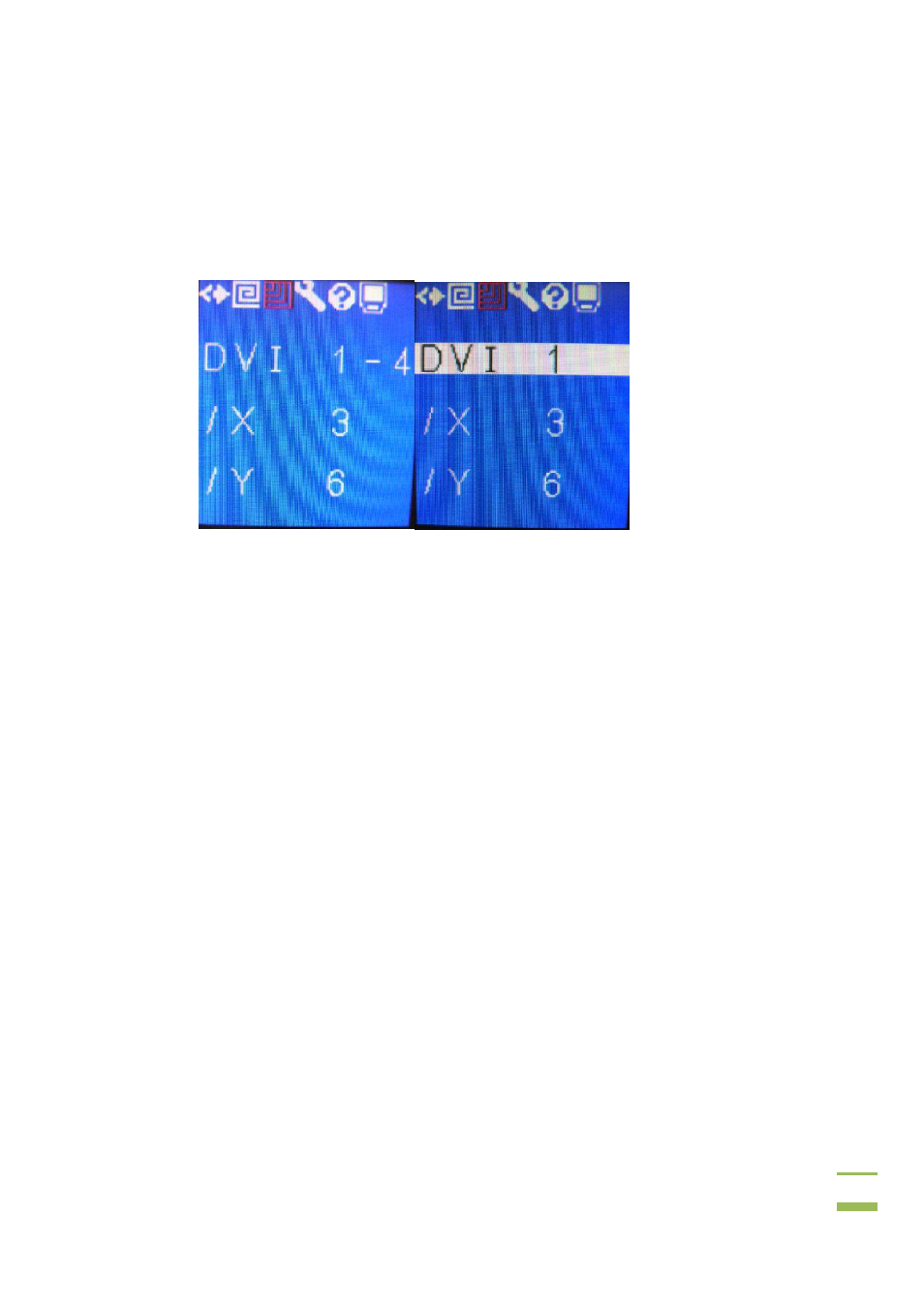

Figure 4-4: Slave Mask Setting
DVI
This setting indicates which slaves settings are shown.
DVI 1-4
Mask link is on, and all slaves have the same setting
DVI 1
Mask link is off. The first slave controller's settings are shown
DVI 2
Mask link is off. The second slave controller's settings are shown
DVI 3
Mask link is off. The third slave controller's settings are shown
DVI 4
Mask link is off. The fourth slave controller's settings are shown
/X
Displays the horizontal bezel setting of the slave controller.
/Y
Displays the vertical bezel setting of the slave controller.
