iVW-UD322iVW-UD322 Video Wall Controller
13

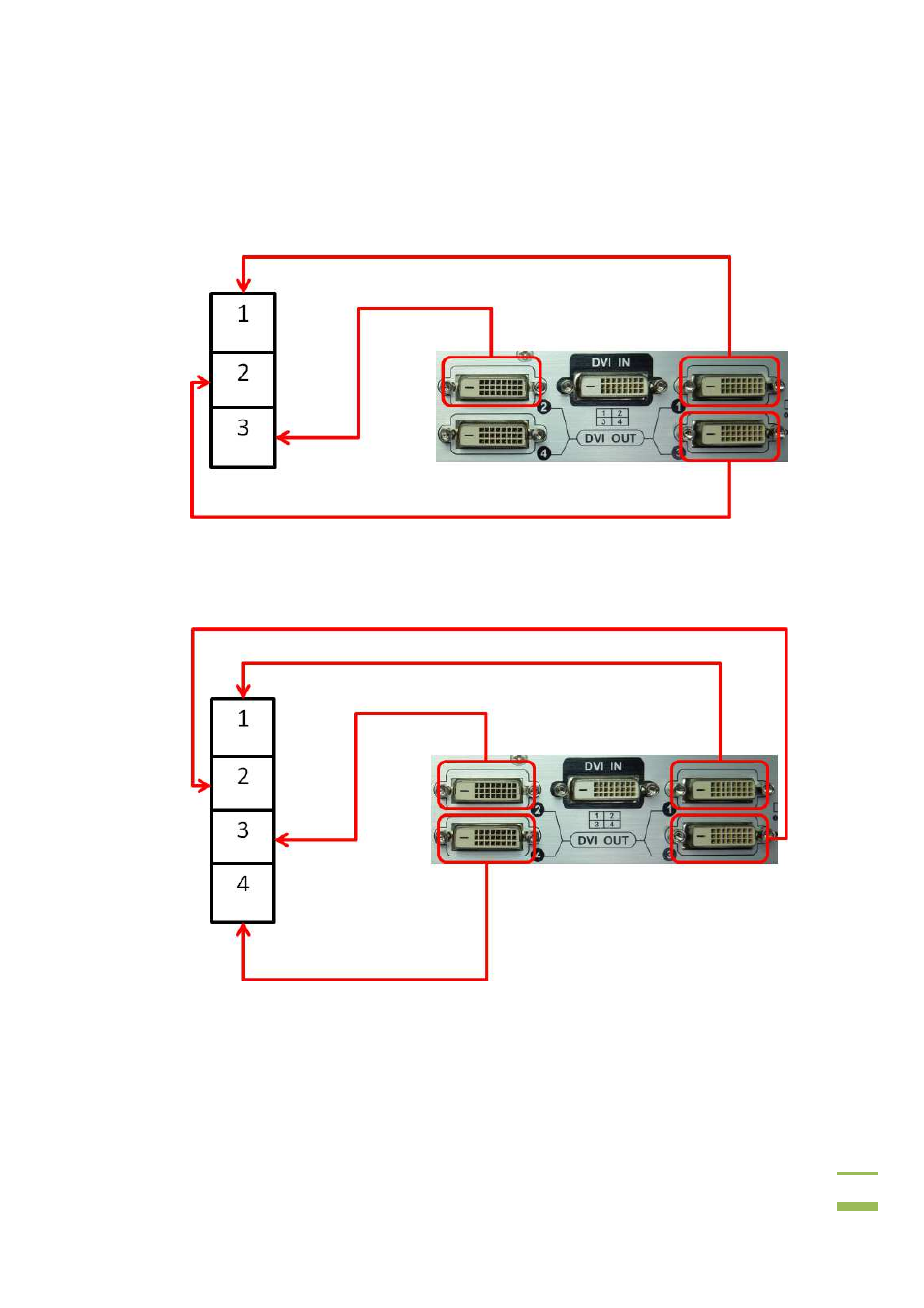

3.2.5 1 x 3
To setup three monitors vertically, connect the monitors as shown below.
3.2.6 1 x 4
To setup four monitors vertically, connect the monitors as shown below.
3.3 Install LCD Panels
The monitors should be installed in one of the configurations shown in the previous
section. Recommended installation procedures are to:
