iVW-UD322iVW-UD322 Video Wall Controller
3
1.4 External Interfaces, Switches and LEDs
This section gives and overview of the connectors, switches and indicators on the
iVW-UD322.
1.4.1 Front Panel
The front panel has the following buttons and indicators:
Power LED indicator
Video output LED indicator
Video input LED indicators
OSD buttons
Infrared sensor

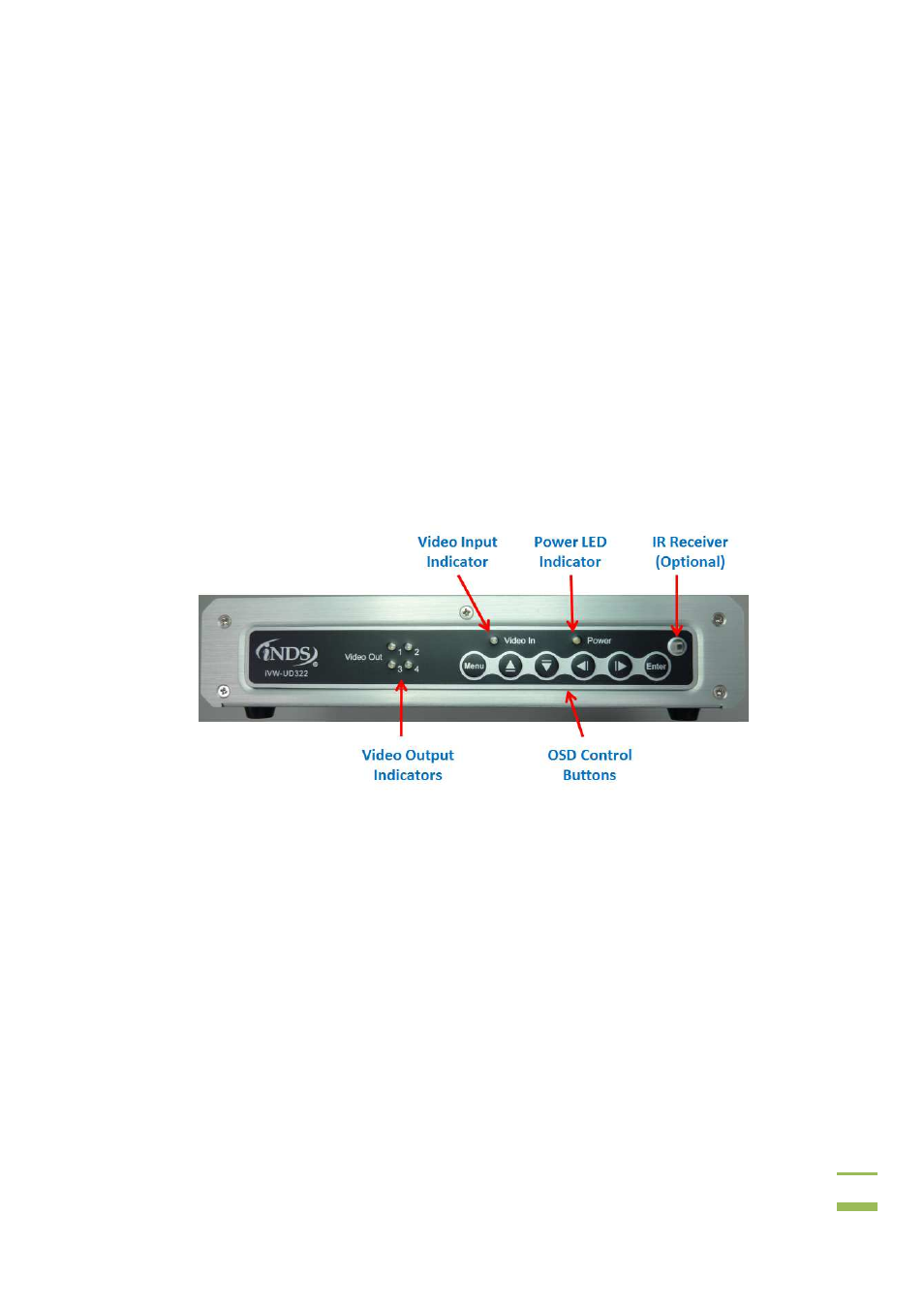

Figure 1-2: iVW-UD322 Front Panel
1.4.2 Rear Panel
The rear panel has the following connectors, switches and indicators:
4 x DVI output
1 x DVI input
1 x Power input
1 x Power switch
1 x RS-232 port
1 x Optical fiber input / output
(iVW-UD322F only, for frame sync between multiple iVW-UD322F controllers)
