4.2.2.2 Master Control Panel
The control panel page presents all the adjustable settings for the video wall controller.

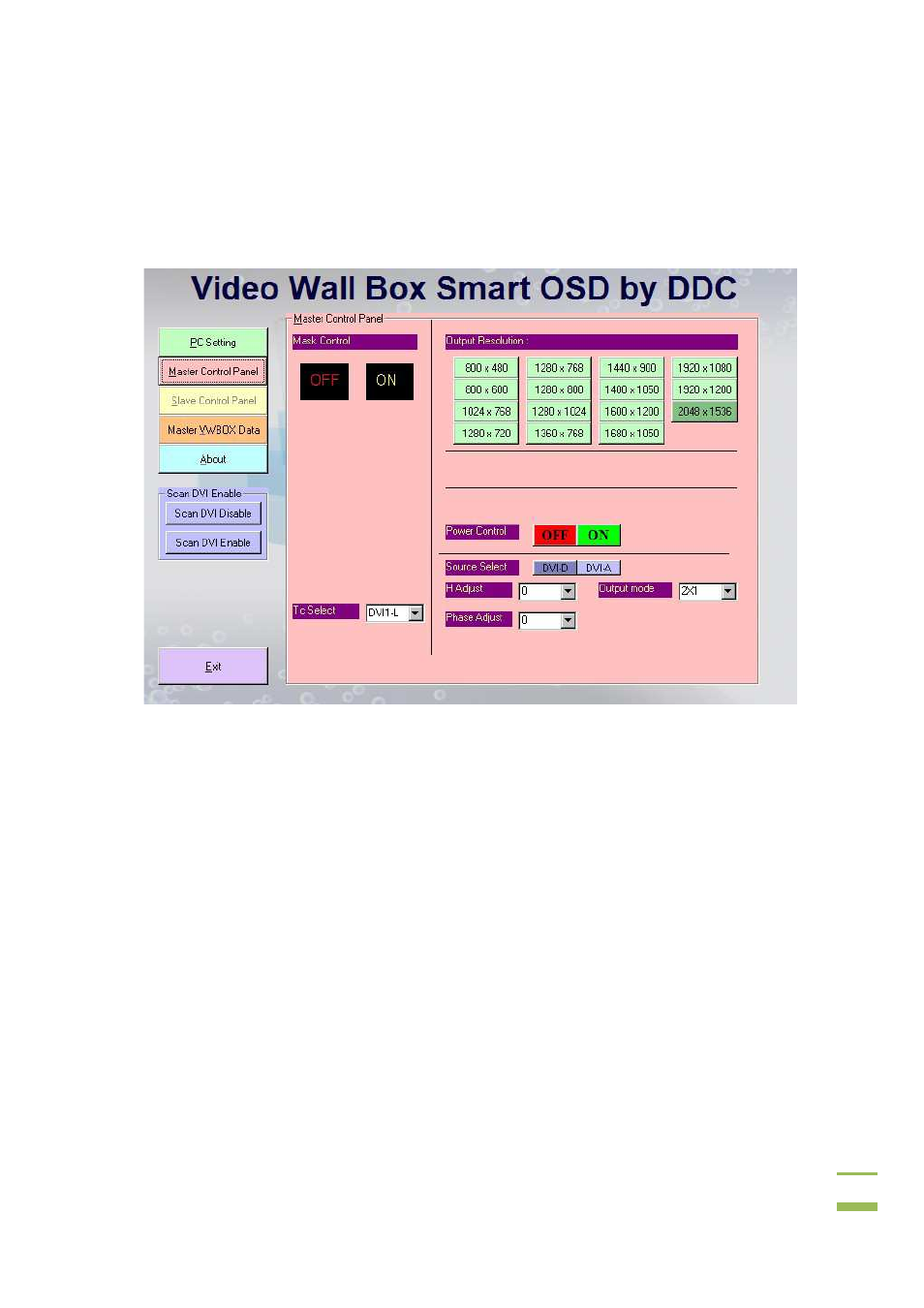

Figure 4-22: SmartOSD Master Control Panel
Mask Control
The Mask Control options allow the images to be adjusted to compensate for the gaps
between monitors in the video array.
Off
The images are shown without any adjustments
On
The value of X and the value of Y can be adjusted to compensate for
gaps between monitors (for single controller)
MR
The right side is fixed and the left side changes when adjustments
are made (for right side controller in the dual controller configuration)
ML
The left side is fixed and the right side changes when adjustments
are made (for left side controllerin the dual controller configuration)
