iVW-UD322iVW-UD322 Video Wall Controller
11
3.2 Panel Setup Options
The iVW-UD322videl wall controller supportspanel setup as shown in the subsections
below. Dark black sections indicate the panels for the installation, and the bold number
indicate which video output.
3.2.1 2 x 2

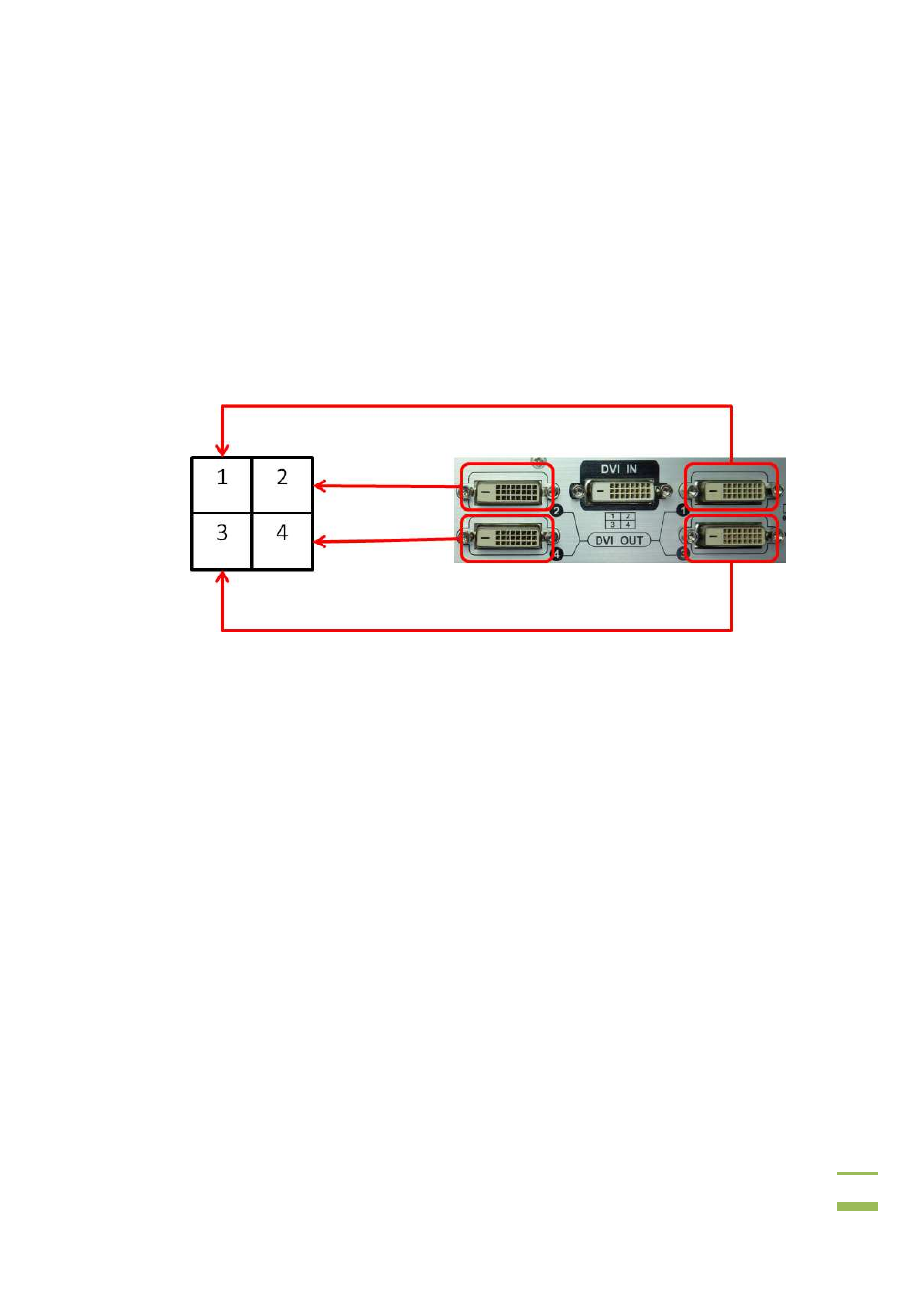

To setup four monitors as a 2 by 2 array, connect the monitors as shown below.
