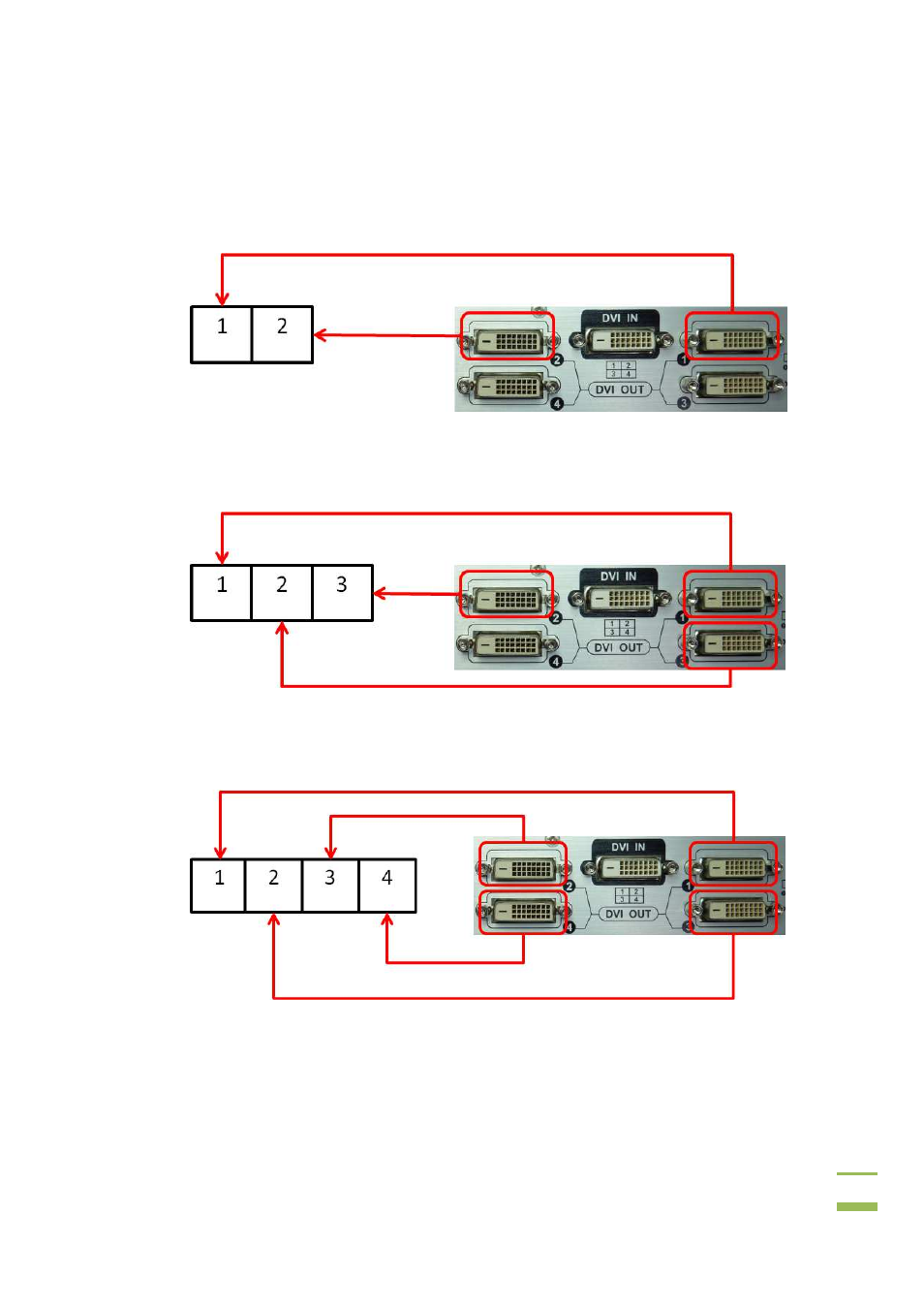

3.2.2 2 x 1
To setup two monitors horizontally, connect the monitors as shown below.
3.2.3 3 x 1
To setup three monitors horizontally, connect the monitors as shown below.
3.2.4 4 x 1
To setup four monitors horizontally, connect the monitors as shown below.
