12 FotoShow ™ Digital Image Center User’s Manual

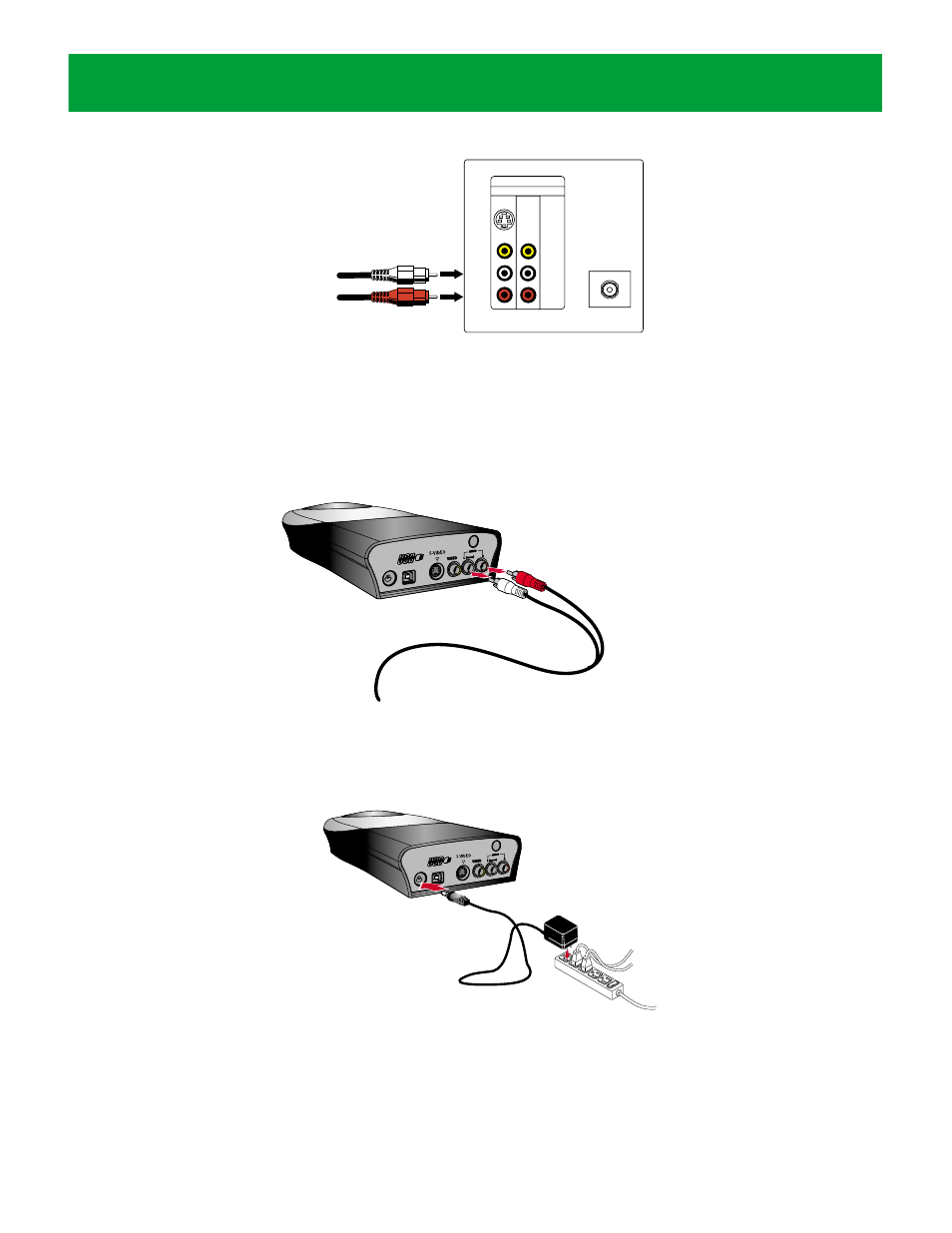

4.Connect the RCA audio cable to the audio connectors on the back of your FotoShow
Image Center.
Make sure you match the white cable connector with the white (left, mono) AUDIO
OUT
connector on the back of your FotoShow ™ Image Center. If you connected the
Red (right) RCA connector in step 3, make sure that you connect the red cable
connector to the red (right) AUDIO OUT connector on the back of your FotoShow
Image Center. The red connector is optional
5.Connect the power supply to your FotoShow ™ Image Center and then plug it into an
outlet. Press the POWER button on your FotoShow remote control.
Ensure the green power light on the front of the FotoShow Image Center comes on
after you have connected the power supply cable.
6.Turn on your TV set and set it to the appropriate video input.
Most TVs will have either AUX (auxiliary) or VIDEO input channels. Many TV remote
controls have either a TV/VCR or a TV/VIDEO button that changes the video input.
Refer to the manual that came with your TV for more information on choosing the
TELEVISION BACK
AUDIO/VIDEO
IN OUT
VIDEO
LEFT
AUDIO
RIGHT
AUDIO
S-
VIDEO
VHF/UHF
