Chapter 19 RMON-Lite
ES-1528 User’s Guide
124
19.4.3 RMON History Statistics : Overview
Use the RMON History Statistics : Overview screen to view the results of statistical
sampling on the ports. Select [2] History Statistics from the RMON MIB Table: drop down
listbox in the RMON-Lite screen to view the screen as shown.

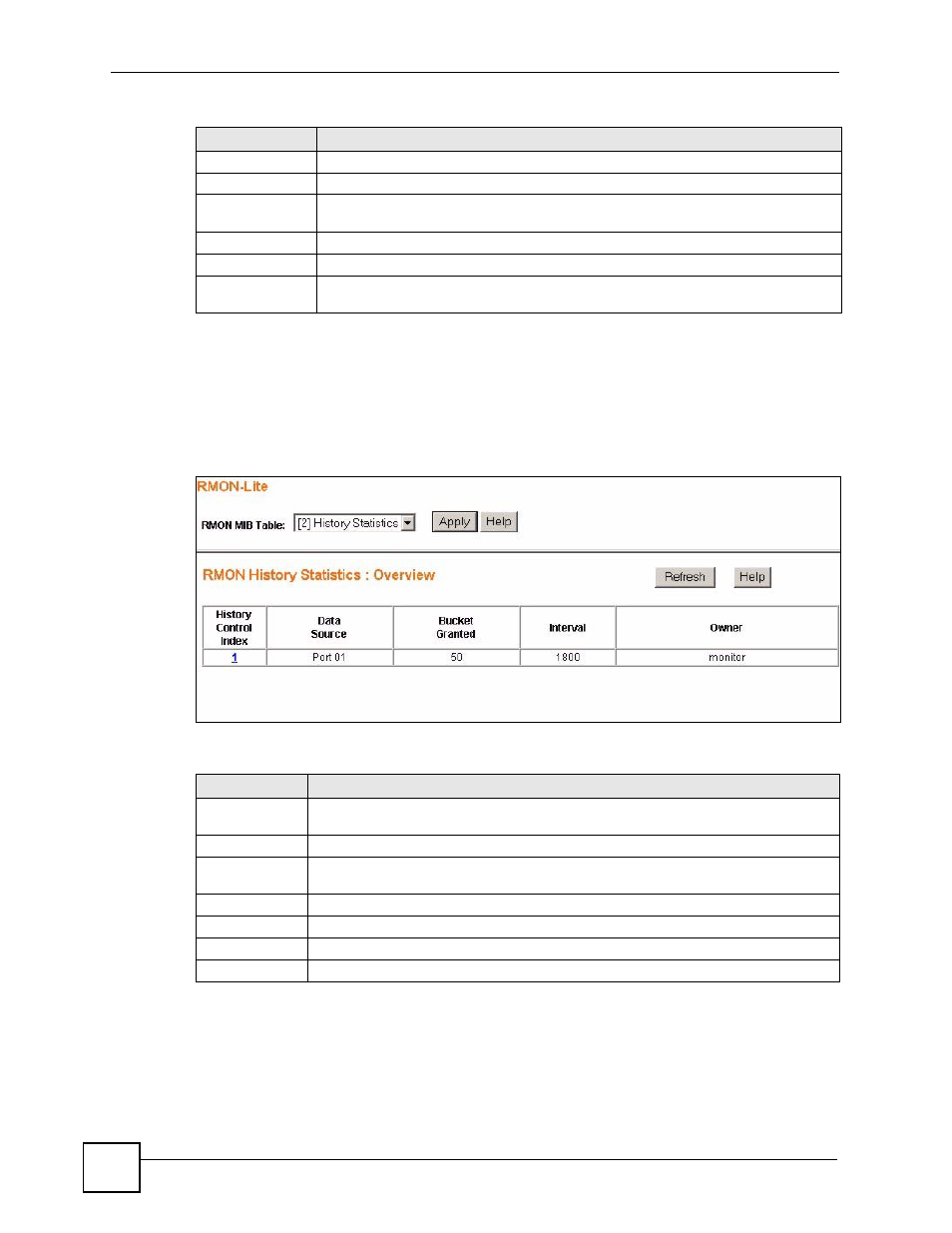

Figure 76 RMON History Statistics : Overview.
The following table describes the labels in this screen.
BucketRequested This field displays the number of samplings the Owner of the entry requests.
Interval
Enter the time (in seconds) between data samplings.
Owner Enter a descriptive name of the application that creates this entry. You can use 1-64
printable characters. Spaces are not allowed.
Status Select Enable/Disable to activate or deactivate statistical sampling on the port.
Apply Click this to save the settings on the switch.
History Control
Overview
Click this to go back to the RMON History Control : Overview screen.
Table 56 RMON History Control : Modify (continued)
LABEL DESCRIPTION
Table 57 RMON History Statistics : Overview
LABEL DESCRIPTION
RMON MIB
Table:
Use this drop down list box to select the MIB table you want to view. Click Apply to
refresh the screen to the selected MIB table view.
Refresh Click this to update all the fields in the RMON History Statistics : Overview screen.
History Control
Index
This field displays the configuration index number. Click on the index number to view
the details for this entry.
Data Source This is the port of the switch polled for data.
Bucket Granted This field displays the number of data samplings the probe allows to store.
Interval
This field displays the time between data samplings in seconds.
Owner This field displays the creator of this entry.
