Modular LYNX System 12.05.2003
S e c t i o n 9
T h e I s o l a t e d D i g i t a l I / O M o d u l e
S e c t i o n O v e r v i e w
The Isolated I/O Module (IMS Part # LX-DI100-000) offers the user an additional 12 Isolated +5 to 24VDC
General Purpose I/O lines in two groups of six each (Groups 40 and 50) for a total of 24 individually program-
mable I/O when used with the LYNX CM100 Control Module or 18 when used with the CM200 Combination
Control Module.
!
Hardware Specifications
! Environmental Specifications
! Mechanical Specifications
!
Pin Assignments
!
Switch Assignments
!
Input Specifications
!
Input Filtering
!
Output Specifications
H a r d w a r e S p e c i f i c a t i o n s
E n v i r o n m e n t a l S p e c i f i c a t i o n s
Ambient Operating Temperature .............................................. 0 to +50 degrees C
Storage Temperature ................................................................ -20 to +70 degrees C
Humidity .................................................................................. 0 to 90% non-condensing
M e c h a n i c a l S p e c i f i c a t i o n
0.39
(9.9)
4.39 max
(111.5)
3.75 max
(95.3)
0.9 max
(22.9)

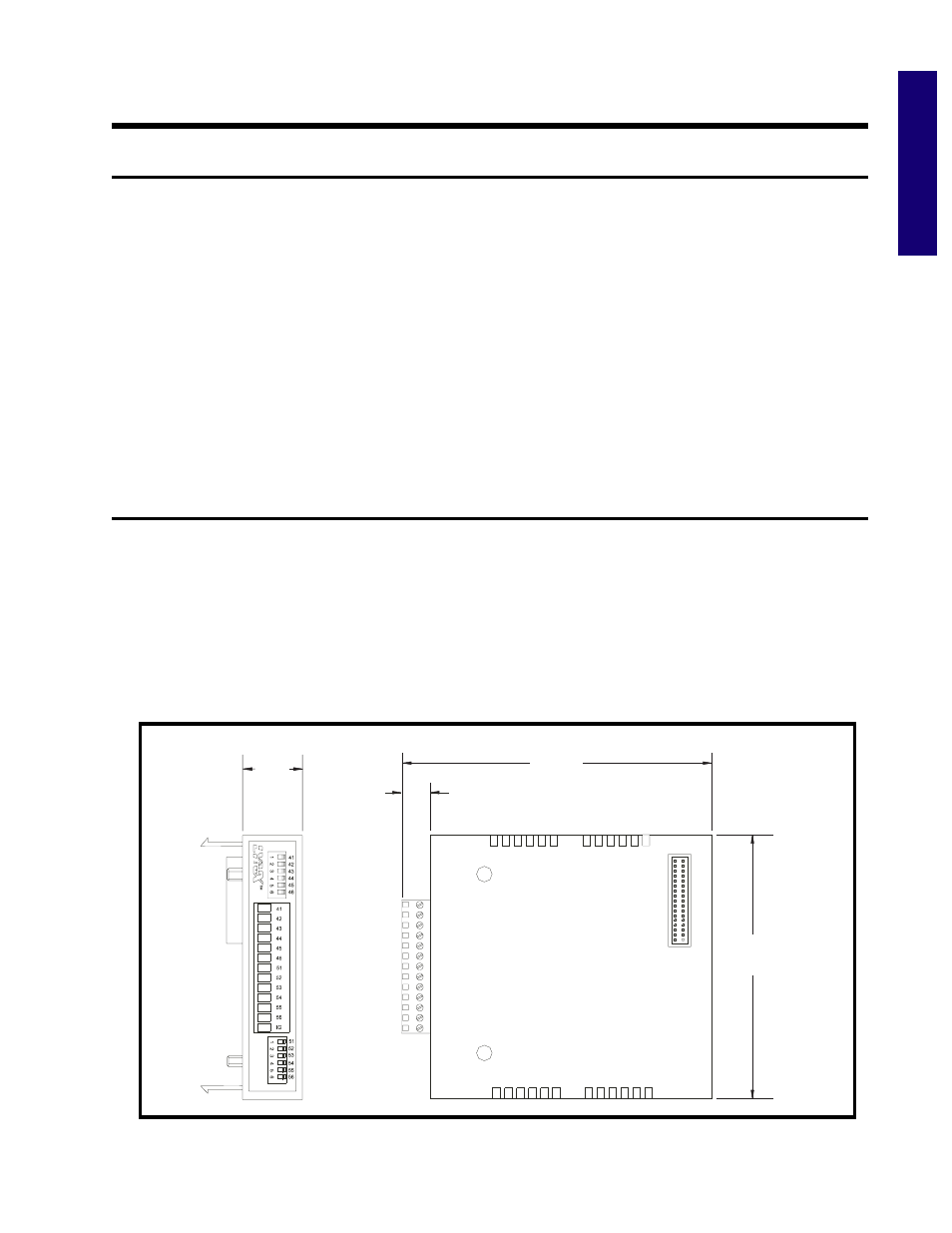

Figure 9.1: LYNX Isolated I/O Module Dimensions
Dimensions in Inches (mm)
