15
CH STATUS/CH SEL
1 2 3 4 5 6 7 8 TRACK
9 10 11 12 13 14 15 16 TRACK
A B C D E F G H INPUT
ORANGE CH STATUS INPUT RED REC GREEN PLAY MUTE
EQ/COMP
EFF1/EFF2 HI-G/F/Q
AUX1/AUX2 MID-G/F/Q
PAN LO-G
FADER CH VIEW
PRE/POST
PRE/POST
COMP
MUTE MUTE
EFF1 EFF2
CH PARAM EDIT
EFF EDIT
OFF
CH STATUS/CH SEL
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
MASTER
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
+6
-10
-20
-40
-
∞
-30
0
RECALL STORE
DIRECT RCL MAP
SCENE
CLEAR
11
12
11
12
14
13
16
23
24
15
18
17
20
19
22
21

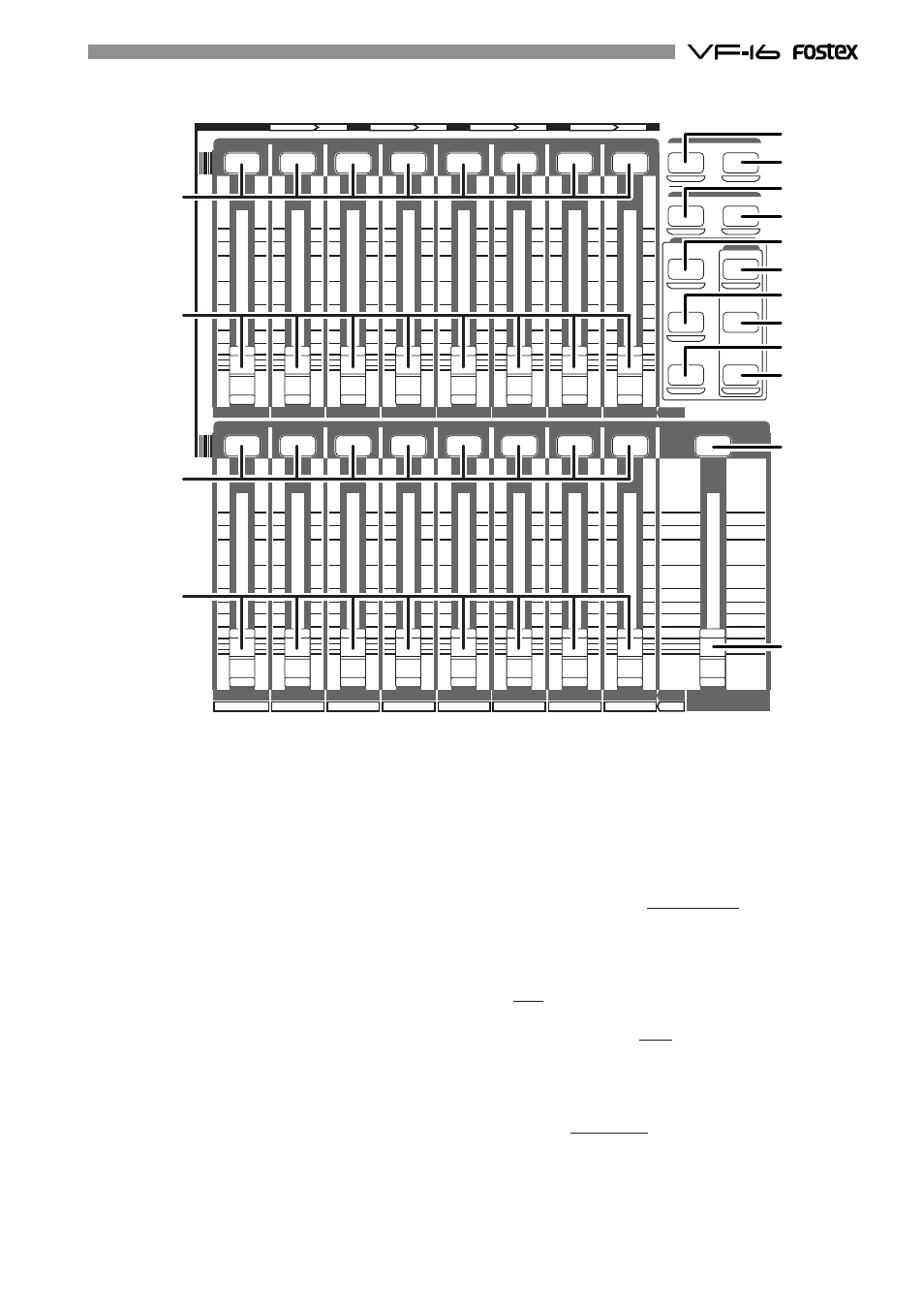

Mixer Section
11. [CH STATUS/CH SEL] Key: channels 1-16
* ON/OFF key for each channel during normal display
(explained later).
* Select the channel to CHECK/CHANGE the setting with
([CH PARAM EDIT] Key (No. 17-22) when CHECKING/
CHANGING various PAN, equalizer and other mixer
parameters.
* Select the recorder track (1-16) for REC READY or REC
CANCEL (SAFE) status (flashing [REC ASSIGN-DIRECT]
key or [REC ASSIGN-BUSS] key]) when selecting the
track to record.
* The flashing key illustrates the following STATUS:
[ORANGE]: The level of the input signals [INPUT] into input
A to H are adjustable. Only channels 9-16 are
adjustable with the fader.
[GREEN]: The level of the audio [TRACK (PLAY)] on the
track are adjustable with the fader.
[OFF]: The signals to the fader are [MUTE] (no
sound).
[RED]: The corresponding tracks (1-16) are READY
(to record). The [GREEN] and [RED] key will
alternately flash. The light will remain ON
during the recording process.
12. Channel Fader: channels 1-16
* The 1-8 channel faders are used to adjust the audio
level [TRACK] of tracks 1-8.
* The 9-16 channel faders are used to adjust the sound
level of signals input into A to H or audio levels
[TRACK] of 9-16. Use the [INPUT SEL] key to choose
which level to adjust.
13. [SCENE-RECALL/DIRECT RCL] Key
* This is used to recall the scene memory.
* Press this key while the [SHIFT] key is depressed for
direct scene memory recall.
* Simultaneously press this key and the [SCENE-STORE/
MAP] key to erase the scene memory.
14. [SCENE-STORE/MAP] Key
* This is used to store scene memory.
* Press this key while the [SHIFT] key is depressed to
CHECK/CHANGE the scene map.
* Simultaneously press this key and the [SCENE-
RECALL/DIRECT RCL] key to erase the scene memory.
