Combi HP thermostatic mixer shower

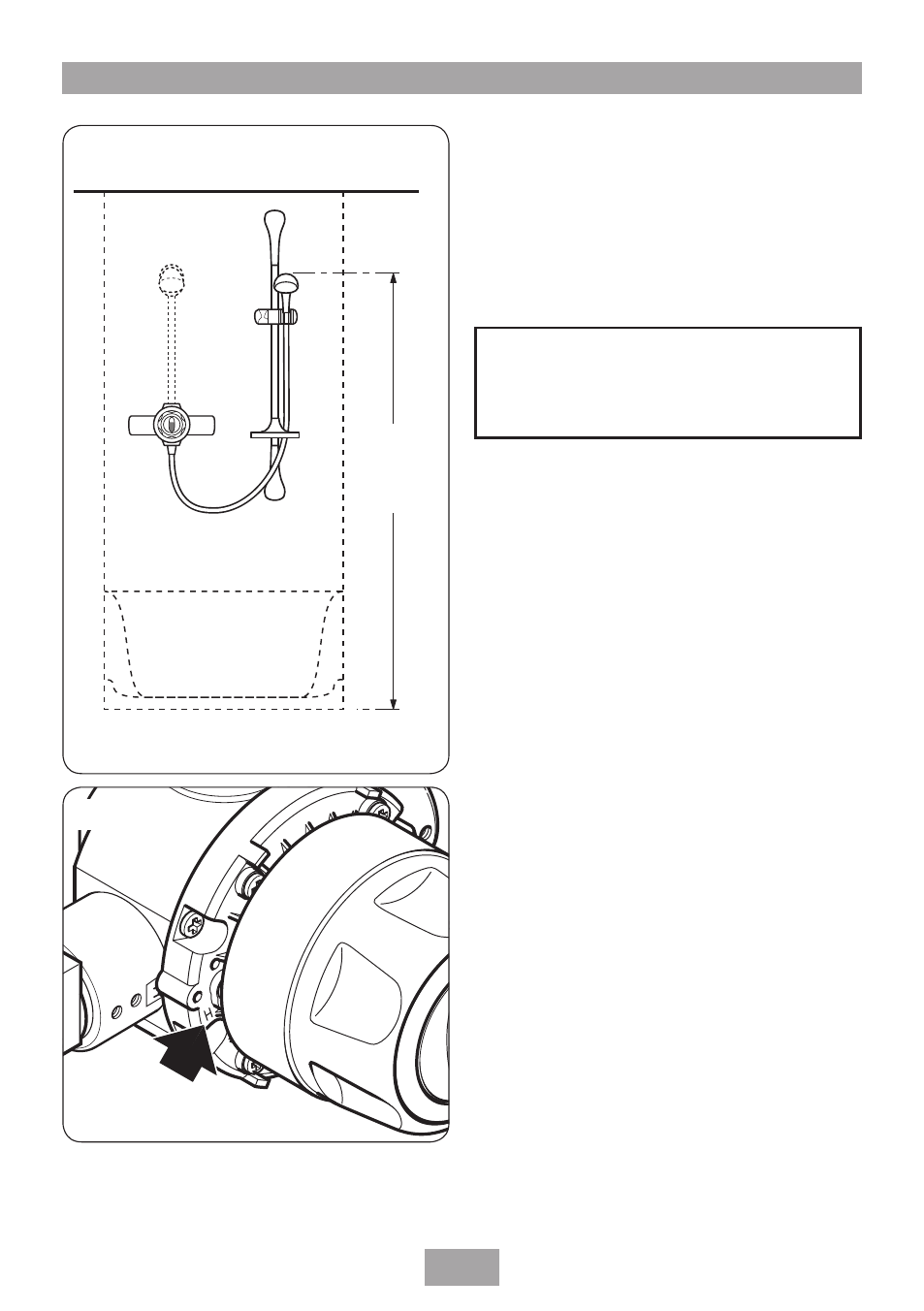

Height of
showerhead
and shower
to suit user’s
requirement.
Shower can be
mounted either side
of the riser rail
T00225
Before starting the installation, make sure all the
openings on the valve are carefully covered to
prevent ingress of any debris etc.
Note: It is not necessary to remove the control
knobs at any stage.
SITInG OF THE SHOwER
SITING OF THE SHOWER
W-008-A
WARNING!
The shower must not be positioned
where it will be subjected to freezing
conditions.
Refer to fig. for correct siting of the shower.
Position the shower and showerhead on the wall
so that all controls can be comfortably reached
while using the shower. The showerhead and
riser rail can be positioned either side of the
shower.
Note: Pipe entry for both surface-mounted and
flush-fitted valves can be from the top, bottom
or rear.
The hot entry port is on the left-hand side of the
valve and is marked on the valve with a letter ‘H’
(fig.7).
PREPARInG THE MIxER VAlVE
PREPARING THE MIXER VALVE
Fig. diagrammatic view (not to scale)
T00226
Fig.7
Surface-mounted illustrated
