HP COMBI 2180206H - Manual (Page 4)

Combi HP thermostatic mixer shower
1. Inlet nuts and olives
2. Inlet elbows
3. Valve housing
4. Outlet adaptor
5. Outlet nut and olive
6. Outlet blanking plug
7. cartridge assembly
8. Flow knob 9. Temperature knob
10. Knob trim
11. Max. temperature override
button
12. cover
13. Inlet trims
14. Outlet trim
15. Outlet blanking trim
16. Flush mount plate
17. Flush mount cover
18. Trim ring
19. cartridge fixing screws
20. nut covers
21. Pipe trims
22. Hexagonal nut
23. Shroud (flush fit only)

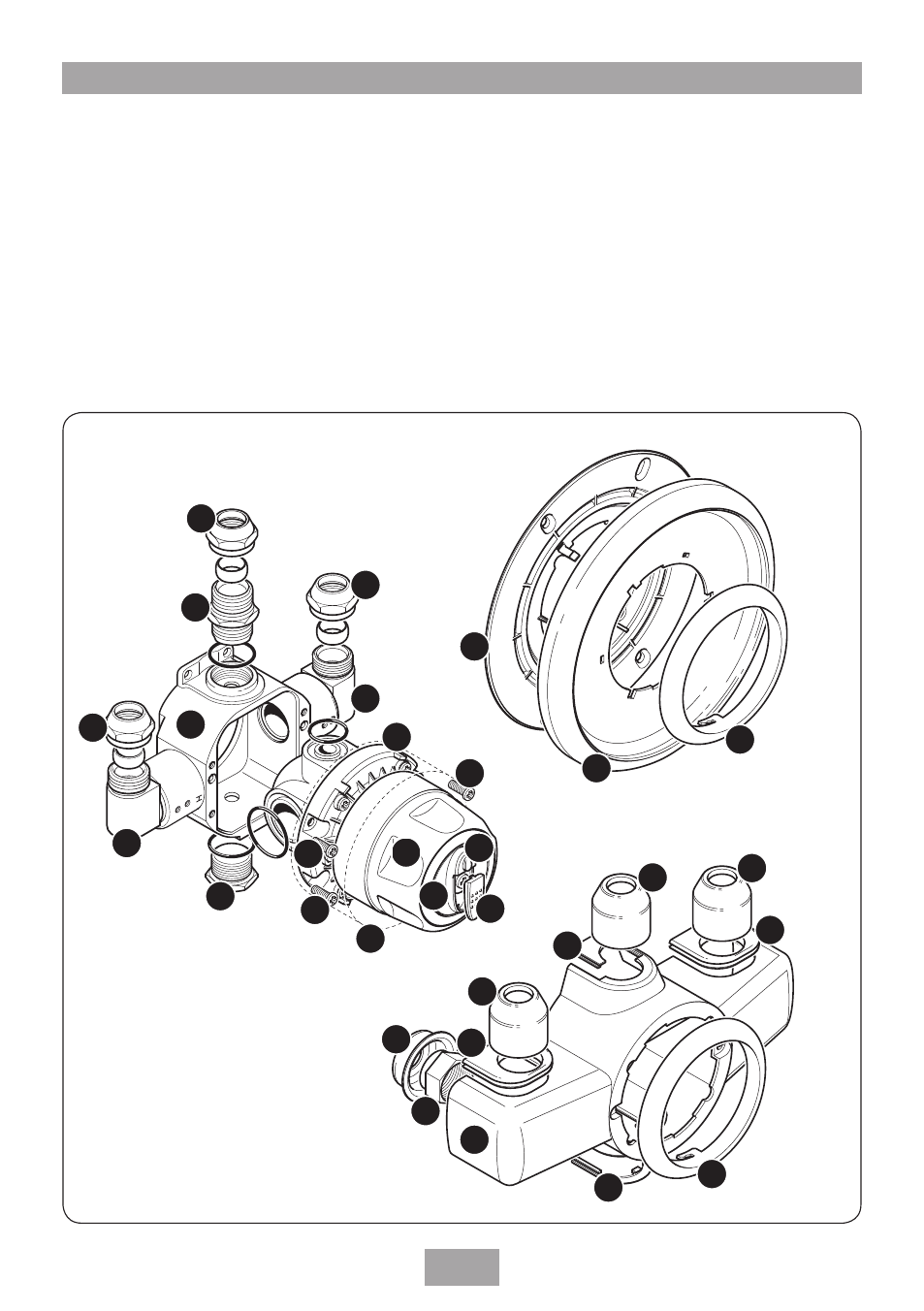

MAIn cOMPOnEnTS
MAIN COMPONENTS
(fig.)
T00220
Fig.
1
2
3
4
5
6
7
8
9
10
11
12
1
2
13
14
15
16
17
18
19
20
21
19
19
20
18
20
13
22
23
