7
Combi HP thermostatic mixer shower
T00298
1. HP valve cartridge
(built-in valve)
83304970
2. HP cartridge and brass housing
(exposed valve)
83304960
3. Outlet adaptor
chrome
7031462
gold 7031463
4. Inlet elbow assembly 83303810
5. Outlet blanking plug 7031460
6. cartridge ‘O’ rings 83303710
7. Knob set − white 83304810
8. Knob trim 7051466
9. cover shroud
white (exposed valve)
7041444
chrome (exposed valve) 7041445
gold (exposed valve) 7041446
10. Trim ring
white
7051441
chrome 7051442
gold 7051443
gold (flush) 7051477
11. Trim sets
white
83303680
chrome 83303670
gold 83303690
12. cover plate
white (built-in valve)
7051448
chrome (built-in valve) 7051449
gold (built-in valve) 7051450
13. Mounting plate
(built-in valve)
7051447
− Outlet pipe
white
TAS00404
chrome effect TAS00004
gold effect TAS00304

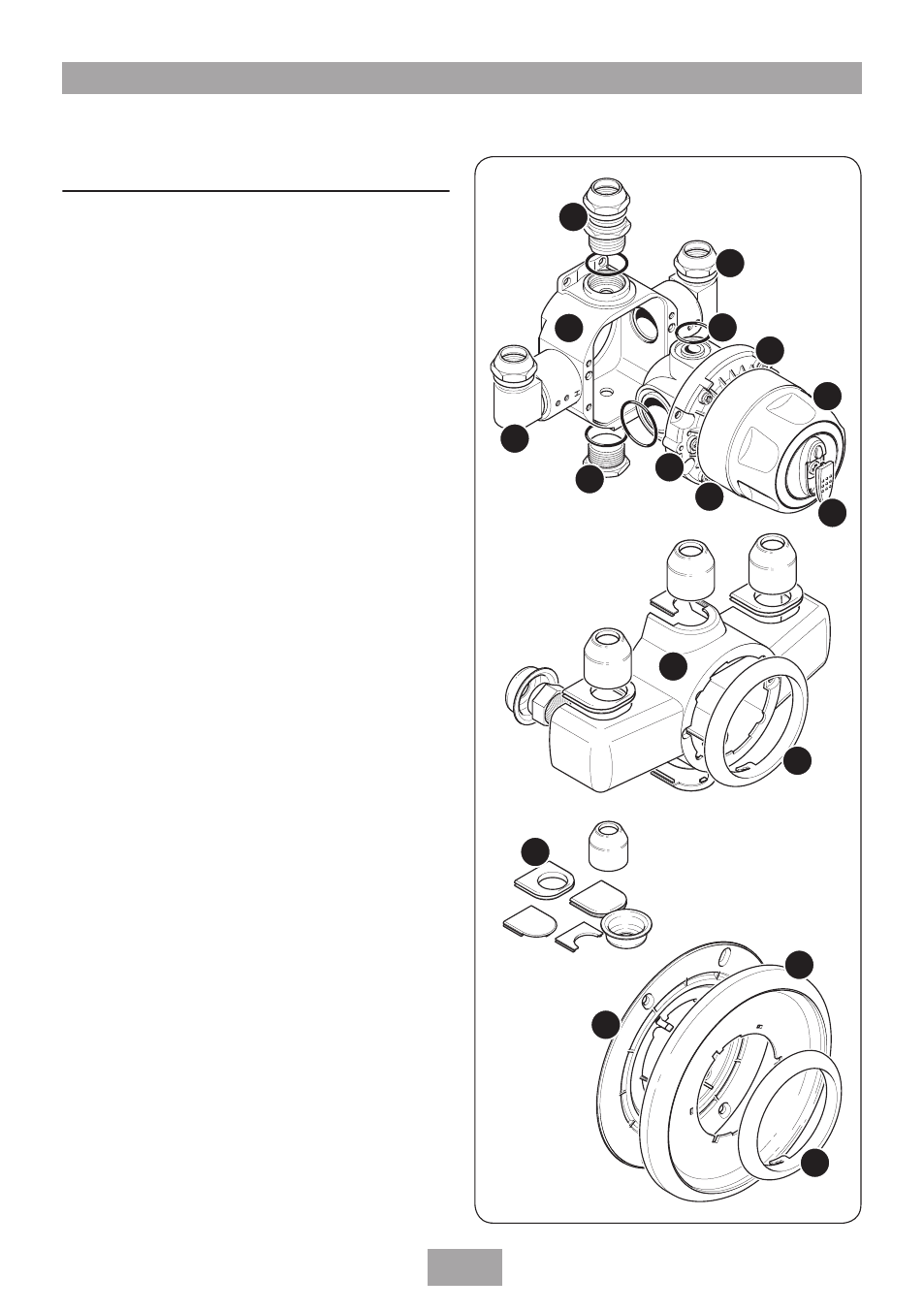

SPARE PARTS
SPARE PARTS
Ref. Description Part No.
3
2
4
4
5
6
2
8
7
1
6
9
10
11
12
10
13
