System Operation
3-93 GNS-X L Flight Management System
Rev. 0
Oct/96
will change to reflect the
Identifier chosen by the
system. (Figure 3-151)
NOTE: No prompt is dis-
played adjacent to the
IDENT field when system is
in AUTO TUNE mode.
5. FREQ, RANGE and
BRG - CHECK that the
FREQ of the control
head and CDU display
agree and that range
and bearing are reasonable.
TRANSPONDER AND ADF KEYBOARD TUNE
1. TUNE Key - DEPRESS to display the page with XPDR and ADF.
2. Line Select Key - DEPRESS to position the cursor over the
desired code or frequen-
cy field. (Figure 3-152)
3. Code or Frequency -
INSERT and verify new
value.(Figure 3-153)
4. ENT Key - DEPRESS.
(MAN) field disappears
indicating radios have
been keyboard tuned.
Verify the code or fre-
quency changes on
CDU and control head
displays.
NOTE: (MAN) adjacent to
ADF or XPDR indicates that
the frequency or code has
been entered manually from
the control head.
NAV 1 MZB
FREQ 117.80
RANGE 74.9
BRG 204
NAV 2 TNP
FREQ (MAN) 114.20
PRESET 35.0
BRG 035
TUNE 2/3
>
>

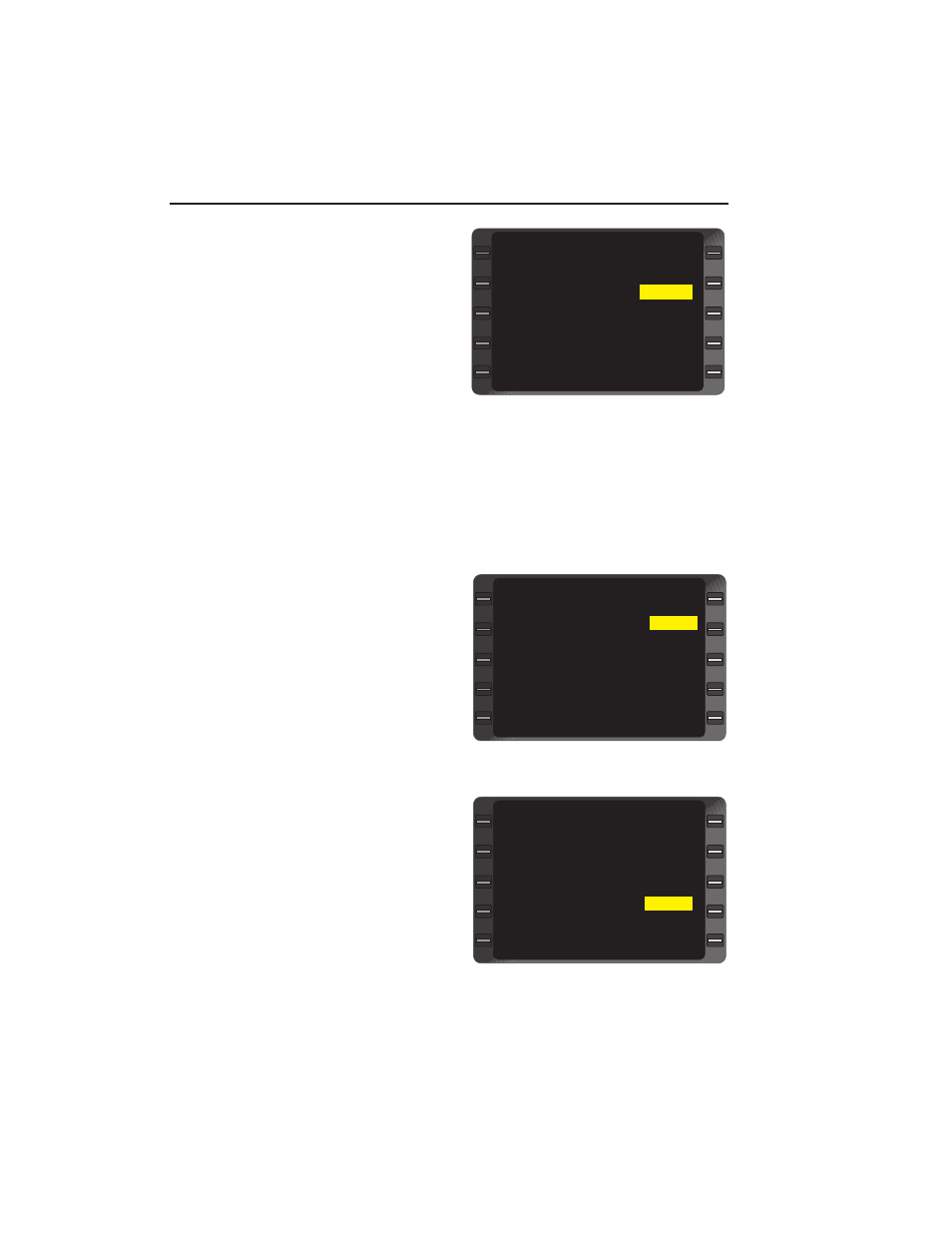

Figure 3-151
XPDR (MAN) -----
ADF (MAN) -----
TUNE 3/3
>
>
>
Figure 3-152
XPDR (MAN) -----
ADF (MAN) 300.0
TUNE 3/3
>
>
>
Figure 3-153
