If there are no STARs associated with the Arrival Airport, the mes-
sage “NO STARS AVAILABLE” appears and the arrival airport ident
field flashes. Depress FPL Key to return to ACTIVE FLIGHT PLAN.
4. NXT Key - DEPRESS to view waypoints on subsequent pages if
desired.
5. Line Select Key -
DEPRESS to position
cursor over the desired
TRANSITION. (Figure
3-45)
6. ENT Key - DEPRESS to
select TRANSITION.
NOTE: The STAR field
turns yellow and the cursor is
over the first identifier on the
STAR list.
7. Line Select Key -
DEPRESS to position
cursor over the desired
STAR. See Figure 3-46.
8. ENT Key - DE-PRESS
to select STAR.
NOTE: If the STAR and
TRANSITION are runway
dependent, and a runway
has not prefilled, the cursor
moves to the first RUNWAY
identifier on the runway list and the runway field is displayed in yel-
low. If a runway is not required, proceed to Step 11.
9. Line Select Key - DEPRESS to position cursor over the desired
RUNWAY on the runway list.
10. ENT Key - DEPRESS to select RUNWAY.
RUNWAY -----
TRANSITION -----
STAR -----
MALIT ELKEY
ROSIN RZS
AVE ? VTU
DERBB
DINTY
MUDDE
ARRIVAL KLAX 2/2
> <
<
<
>
>
>
>

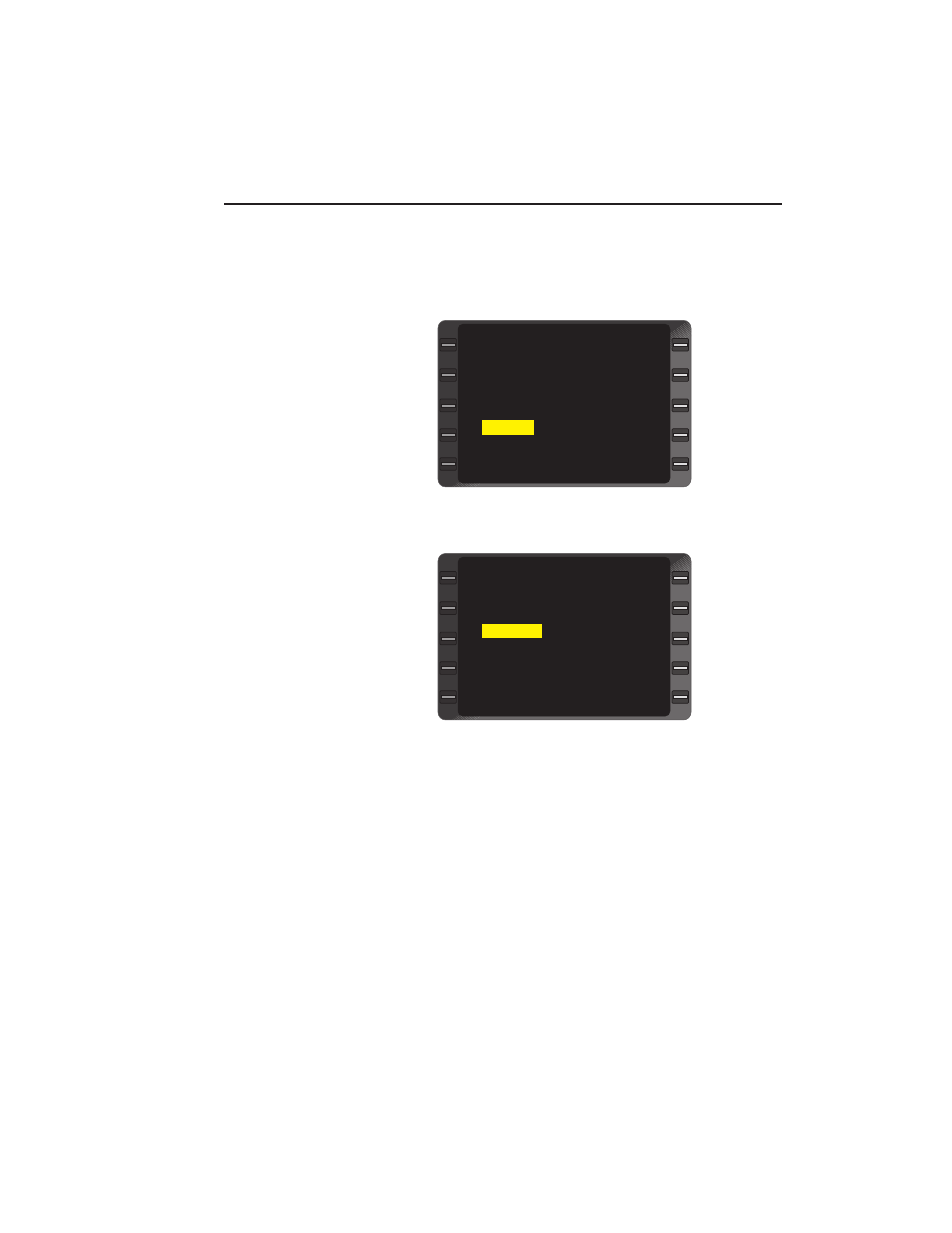

Figure 3-45
RUNWAY -----
TRANSITION AVE
STAR -----
MOOR3 ?
SADDE4
ARRIVAL KLAX 1/1
>
>
Figure 3-46
