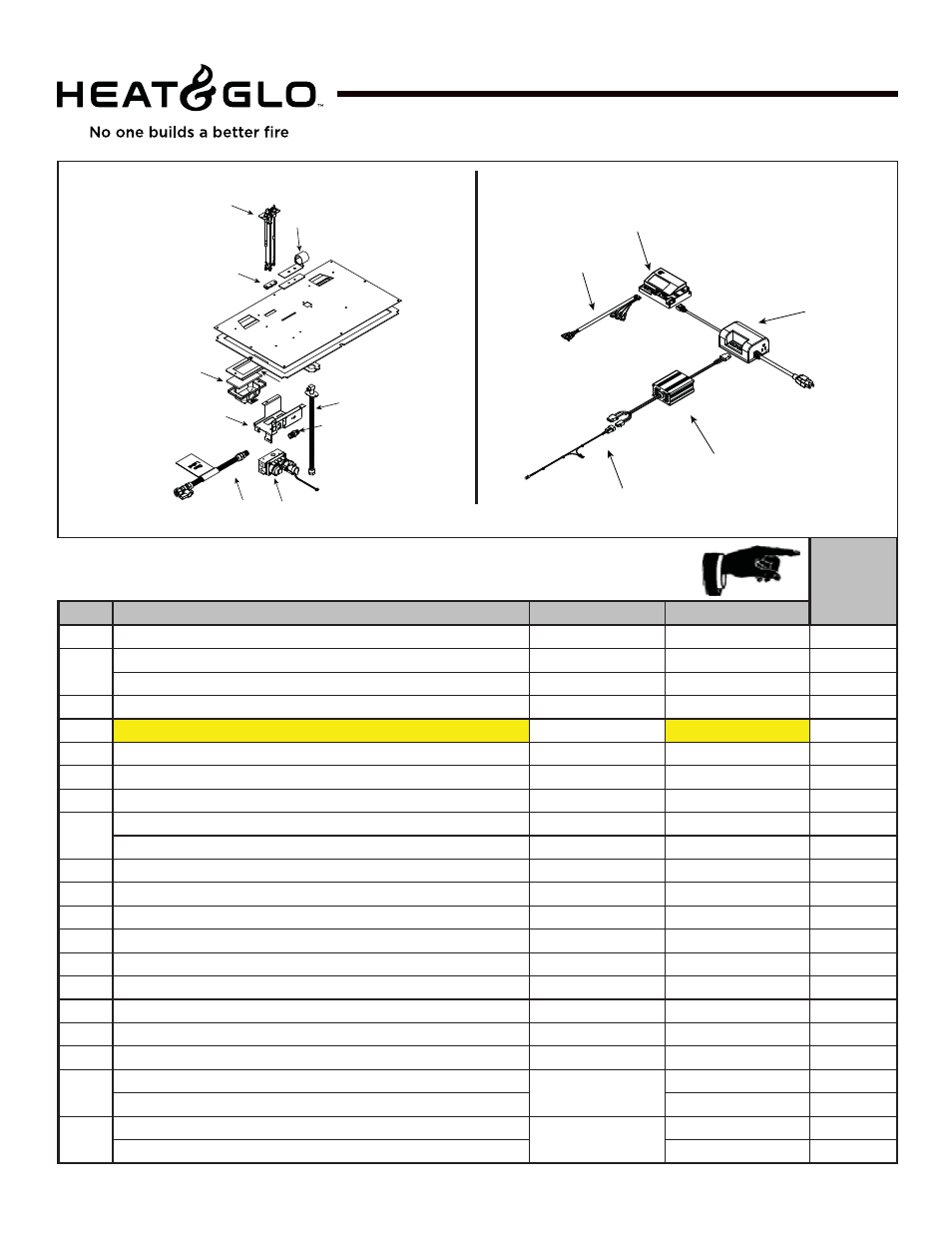

Service Parts
Beginning Manufacturing Date: Aug 2009
Ending Manufacturing Date: Active
18.1
18.2
18.10
18.3
18.4
18.8
18.7
18.5
18.6
18.9
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
18.1 Shutter Bracket Assembly 2166-157 Y
18.2
Pilot Assembly, NG 2166-370 Y
Pilot Assembly, LP 2166-371 Y
Pilot Tube SRV485-301 Y
18.3 3-Hole Grommet 2118-420
18.4 Glass, 1/4 " Qty 2 req 2166-163 Y
18.5 Valve Bracket 2118-104
18.6 Flex Ball Valve Assembly 302-320A Y
18.7
Valve, NG 2166-302 Y
Valve, LP 2166-303 Y
18.8 Male Connector Pkg of 5 303-315/5 Y
18.9 Bulkhead W/Flex tube 2166-119 Y
18.10 Kapton Lens Qty 2 req 2166-171 Y
19 Control Assembly
19.1 Module 2166-307 Y
19.2 Wire Harness 2166-304 Y
19.3 Wire Harness 2 Gang 2165-190 Y
19.4 LED Controller 2166-336 Y
19.5 RC300 AUX 2166-335 Y
Orifi ce, NG #33C
6000CL-IPI
582-833 Y
Orifi ce, LP #51C 582-851 Y
Orifi ce, NG #31C
8000CL-IPI
582-831 Y
Orifi ce, LP #49C 582-849 Y
Additional service part numbers on following page.
19.1
19.2
19.3
19.4
19.5
#18 Valve Assembly
#19 Control Assembly
6000CL-IPI, 8000CL-IPI
