27
Heat & Glo • 6000CL-IPI-S, 6000CL-IPI-T, 8000CL-IPI-S 8000CL-IPI-T • 2165-900 Rev. S • 9/12
INSTALLED
HORIZONTALLY
H
1
H
2
V
1

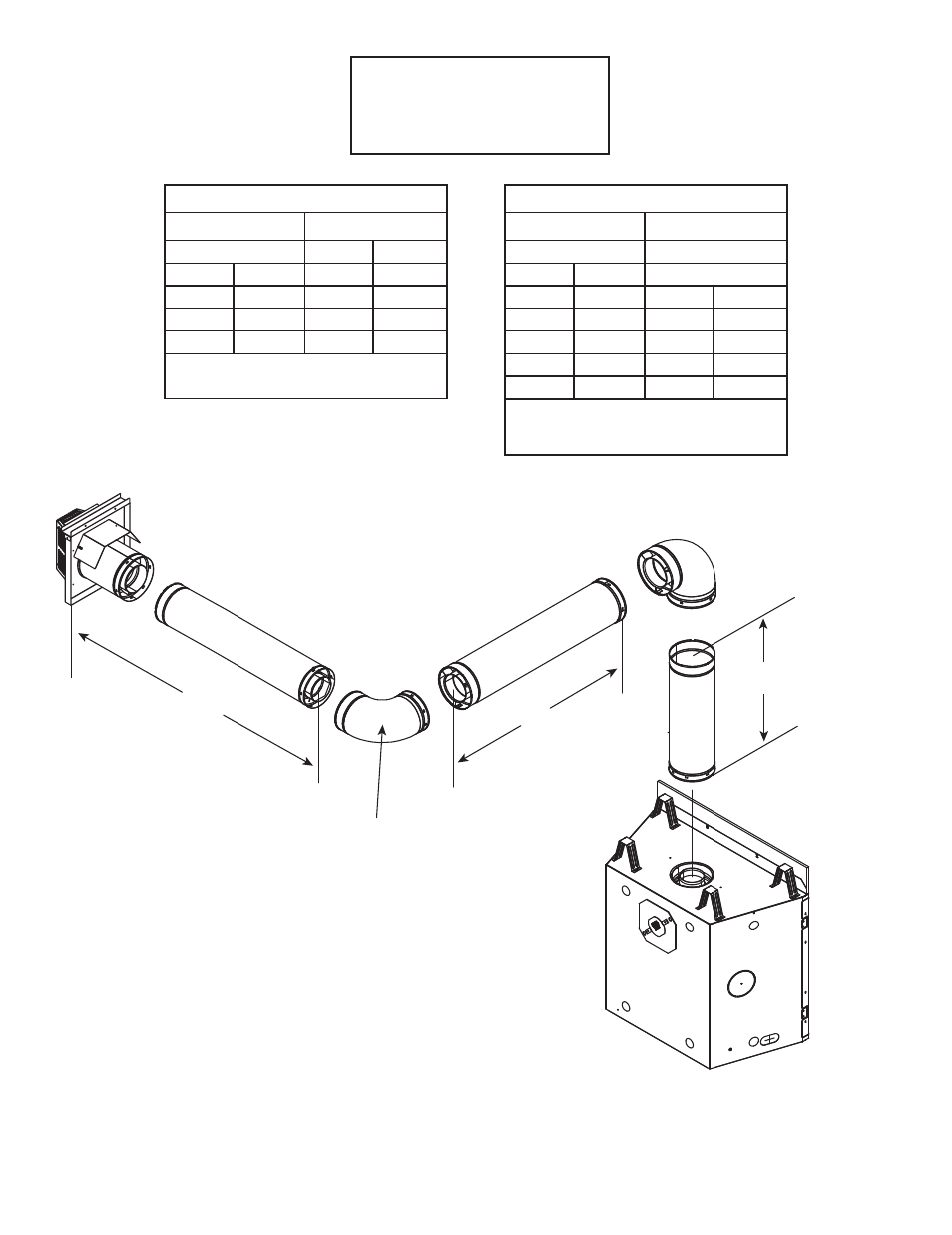

Figure 7.4
Two Elbows
Note: For corner installations: A 6 inch
(152 mm) section of straight pipe may
need to be attached to the appliance
before a 90º elbow, to allow the vent
pipe to clear the top standoffs.
6000CL
V
1
Minimum H
1
+ H
2
Maximum
Elbow only 1 ft. 305 mm
6 in. 152 mm 4 ft. 1.2 m
1 ft. 305 mm 11 ft. 3.4 mm
1.5 ft. 457 mm 18 ft. 5.5 m
2 ft. 610 mm 24 ft. 7.3 m
V
1
+ H
1
+ H
2
= 40 ft. (12.2 m) Maximum
H
1
+ H
2
= 24 ft. (7.3 m) Maximum
8000CL
V
1
Minimum H
1
+ H
2
Maximum
Elbow only Not allowed
6 in. 152 mm Not allowed
1 ft. 305 mm 2 ft. 610 mm
1.5 ft. 457 mm 6 ft. 1.8 m
2 ft. 610 mm 11 ft. 3.4 m
2.5 ft. 762 mm 18 ft. 5.5 m
3 ft. 914 mm 24 ft. 7.3 m
V
1
+ H
1
+ H
2
= 40 ft. (12.2 m) Maximum
H
1
+ H
2
= 24 ft. (7.3 m) Maximum
V
1
= 1 ft. (305 mm) Minimum
