29
Heat & Glo • 6000CL-IPI-S, 6000CL-IPI-T, 8000CL-IPI-S 8000CL-IPI-T • 2165-900 Rev. S • 9/12
FLUE
RESTRICTOR
TOP
REFRACTORY

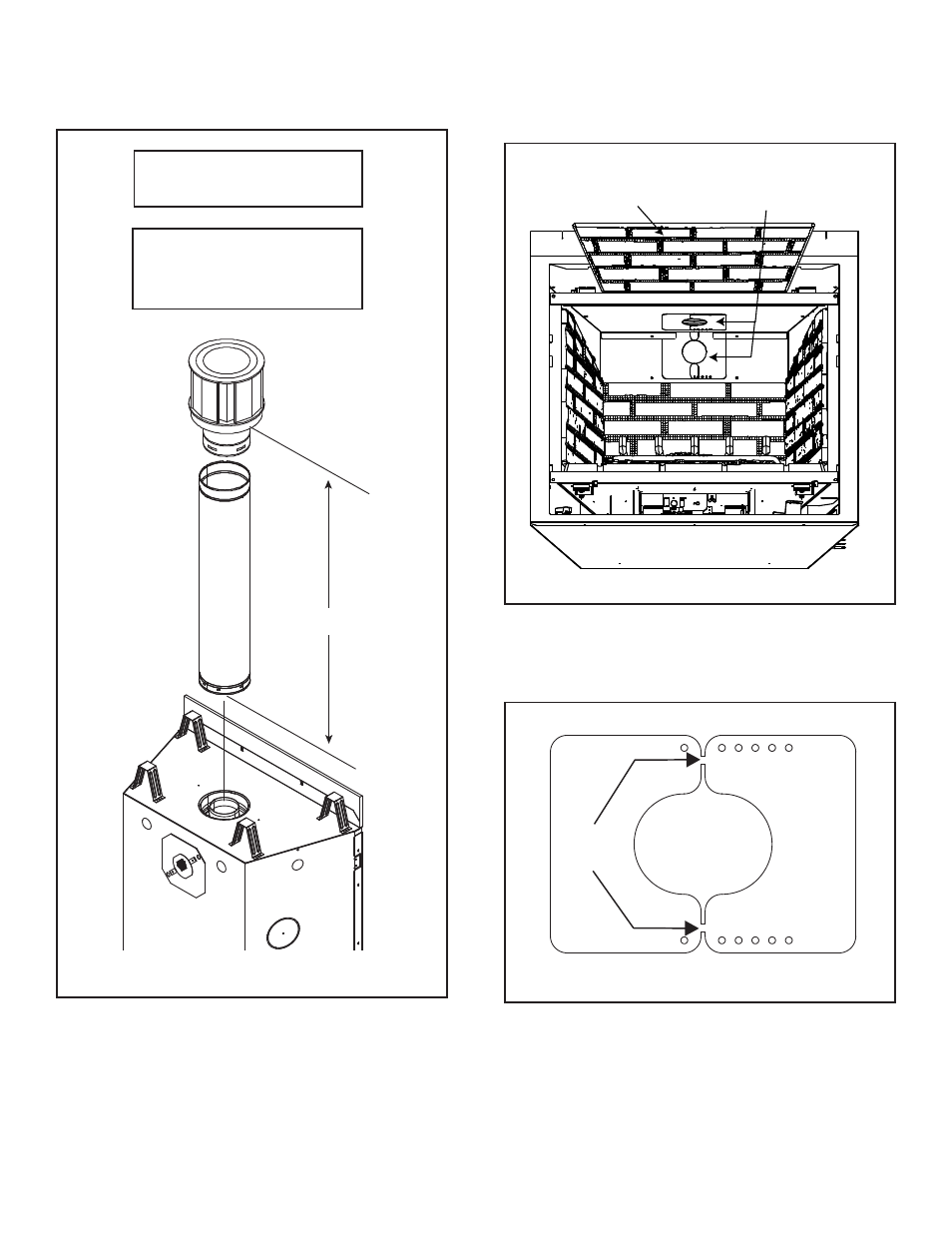

Top Vent - Vertical Termination
No Elbow
Figure 7.6
Note: If installing a vertical vent/
termination off the top of the appli-
ance, the flue restrictor should be
used. See Figure 7.9.
V
1
V
1
= 40 ft. Max. (12.4 m)
V
1
= 3 ft. Min. (914 mm)
Figure 7.8 Flue Restrictor
2. Break the flue restrictor into two pieces. Do this by
bending the part back and forth until it breaks (see
Figure 7.8).
Figure 7.7
BREAK
HERE
Flue Restrictor Instructions
1. Remove the top piece of refractory, if already installed.
See Figure 7.7.
