A. Remove Fixed Glass Assembly
See Section 14.I.
B. Remove the Shipping Materials
Remove shipping materials from inside or underneath the
firebox.
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the firebox or underneath in the control cavity.
D. Accessories
Install approved accessories per instructions included
with accessories. Contact your dealer for a list of ap-
proved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
14
Appliance Setup
E. Burner Top Installation
1. Bend the two tabs upward as shown in Figure 14.1.
2. To install the fiber burner, mate the locating holes with
the guide sleeves. Install fiber burner top so that it
makes full contact with the underlying burner assem-
bly.
3. Ensure that the ports in the steel burner are visible
through the holes in the fiber burner top.

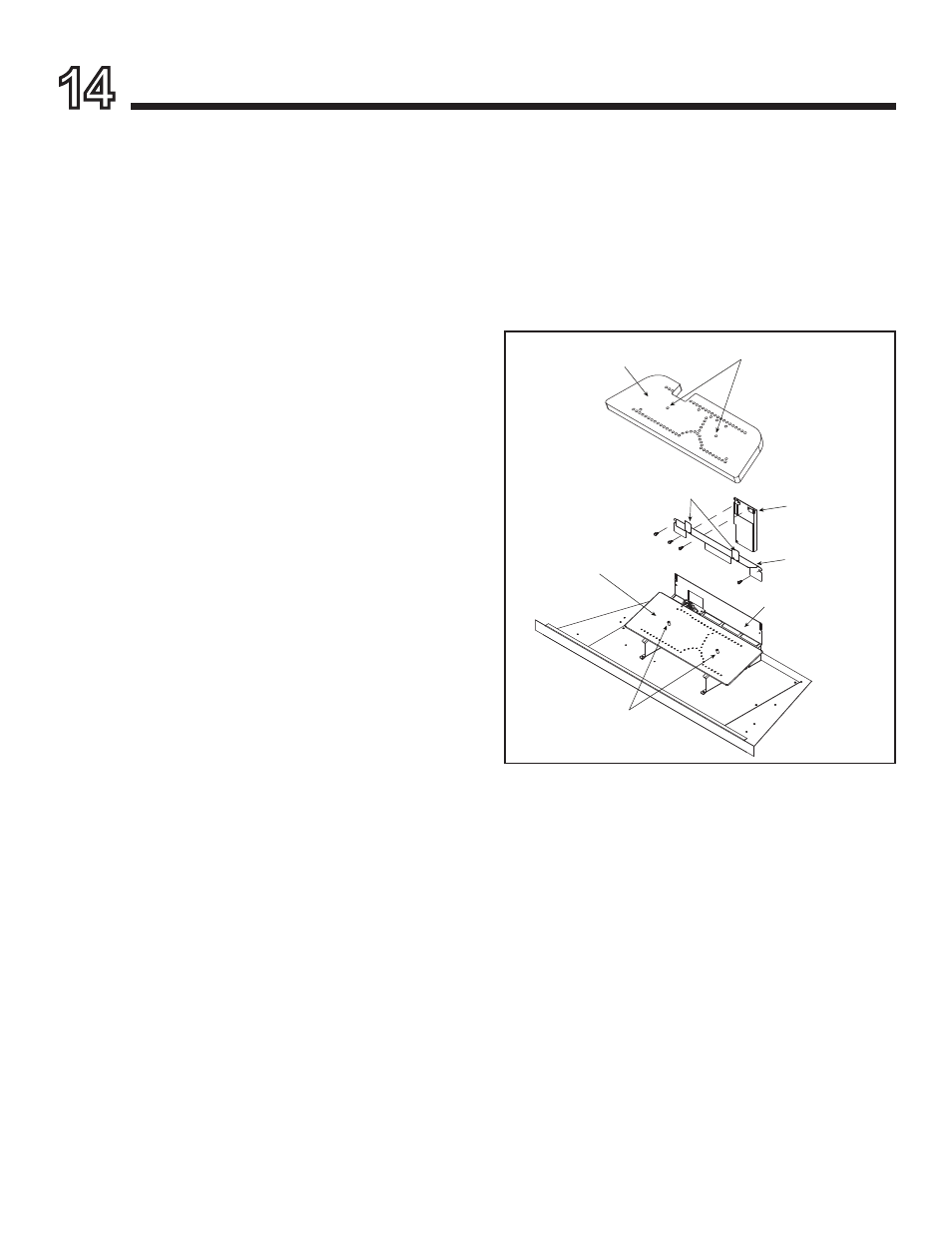

Figure 14.1
GUIDE SLEEVES
FIBER BURNER TOP
BURNER ASSEMBLY
PILOT COVER
LOCATING HOLES
BURNER SHIELD
AIR SCOOP
BEND TABS UP

