Heat & Glo • 6000CL-IPI-S, 6000CL-IPI-T, 8000CL-IPI-S 8000CL-IPI-T • 2165-900 Rev. S • 9/12
16

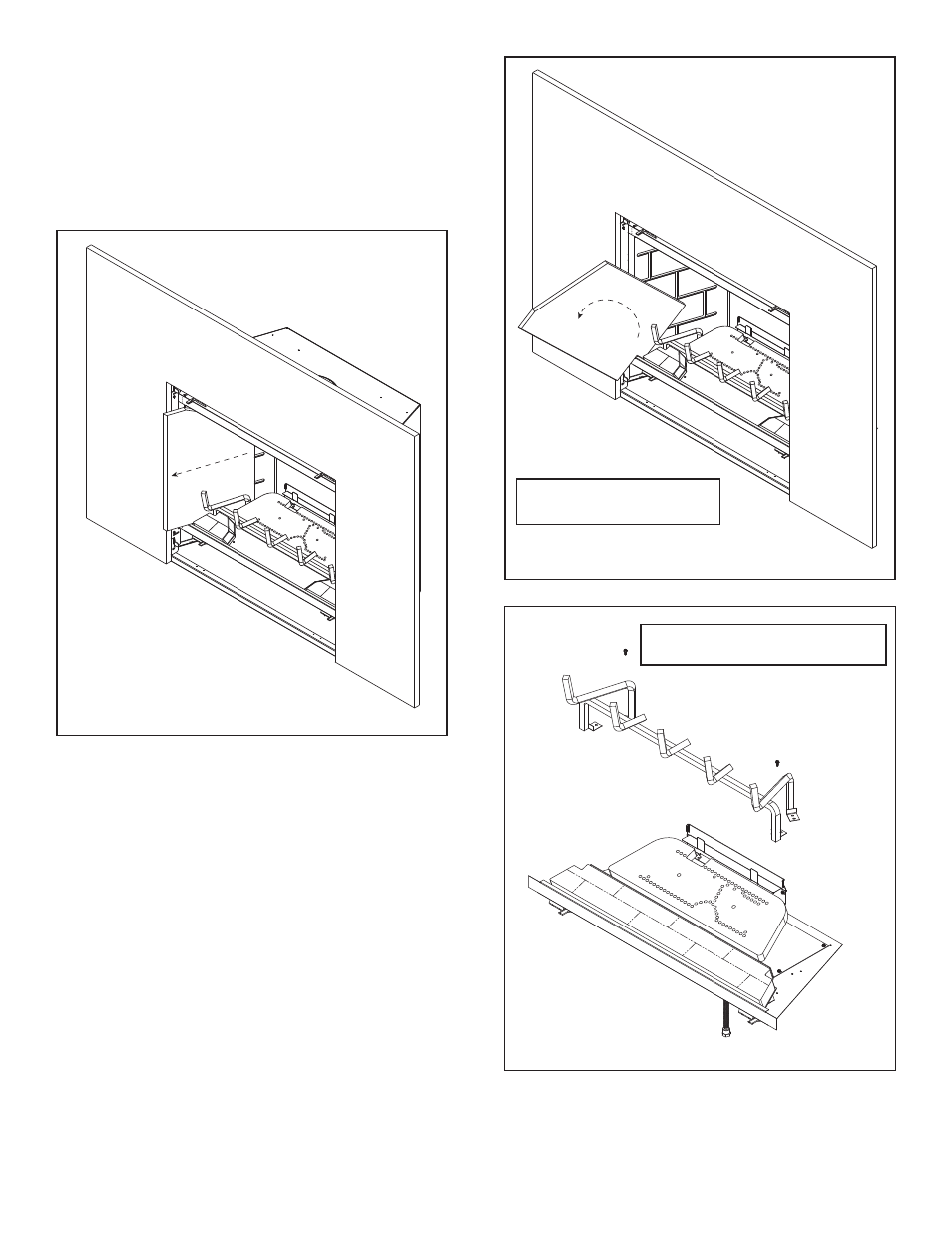

Figure 3.3 Side Refractory Removal
C. Refractory, Grate and Valve Assembly
Removal
It may become necessary to remove the refractory, grate
and valve assemblies. This task should be performed by
a qualified service technician. The refractory, grate and
base refractory do not need to be removed to service the
burner assembly.
Figure 3.4 Grate Removal
Figure 3.2 Side Refractory Removal
Note: The refractory must be removed
before removing the grate.
To remove the top refractory panel, lift the top refractory
panel up using both hands, slide it forward as much as
possible and carefully lower it.
To remove the side refractory panels, slide the panel for-
ward as shown in Figure 3.2. Rotate the panels and re-
move as shown in Figure 3.3. Remove the back refractory
panel by lifting it over the burner assembly.
NOTICE: Remove refractory before removing grate. If
grate is removed first, damage to refractory will occur.
Note: Refractory is Fragile.
Handle with care.
